Forensics Analysis of WiFi Keylogger Implant:
<Below the entire thread>
<Below the entire thread>
Main components:

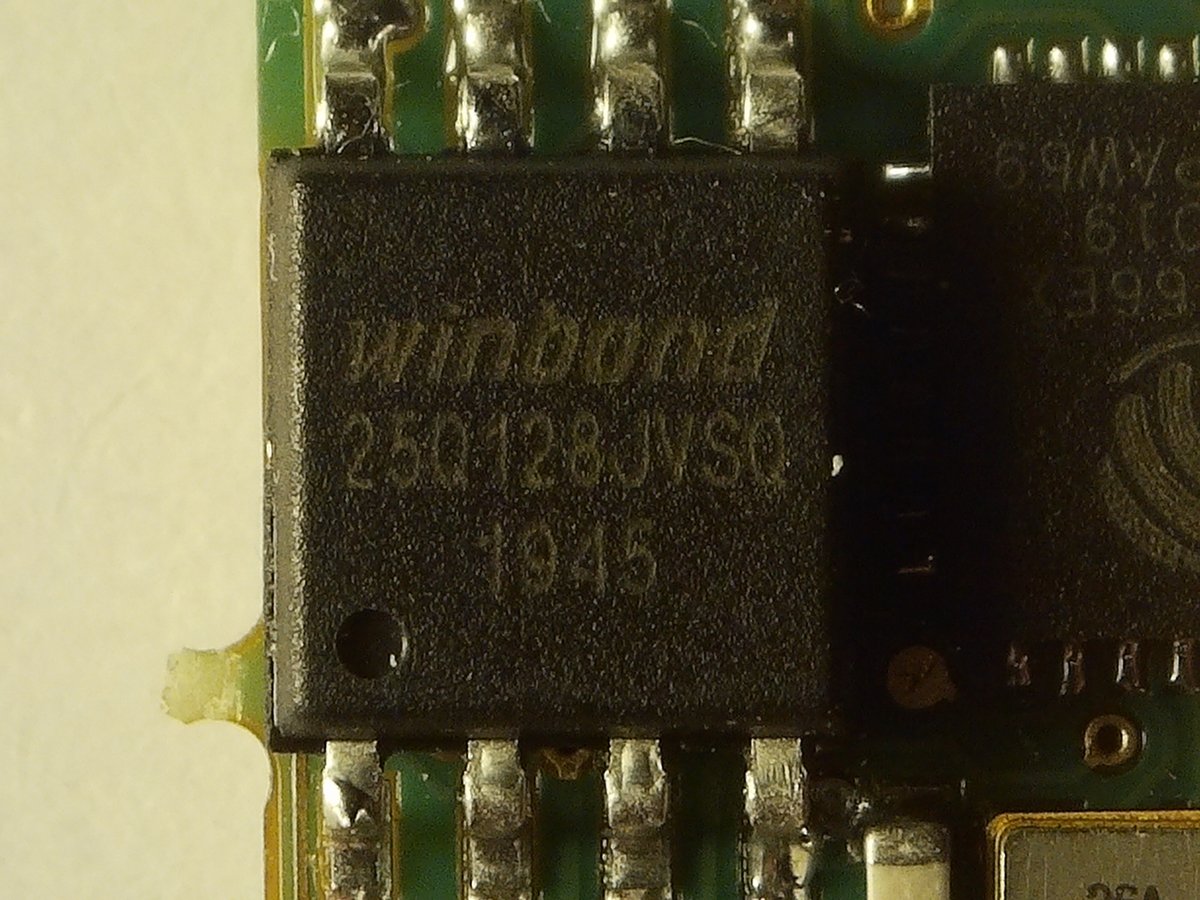

SPI 128Mbit Flash 25q128jvsq (Contains the ESP8266EX FW and stores all the interesting artifacts)
winbond.com/resource-files…
SPI 128Mbit Flash 25q128jvsq (Contains the ESP8266EX FW and stores all the interesting artifacts)
winbond.com/resource-files…
WiFi Chipset ESP8266EX (Used for the WiFi AP/Client and the WebUI for the remote control)
espressif.com/sites/default/…
(ESP8266EX uses external SPI flash to store user programs, and supports up to 16 MB memory capacity theoretically)
espressif.com/sites/default/…
(ESP8266EX uses external SPI flash to store user programs, and supports up to 16 MB memory capacity theoretically)
FPGA Altera 5M160ZE64C5N (Used to passively sniff the USB bus and re-assemble Keystrokes' HID packets) mouser.it/datasheet/2/61…
I am a bit biased... I know... But #FocacciaBoard is such a simple but PITA-saver when is matter of dealing with dupont wires or SOP8/16. ❤️
What's #FocacciaBoard?
A multipurpose breakout board to hack IoT hardware in a clean and easy way! 🍕🇮🇹
A multipurpose breakout board to hack IoT hardware in a clean and easy way! 🍕🇮🇹
