This shot clearly depicts something that happened throughout the city - the initial blast overpressure shattering storefronts, a negative phase pulling the glass out of the structure onto the street and then several reflected shocks moving thru the dense urban areas.💔🇱🇧

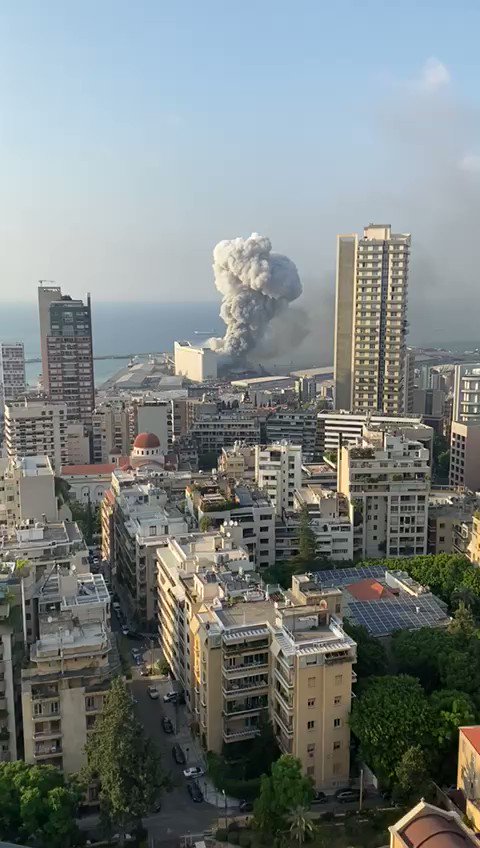

HD video of the warehouse exploding in #Beruit. Fires involving energetic materials can transition to much more destructive reactions - 2 destinct events are notable,
(1) a smaller, but powerful detonation which causes a blinding flash followed by (2) a massive explosion-produced fireball that emerges out of the wharehouse
A focusing distortion is then visible as the smaller detonation shock ‘taps’ the camera. This is followed by the city being enveloped in a massive overpressure shock front from the rapid decomposition of the AN. Finally the camera is displaced by the 2nd massive shock front.
AN can react explosively under 2 basic conditions - heat & confinement or when subject to a detonation shock. This video clearly shows the smaller initiating detonation (bright flash) that caused the massive AN decomposition explosion.
The initiating detonation and subsequent AN decomposition are evident here as the bride turns & the glass begins to vibrate from the arrival of the smaller, higher velocity shock front ahead of the massive AN explosion. #Beruit
Video (with sound) of what could be fireworks popping off in the north end of the warehouse. #Beruit
Commercial-grade fireworks (HD 1.3) stored in confinement can mass detonate in fire. via @YouTube
The pyrotechnic explosions intensify in the north end of the warehouse just prior to the catrophic explosion. Again, the video sound picks up an initial smaller event (start of rumble) ~2 sec. prior to the arrival of the massive shock front. #Beruit
These frames show the (1) the pyrotechnic fire intensify in the north end of the warehouse (2) a detonation occur in the same area, and (3) the explosive decomposition on the AN with a red nitrogen dioxide cloud displacing the white smoke from the ongoing fire.

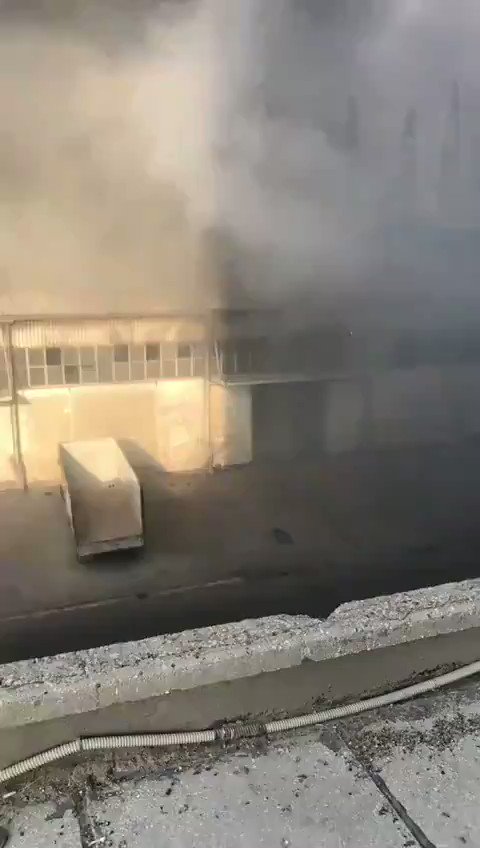

Video taken from the north end of the grain silo’s attached building. The person filming begins to back away as the pyrotechnic explosions intensify; is knocked back by the initial, smaller detonation; and finally the roar of the AN decomposition.

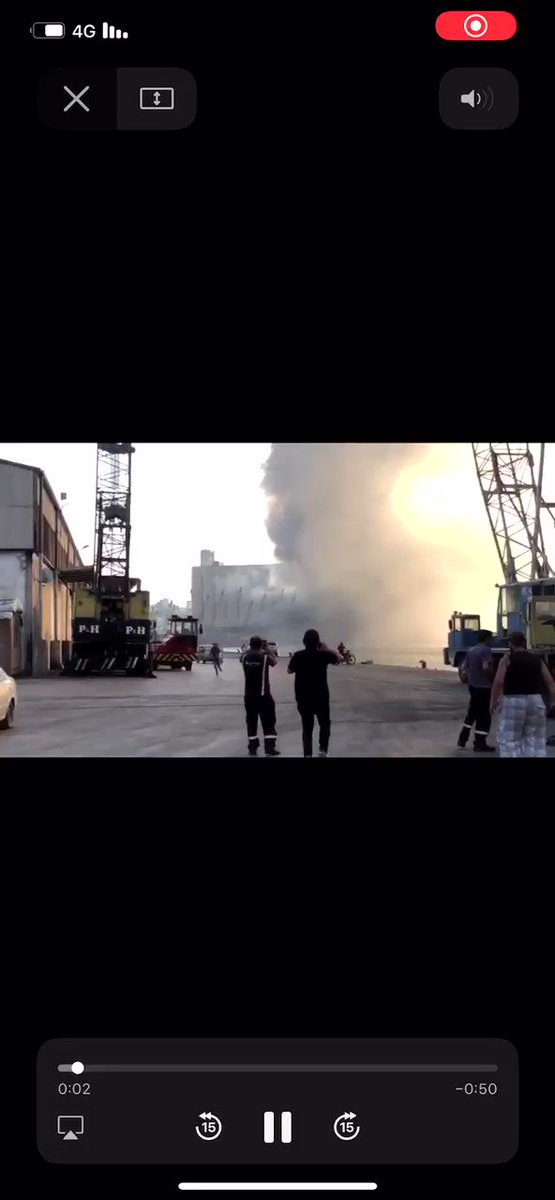

Ground video taken the waterfront 470m to the NE of the warehouse. The pyrotechnic explosions accelerate to a detonation. Workers turn away from the initial blast and are overtaken by the AN decomposition.
Ground video standing at the edge of the warehouse crater. #Beriut
Vehicles will sustain severe to light body/glass damage at scaled distances between 18W and 24W^.33ft. There’s blast focusing here between buildings, and the damage is heavy but not total. Using 20-22W^.33ft as a range, at 600m, an equiv TNT yield estimate is ~700K to 950K-lbs.
Vehicle sustains heavy glass damage (~16-18W^.33ft), airbags deploy, some displacement at 500m/1600ft on Helou hwy; TNT yield estimate 700K to 1M-lbs.
