Spring Vale Cemetery railway branched from the Dandenong line just past (down) Spring Vale station. Was ~ 1.2 miles (1.9 km) in length. Opened 1904 closed officially 1951. Sparked 1922.
Spring Vale was changed to Springvale 1955.

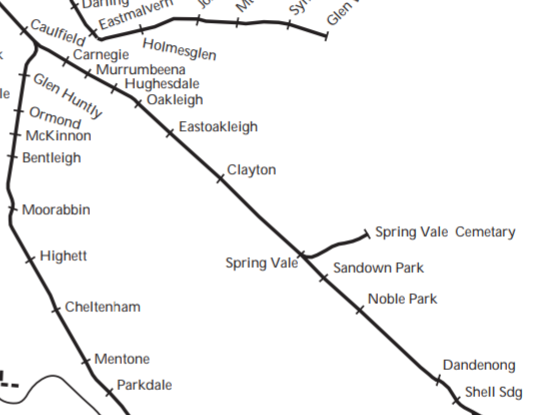

1930 network diagram
vrhistory.com/VRMaps/Vic1930…

Plan of the line
victorianrailways.net/signaling/comp…
The loop at the Cemetery was not built.

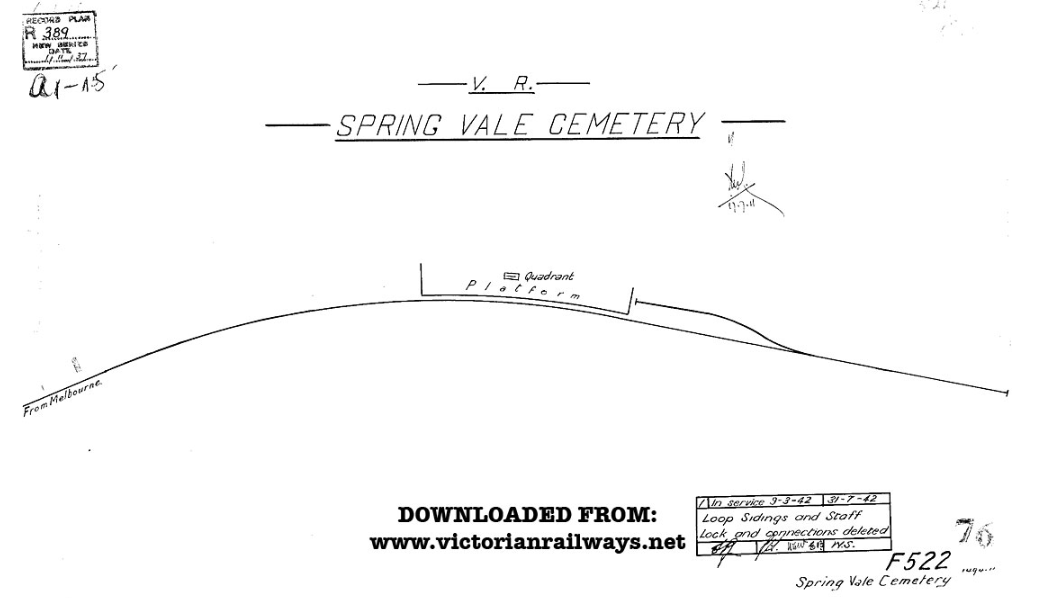

Diagram of the Spring Vale Cemetery station.
victorianrailways.net/signaling/comp…

The 1939 suburban timetable showed one return
trip being made on Sundays.

Four car electric train, Tait cars, at Springvale Cemetery platform, 1938
Buckland Collection
nla.gov.au/nla.obj-155000…

Springvale Cemetery Railway Station site 2012.

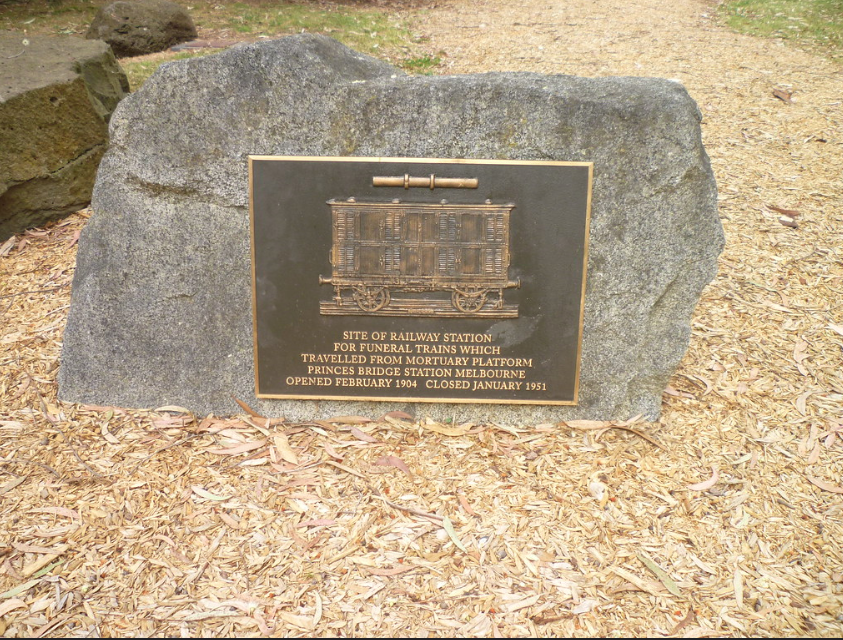

Commemorative plaque along Fourth Drive indicating site of former station. A strip of gum trees along the southern side of Fourth Drive indicates former station site and rail reserve in the area.
flickr.com/photos/8679213…

In June 1952 the line was dismantled. The Sandown Park racecourse and raceway now occupies part of the right
of way. A short section survived as a siding that branched off at the down end of the down line at Springvale.
facebook.com/Past2Present1/…

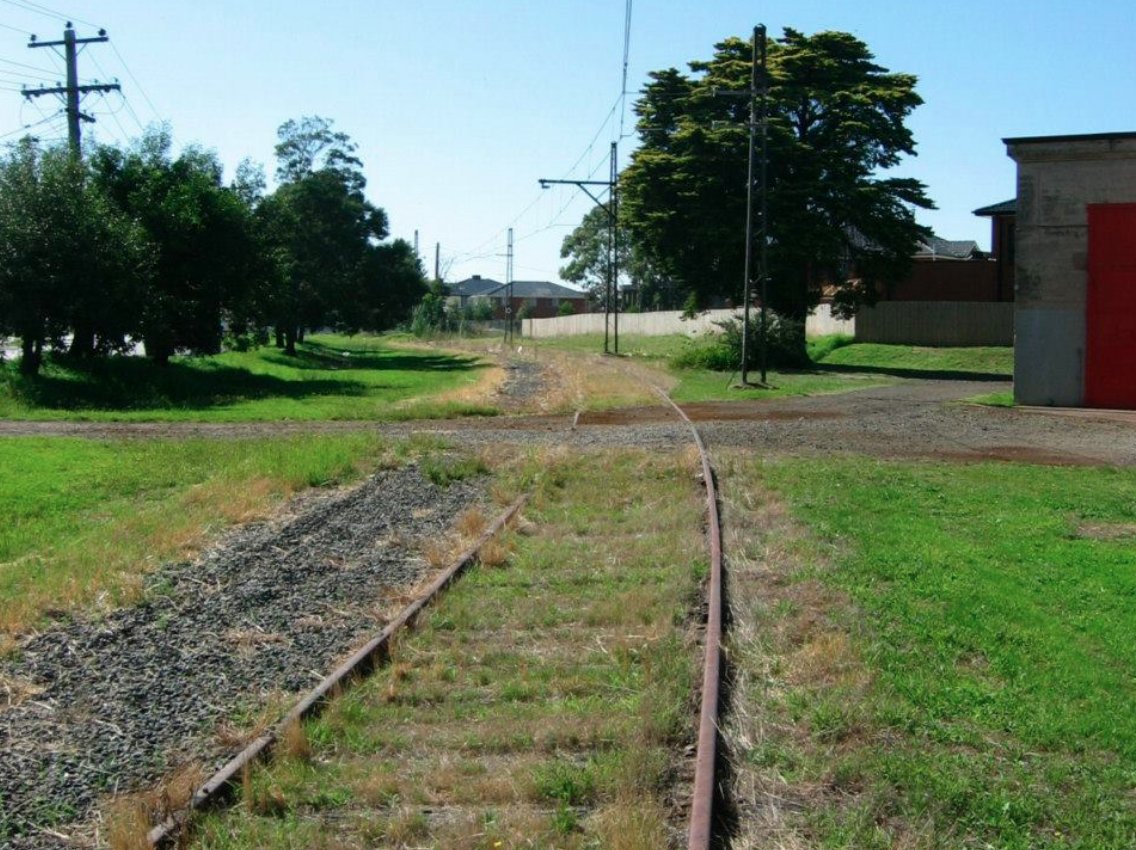

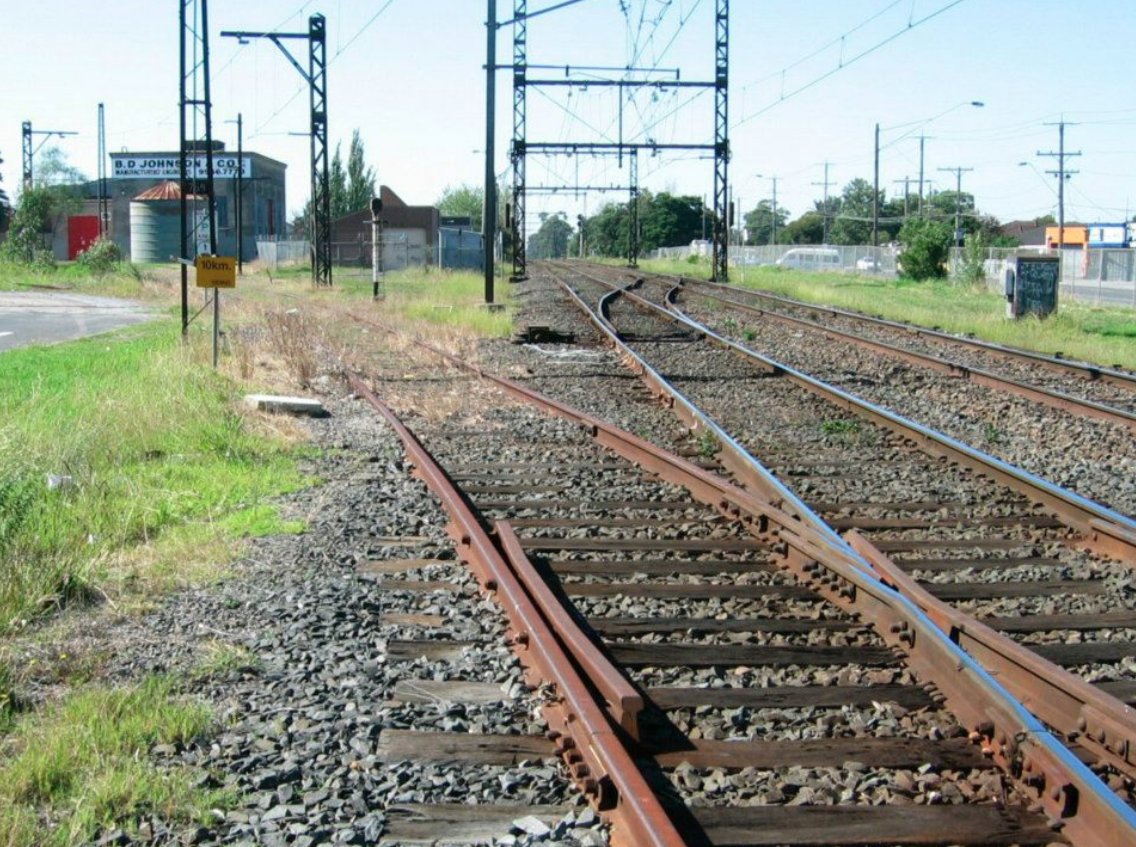

Part of the Spring Vale Cemetery line heading towards the highway.
facebook.com/Past2Present1/…

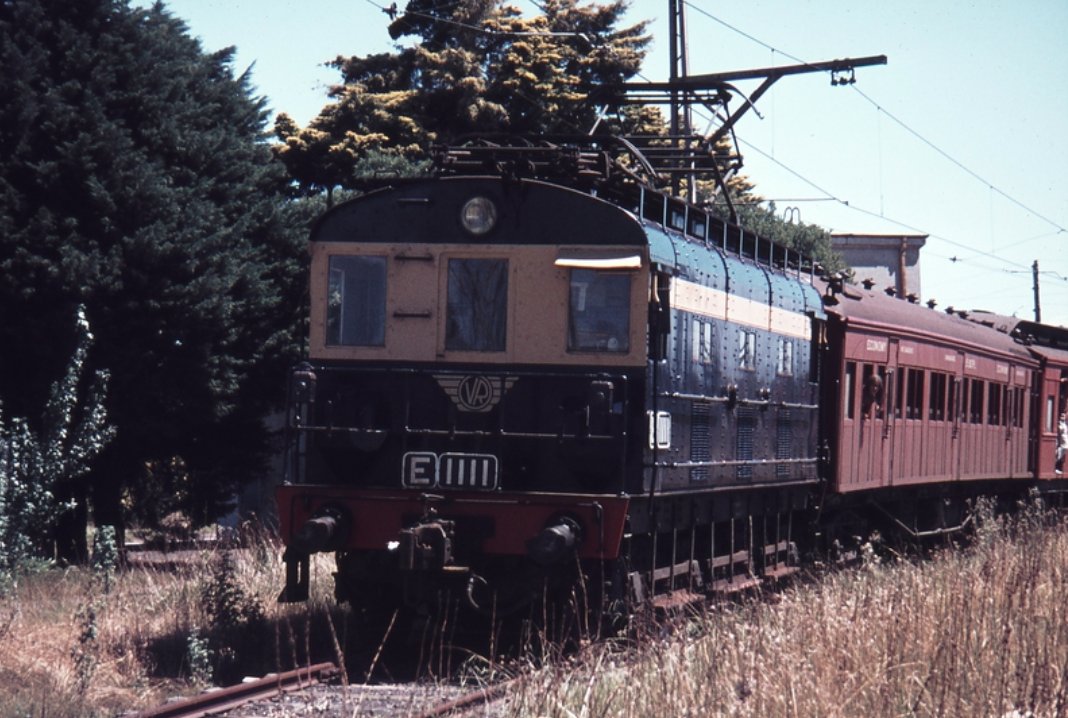

Springvale Rocla Siding Down ARE Special E 1111
Weston Langford 23 February 1974
westonlangford.com/images/photo/1…
This was part of the Spring Vale Cemetery line

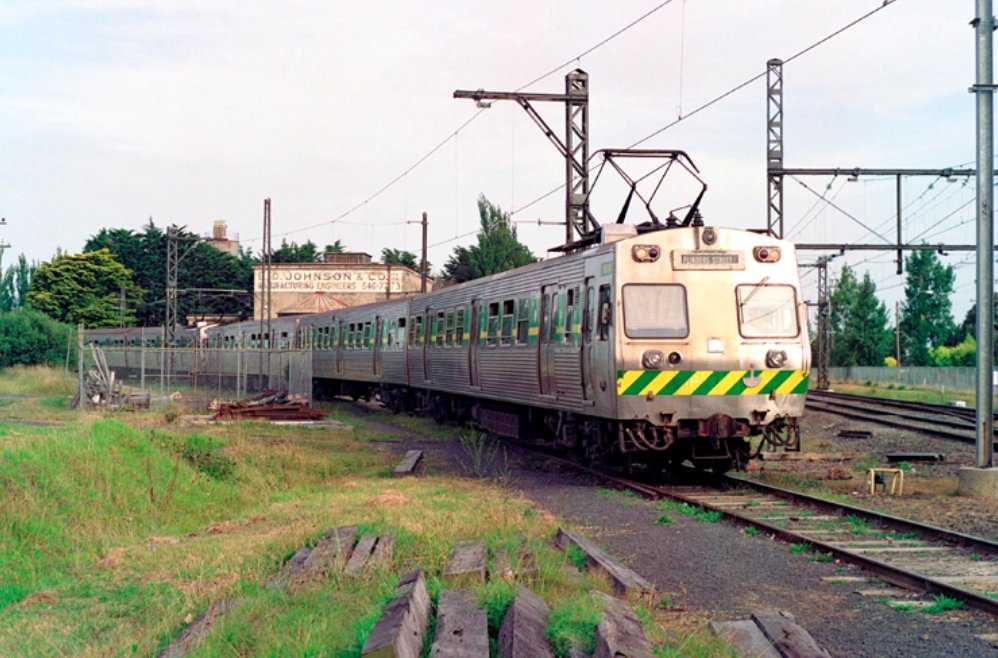

Hitachi set led by 118M terminates on the former cemetery siding at Springvale August 1991
Photo: Ian Green
vicsig.net/index.php?page…

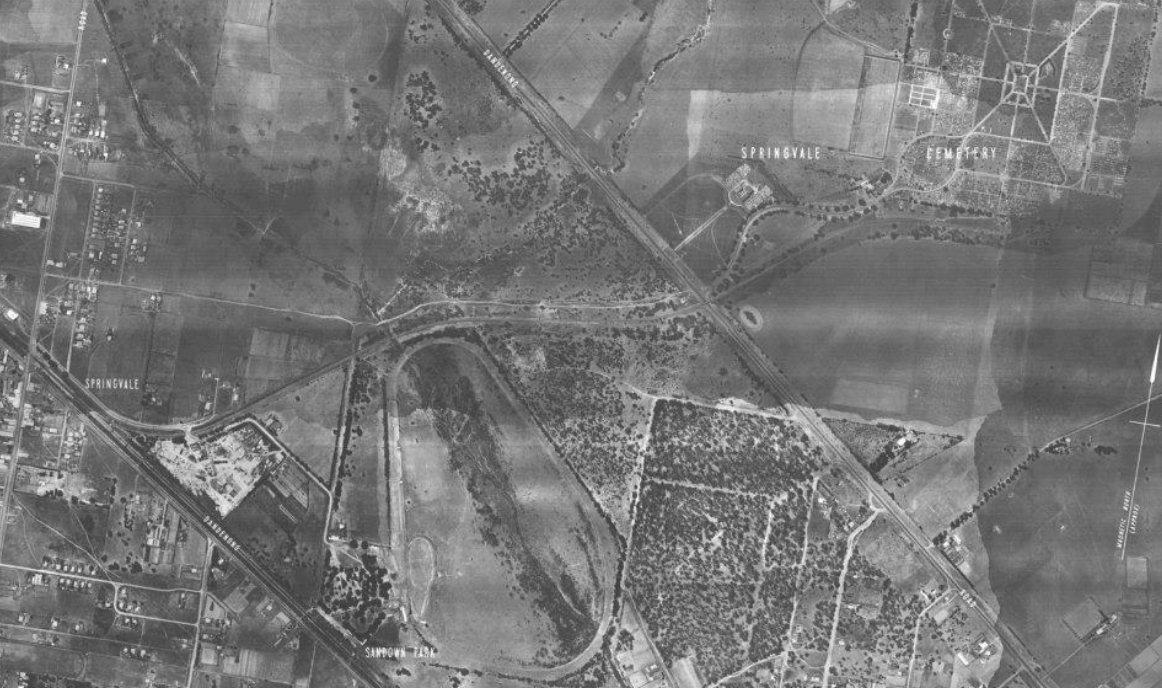

Aerial view of the Spring Vale Cemetery railway 1945
facebook.com/Past2Present1/…
Close examination of the photograph suggests the railway crossed the highway on a bridge - rail over road.

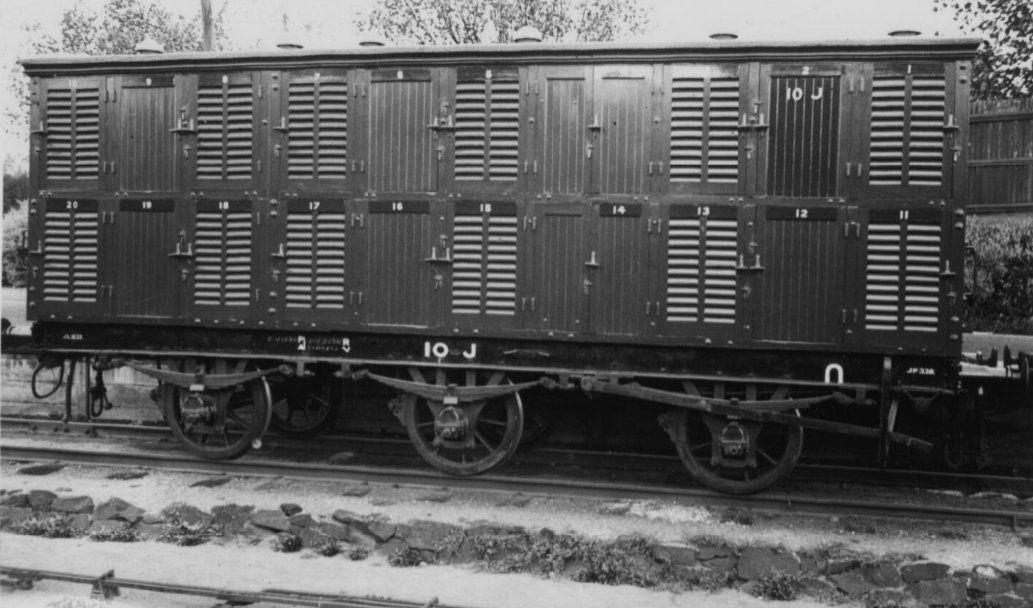

Mortuary van no. 10J at the Flinders Street dock, Melbourne, 1939
nla.gov.au/nla.obj-155000…

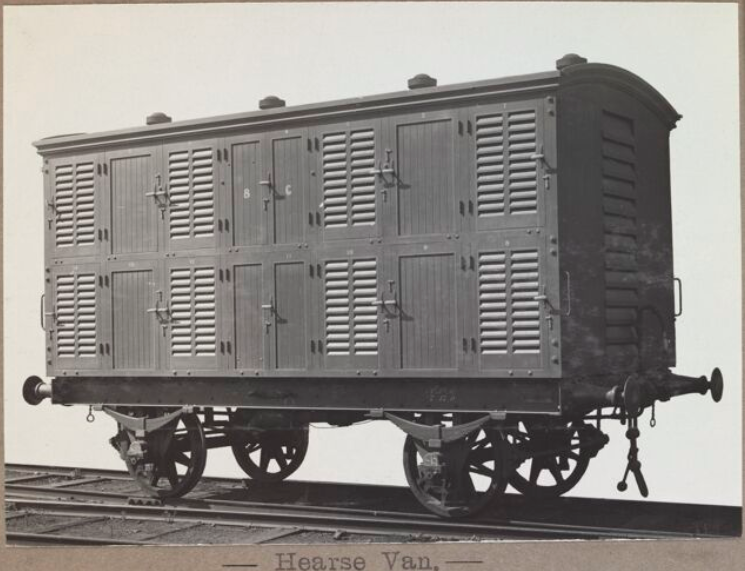

Hearse van viewer.slv.vic.gov.au/?entity=IE4989… via @Library_Vic
c. 1920
