🧵 Hotel and COVID-19 part 2.

You can find Part 1 here 👇 (still waiting for lab results - 1 more week).
@DavidElfstrom
This week, I stayed at an hotel and this time I came prepared.

Here are some observations about shared air, system type, filtration, and outside air rates.

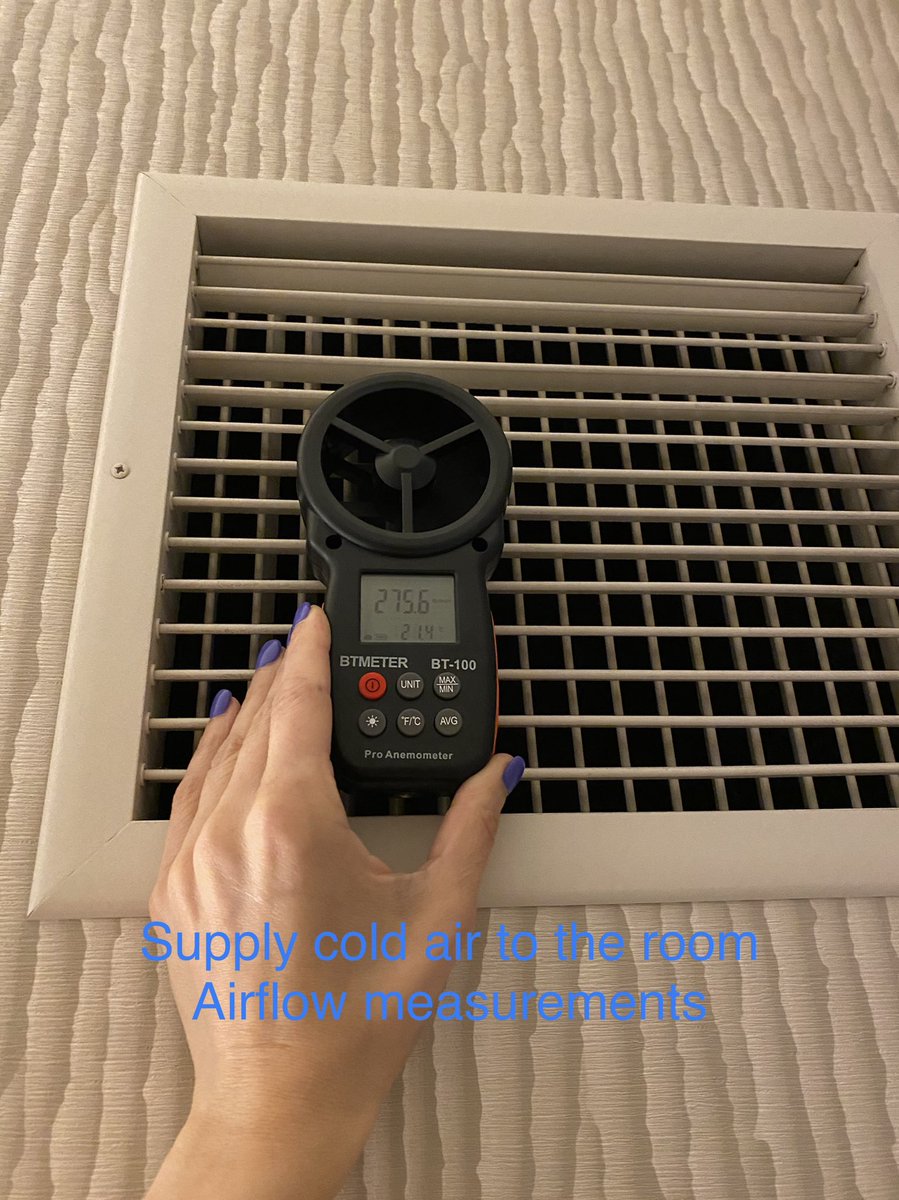

Air conditioning system type = fan coil unit = fan + filter + cooling and heating coil.

➡️This system does not introduce any outside air. It only filter the air in the room by recirculating it through a filter then a coil then supplying back to the room. ImageImage
This system does not share any air between rooms.
Air in your room stays in your room.

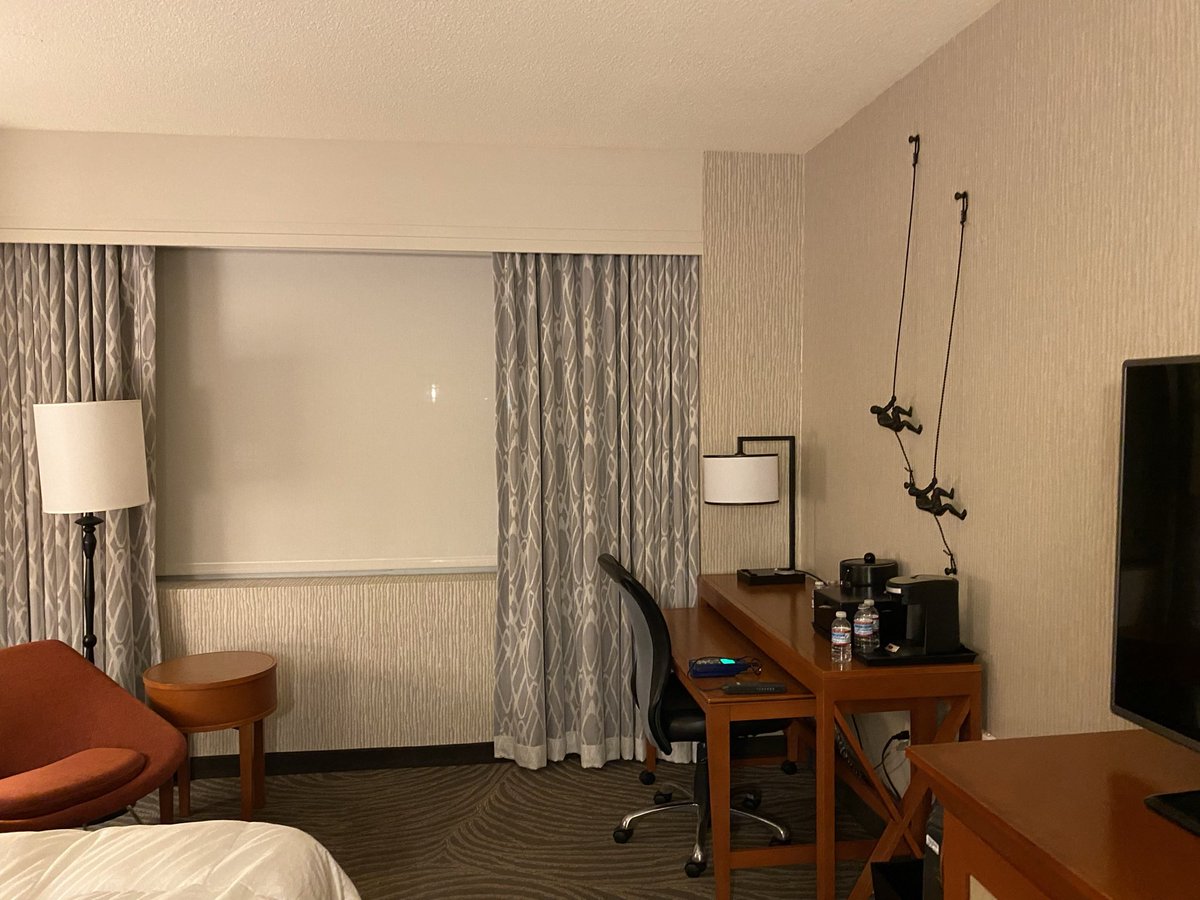

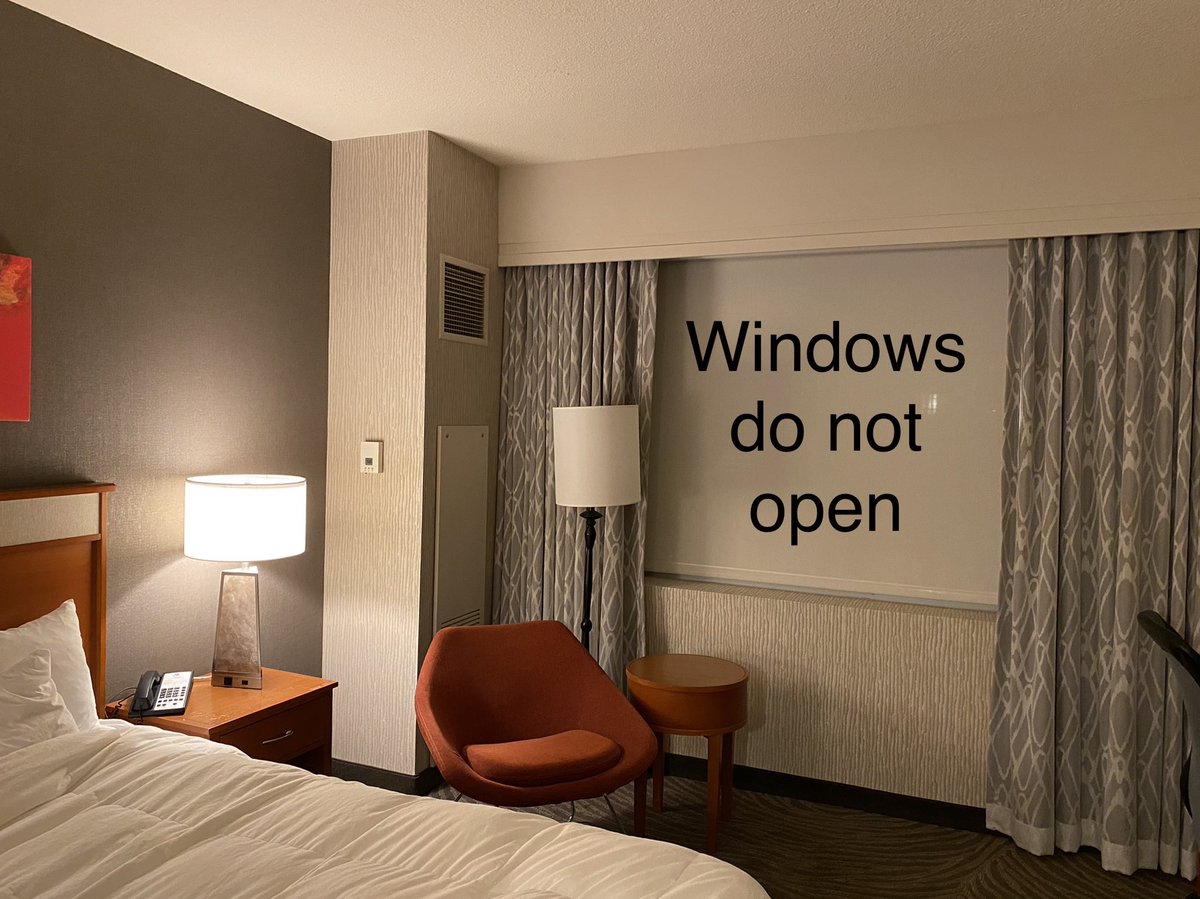

Windows do not open! ImageImage
I was able to find the filter and its rating:
-MERV 6 (low efficiency)
- last changed = 9/20/21 ImageImageImage

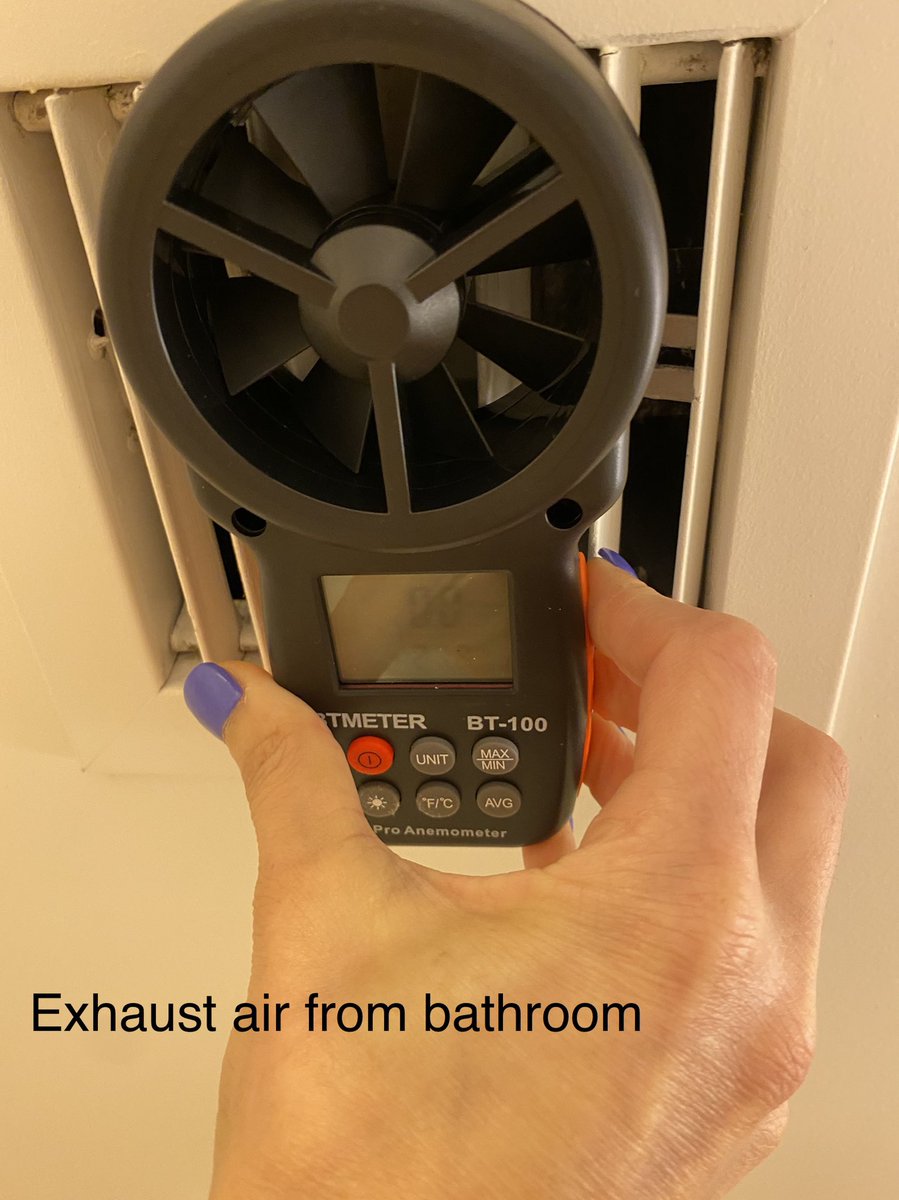

Checked exhaust - only exhaust is from bathroom.

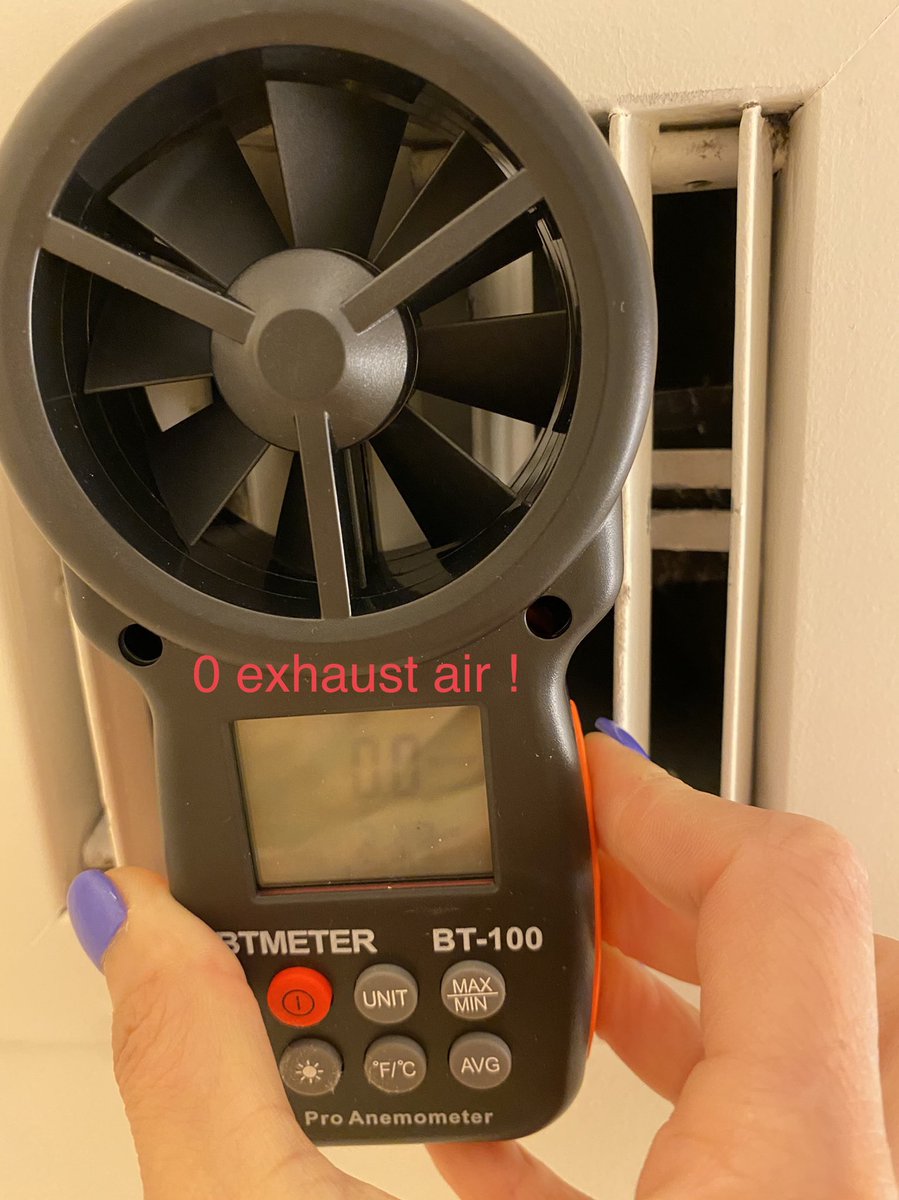

But the exhaust fan was not working! Measured 0 airflow.
(I reported the issue but they said it not something they can fix, only if I have issues with TV or AC). ImageImage
What about outside air (OA) supply to the room?

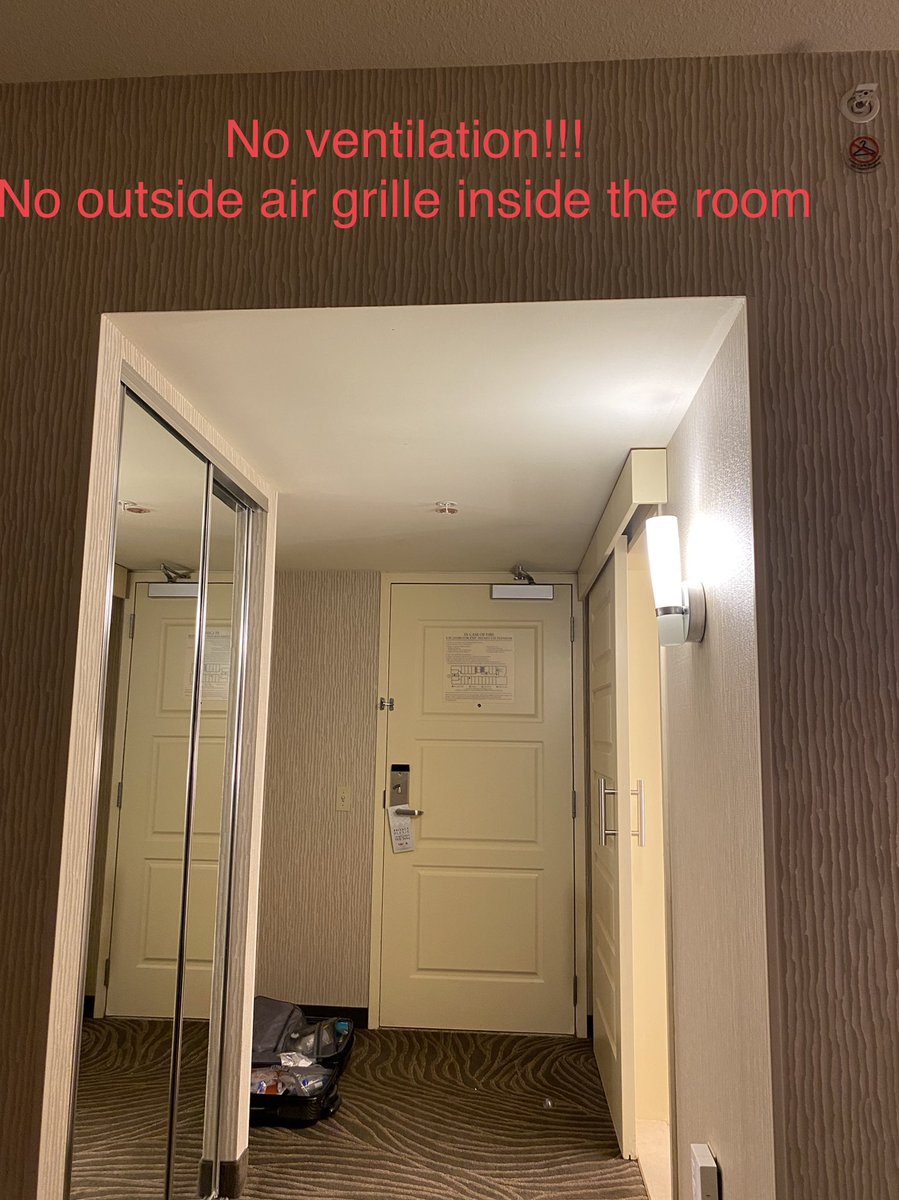

- no OA was supplied directly to the room

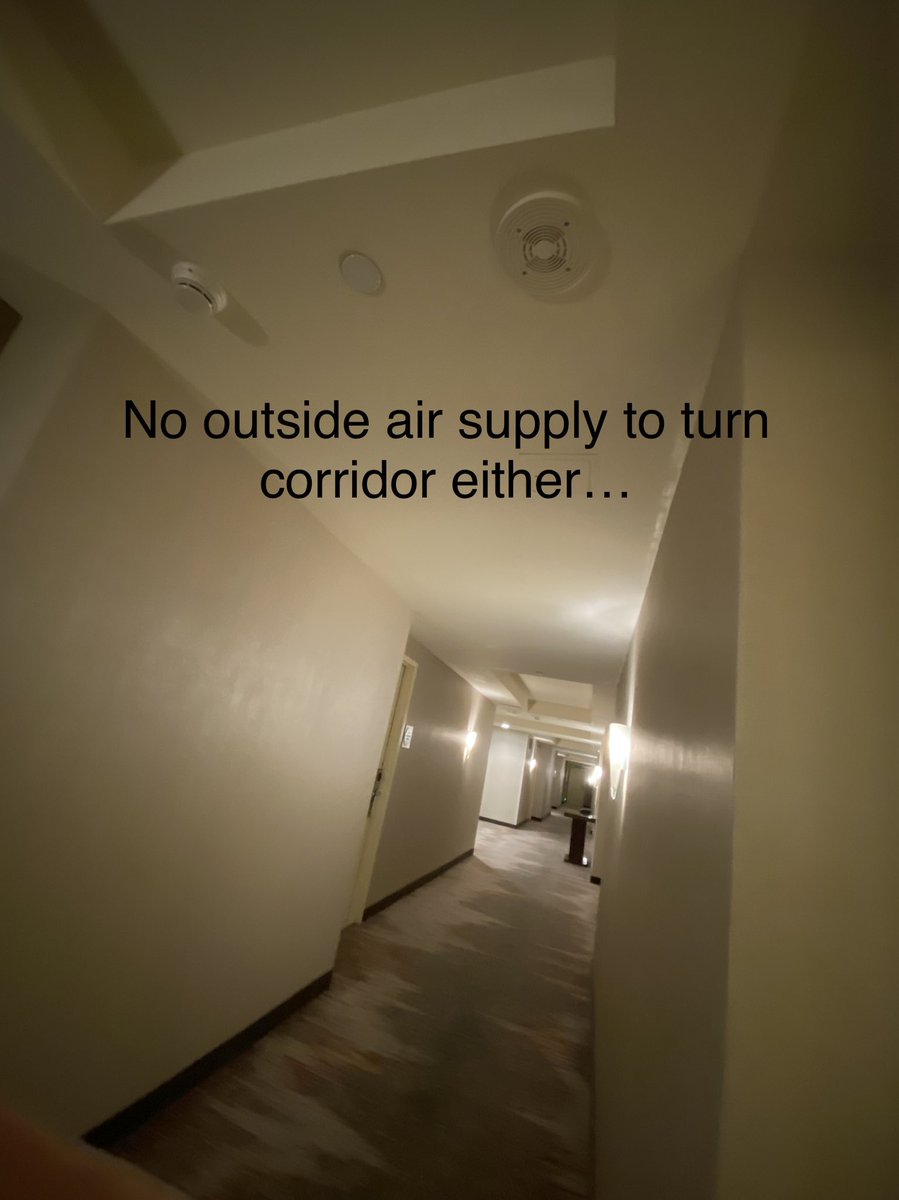

- no OA was supplied to the corridor

👇With no exhaust and no OA: meaning the room was a closed sealed box 📦 ImageImage
Room did not have shared door with another adjacent rooms - did not use blue tape this time. Image

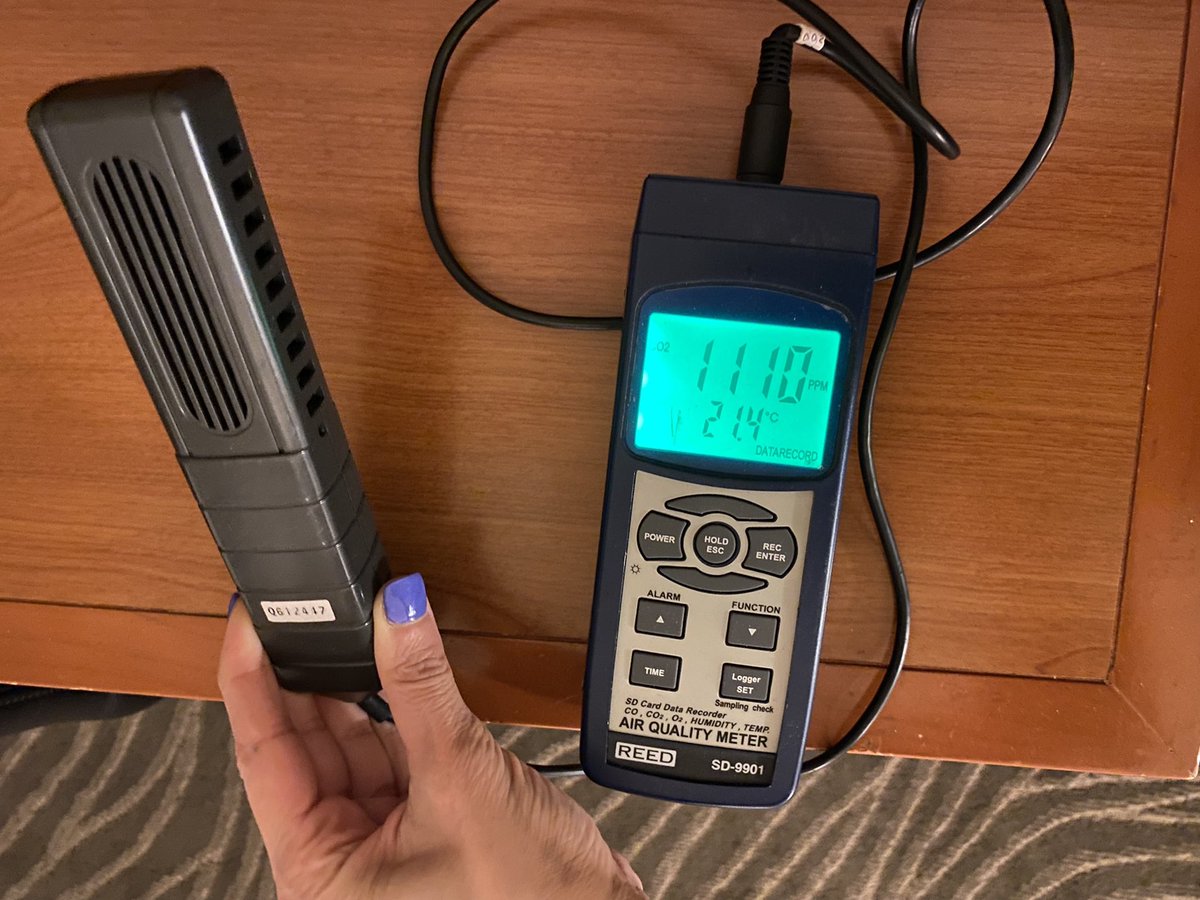

Took CO2 measurements:
- CO2 values varied between 1000 ppm and 1200 ppm. 1 person in room.
- I did not measure while I was sleeping.
(Sensor = REED SD 9901, can log a large amount of data). Image

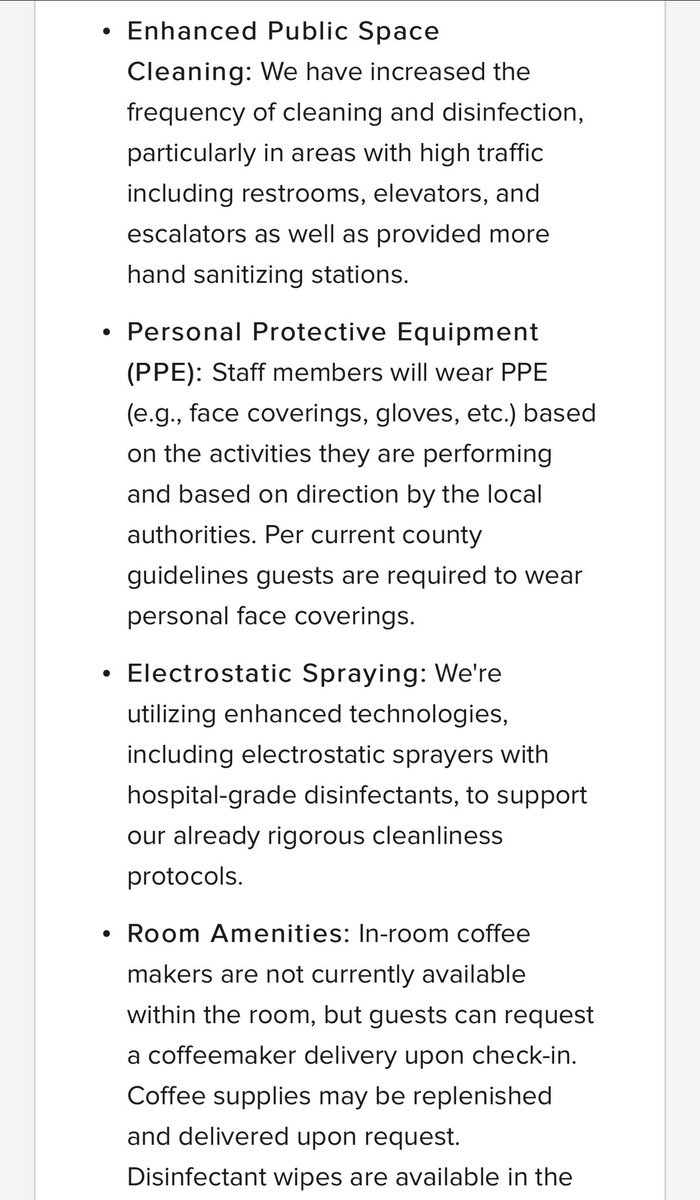

I double checked what the hotel policy on COVID-19. It was about PPE, cleaning and desinfection, and remote check in.

No mention of ventilation or filtration.

In room, there was a tiny complimentary hand wipes. ImageImageImage
Luckily I came prepared. I brought my desk small Levoit and turned it on high.
CADR = 140 CFM.

(Was inconvenient to bring it but Southwest airlines allows checked in bag for free). ImageImage

• • •
