here's an amazing thing! it is a 370 channel simulator. what is that, you ask? well, read on! ๐Ÿงต Image
the System 370 was a series of IBM mainframes from the 1970s. it was the follow-on to the System 360. Image
you could connect a variety of peripherals to your System 370, including things like printers, disks, tapes, and so forth. except these peripherals were typically quite large, like this array of hard disks! Image
an interface bus connected each peripheral to the computer. something like USB or a parallel port, but much larger (natch). IBM used a system called Bus and Tag. you need two of these large cables. one (Bus) carried 8 bits of data, and the other (Tag) carried control signals. Image
it was (sort of) descended from these giant connectors from the '40s and '50s.

anyway, what does a 370 channel simulator do? it lets you perform low-level testing of a System 370 peripheral (or peripherals, since Bus and Tag supported multiple daisy-chained peripherals).
sharp-eyed folks will notice that this 370 channel simulator doesn't say IBM anywhere on it, just Control Data. Image
this is because CDC made plug-compatible peripherals for the System 370, so presumably this device was designed for testing them.
en.wikipedia.org/wiki/Plug_compโ€ฆ

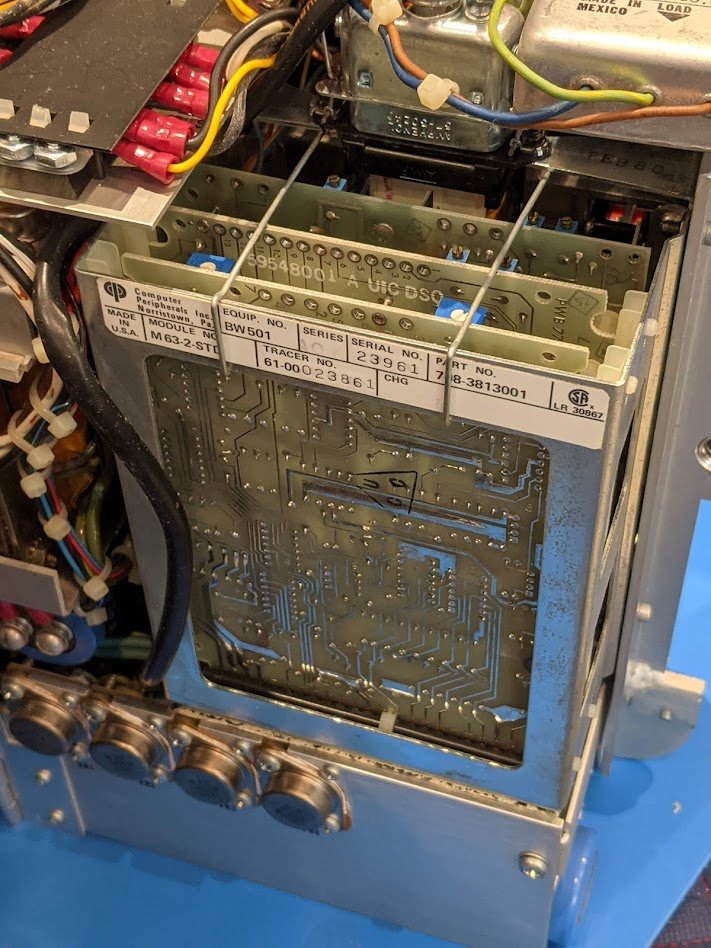

let's take it apart! it's very tightly packed inside, with a card cage on the left, a smaller card cage on the right, a big power transformer in the middle, and the power supply regulator in the lower right. Image
the card cage swings out! ๐Ÿ˜ Image
take a look at the wiring harness! all the front panel controls have been wired by hand. ๐Ÿ˜ Image
made in minneapolis Image
the wiring harness feeds into wire-wrapped edge connectors on the back of the card cage. you can also see two powerful cooling fans. Image
the cassette deck is no ordinary audio tape player. it has some pretty serious electronics on the back. check out the row of test points at the top of each card. Image
this card has four 74S281 chips. these are ALU chips -- this device is actually a full-blown computer! Image
factory bodge: a dead-bugged logic chip. lol. Image
so it is a computer -- and the instruction set is on a printed card on the inside of the lid! Image
the architecture is very simple, but includes conditional branches, ALU instructions, tape IO, and (of course) instructions to manipulate the bus and tag peripheral interface.
the tape looks like an ordinary audio cassette, but it's a specialty data tape. the transport is digitally controlled and can read and write entire blocks of data, automatically performing CRC checks. Image
another cool feature is that you can manually adjust the CPU clock! it's handy for slowly stepping through a program. Image
๐Ÿคค Image
did i mention it comes in this really cool aluminum suitcase? match it up with an elegant wool suit, aviators, and handcuff it to your wrist to deter would-be thieves. Image
