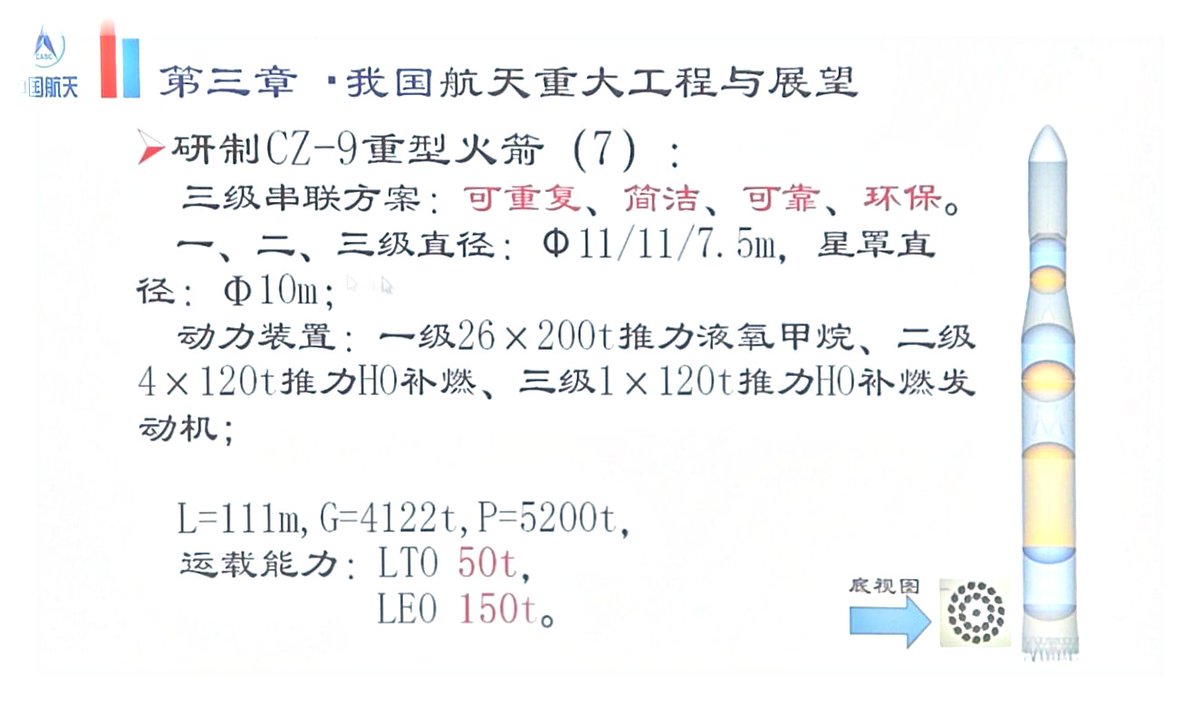

A reusable design of the super heavy-lift Long March 9:
D11m 1st stage with 26 200-ton thrust LOX/Methane engines
D11m 2nd stage with 4 120-ton thrust LOX/LH2 engines
D7.5m 3rd stage with 1 120-ton thrust LOX/LH2 engine
Length: 111m
Mass: 4122 ton
LTO: 50t
LEO: 150t
#CZ9

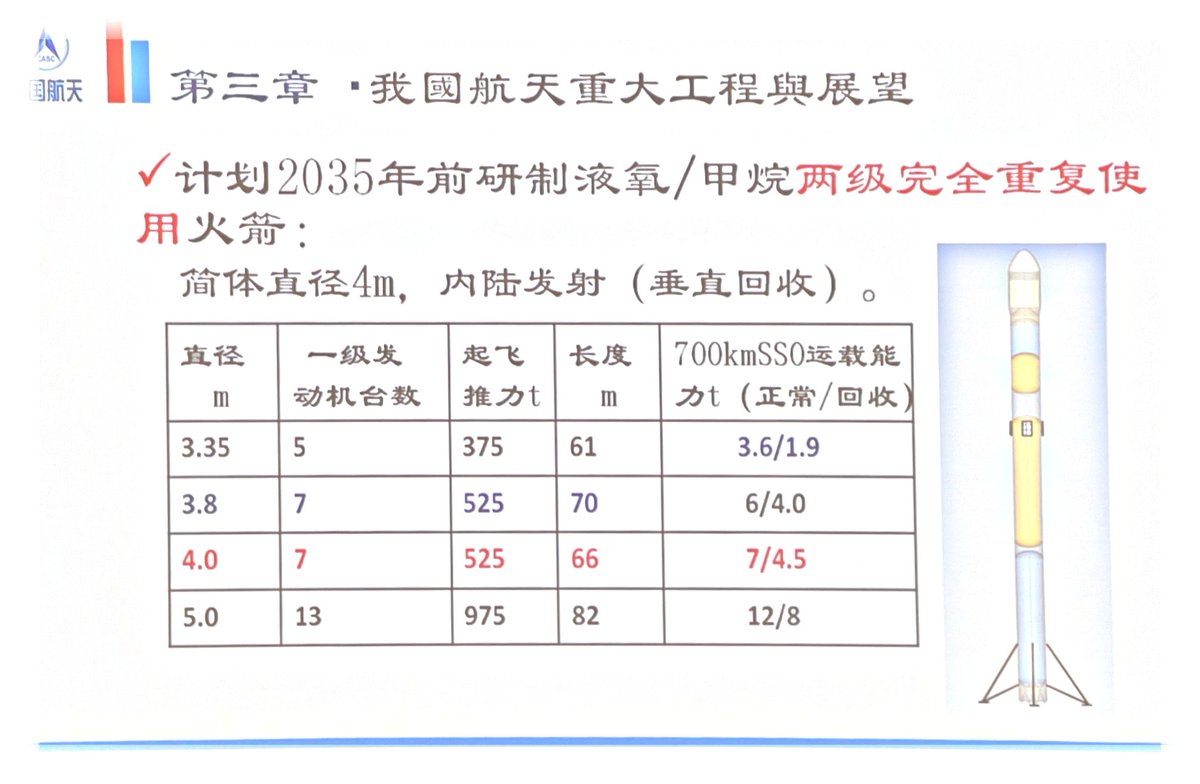

The slide is from a presentation by Long Lehao, former chief designer of Long March rockets. Other designs of 2-stage reusable LOX/Methane rockets
In the future, Long March 7A will be redesigned to cover the capacity of the current #CZ6/7/8, by removing the current 2nd stage. 1st stage will be taller, upper stage uses 1 YF-75E engine.

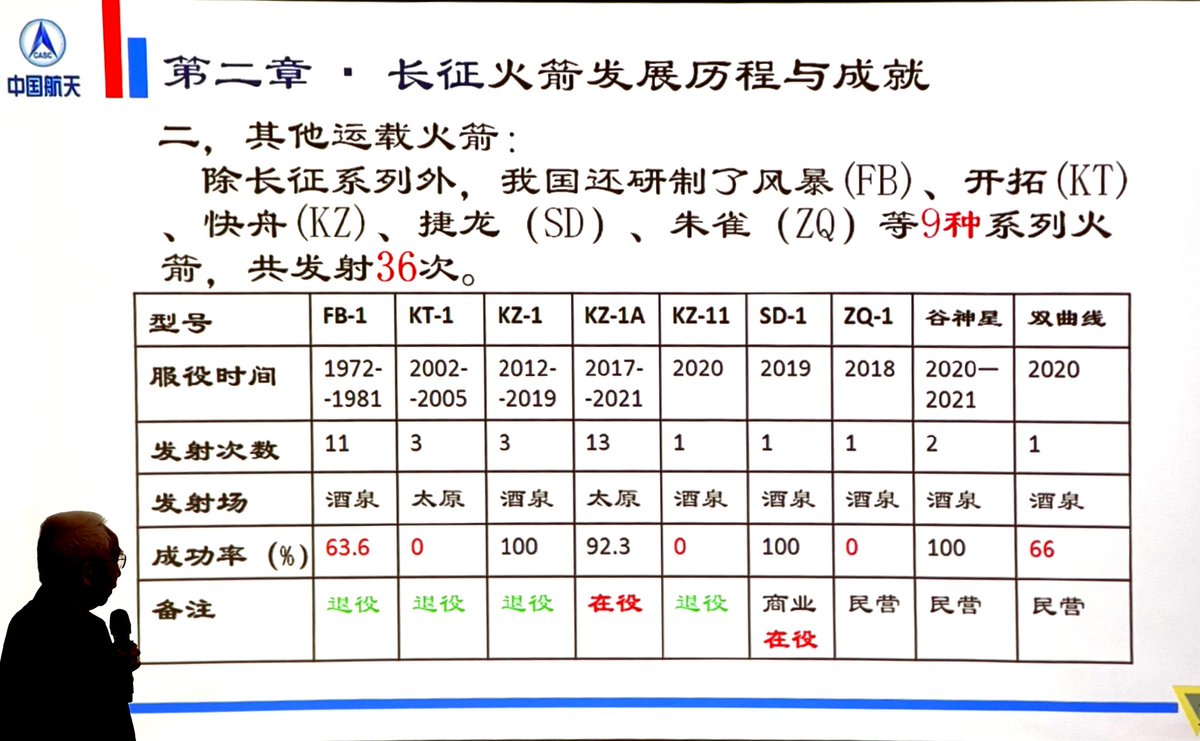

In a summary of "other" launch vehicles, Kuaizhou-11 of CASIC was labeled "retired". Since the launch failure of Kuaizhou-1A last December, we haven't heard any news about its return
Timeline of lunar/deep space programs:
Chang'e-6/7/8 before 2028
Lunar Research Station ~2035
Tianwen-2 2016HO3 sample return before 2025 (Long March 3B)
Tianwen-3 mars sample return ~2028 (Long March 9 or Long March 5 and 3B)
Jupiter 2034
Heliopause 2049

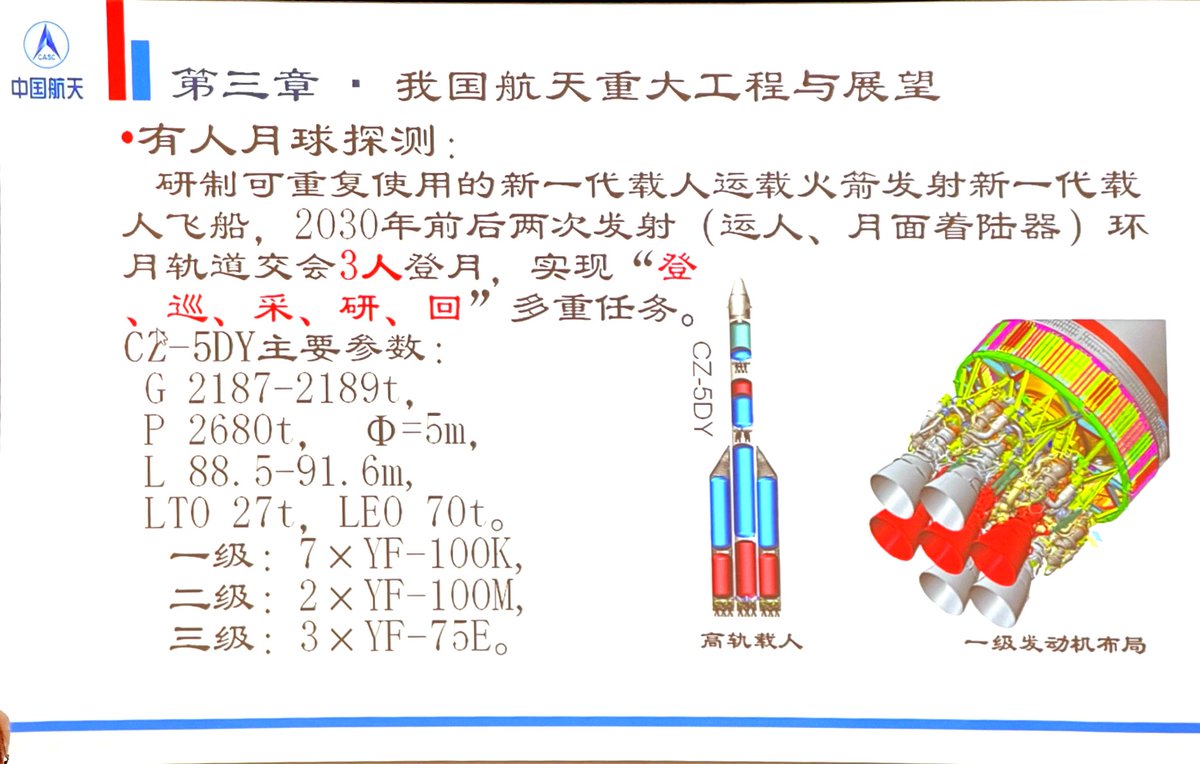

The new generation human rated launch vehicle #CZ5DY will be reusable too
1st stage: 7 YF-100K
2nd stage: 2 YF-100M
3rd stage: 3 YF-75E
LTO: 27 ton
LEO: 70 ton
Targeting ~2030 for human landing on the moon with 2 launches
Single stick variant (#CZ5ZRL) for LEO is less of the 3rd stage and only 1 engine in 2nd stage. It will have a capacity of 14 ton (reuse) to 18 tons. The new rocket is to replace Long March 2F before 2030 and to launch cargo spacecrafts with recycled 1st stages before 2032.

• • •

Missing some Tweet in this thread? You can try to force a refresh


Keep Current with China 'N Asia Spaceflight 🚀🛰️🙏

China 'N Asia Spaceflight 🚀🛰️🙏 Profile picture

Stay in touch and get notified when new unrolls are available from this author!

Read all threads

This Thread may be Removed Anytime!

PDF

Twitter may remove this content at anytime! Save it as PDF for later use!

Try unrolling a thread yourself!

how to unroll video
  1. Follow @ThreadReaderApp to mention us!

  2. From a Twitter thread mention us with a keyword "unroll"
@threadreaderapp unroll

Practice here first or read more on our help page!

More from @CNSpaceflight

Jan 9, 2023
🚀 GIVE ME FIVE!

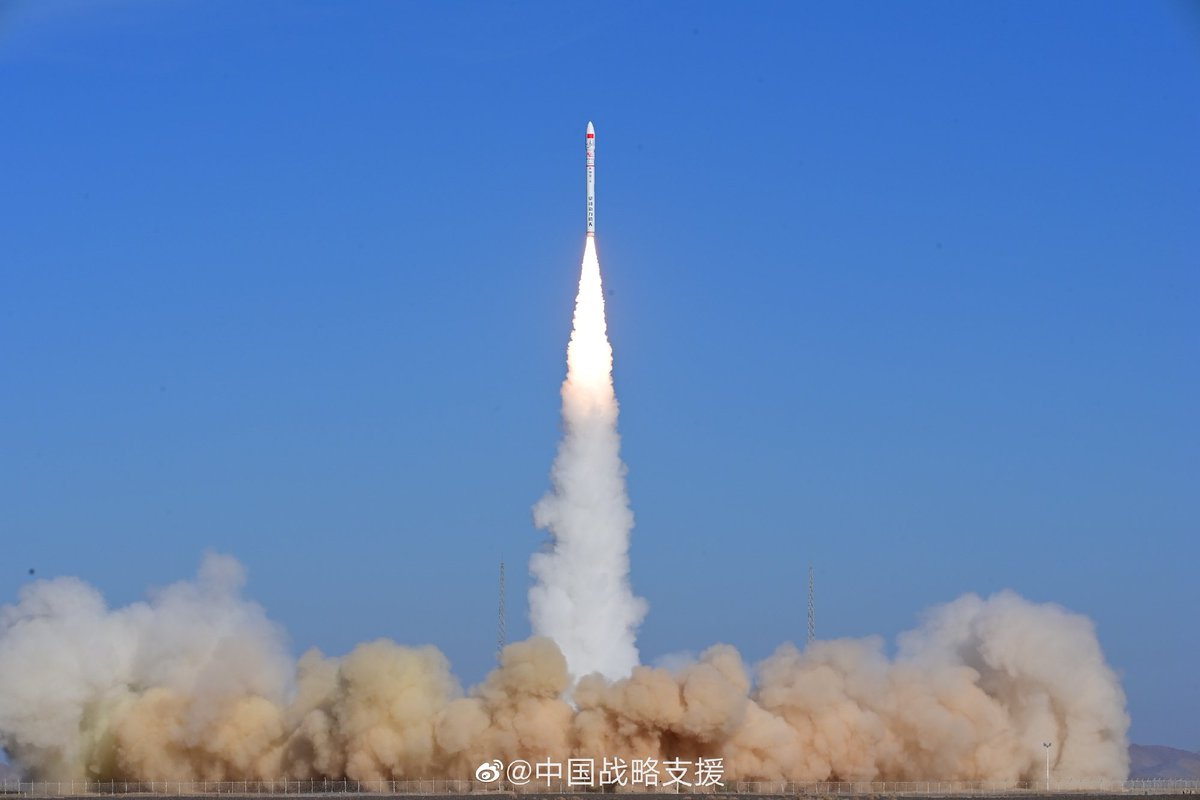

GALACTIC-ENERGY's CERES-1 Y5 successfully launched 5 satellites from Jiuquan at ~05:04 UTC on January 09.

5 successful missions in a roll for a Chinese startup!
A very impressive record for GALACTIC-ENERGY!

The five satellites are:
科技壹号卫星 (SciTech-1)
天启星座13星 (Tianqi-13)
天目一号气象星座01/02星 (Tianmu Meteorological Constellation 01 & 02)
南通中学号卫星 (Nantong Middle School)
The press release of GALACTIC-ENERGY says they plan to deliver 8~10 CERES-1s for launch in 2023. What do you think?
Read 5 tweets
Apr 22, 2022

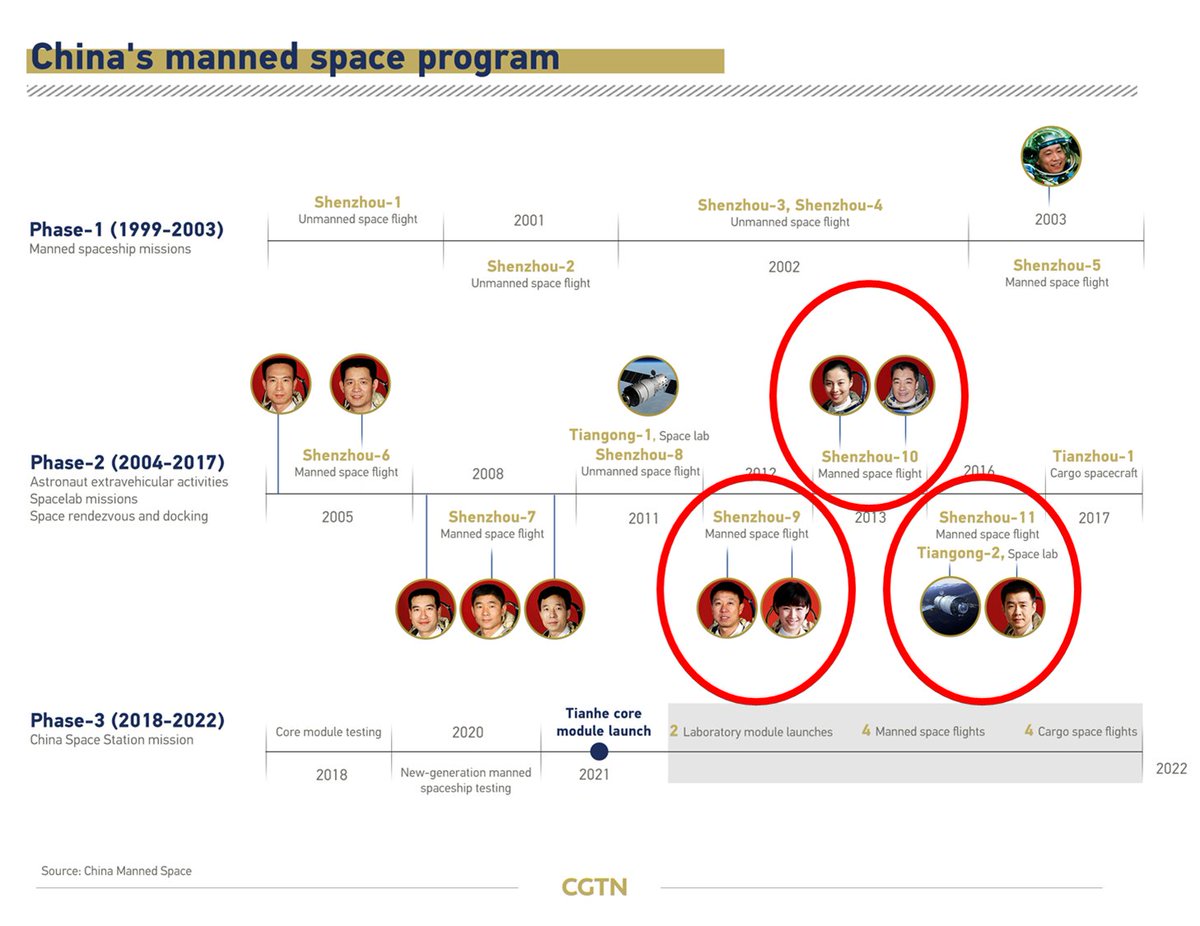

@CGTNOfficial On the same webpage. @CGTNOfficial Please remove your page or at least modify it.

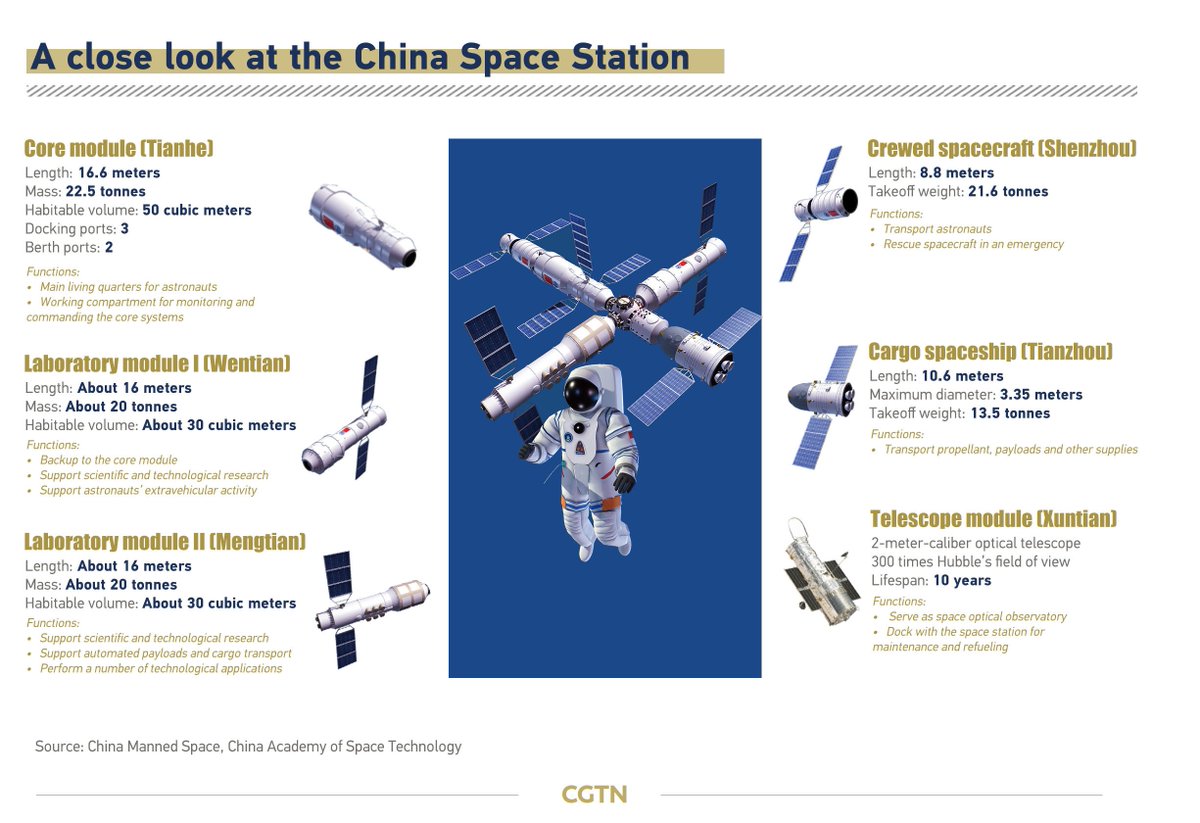

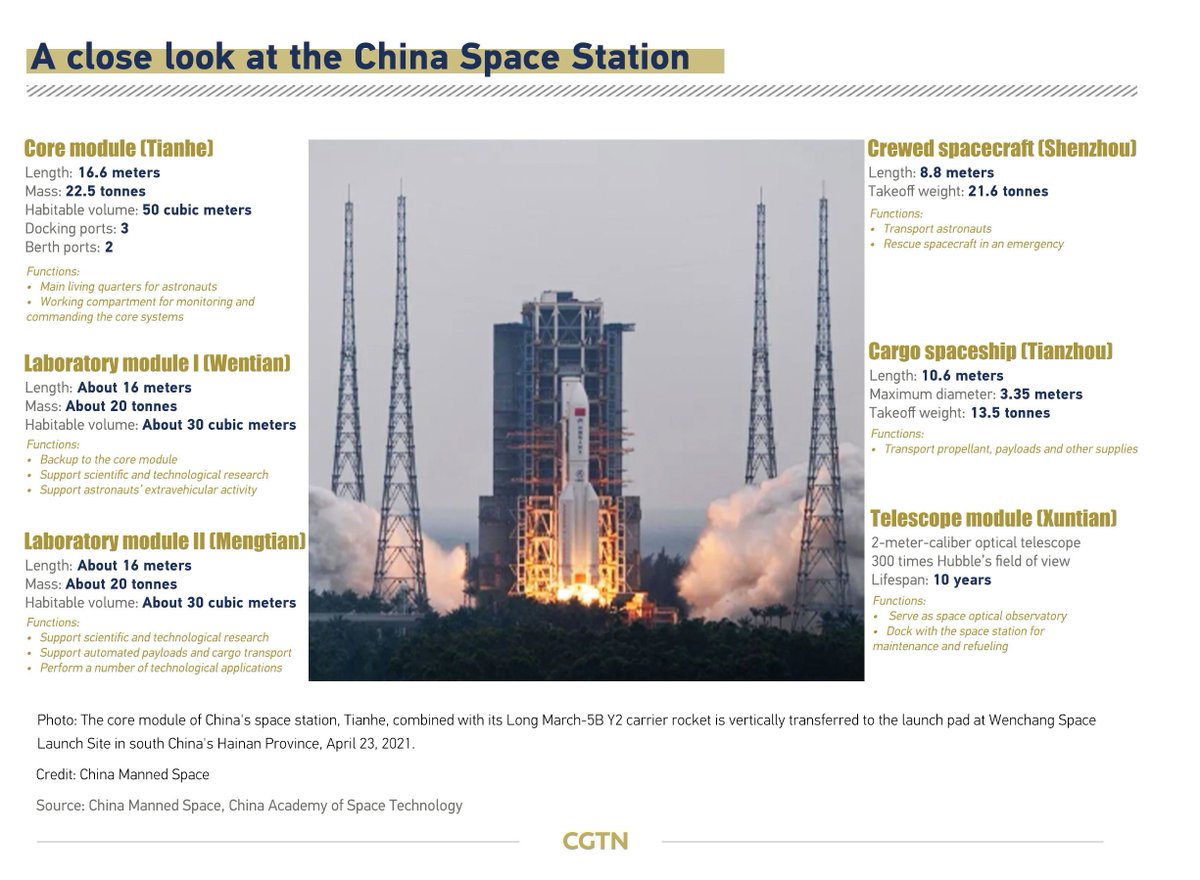

@CGTNOfficial Update: CGTN has changed the image. But @CGTNOfficial please check your numbers too. For example, Shenzhou does not weigh 21.6 tonnes
