Thread by @nJoyneer

AWS story of a special security issue.

TL;DR I discovered an HTTP Header Smuggling
affecting AWS ELB Cache mechanism;
The Brave team helped triage it,
AWS fixed the issue.

Happily ever after!

A thread 🧵 1/N.

This August @albinowax published research related to
HTTP/2 smuggling vulnerabilities. Most of the research revolves
around fiddling with HTTP/1.1 and HTTP/2 conversion.

Reference:

- portswigger.net/research/http2

- intruder.io/research/pract…

Thread 🧵 2/N.

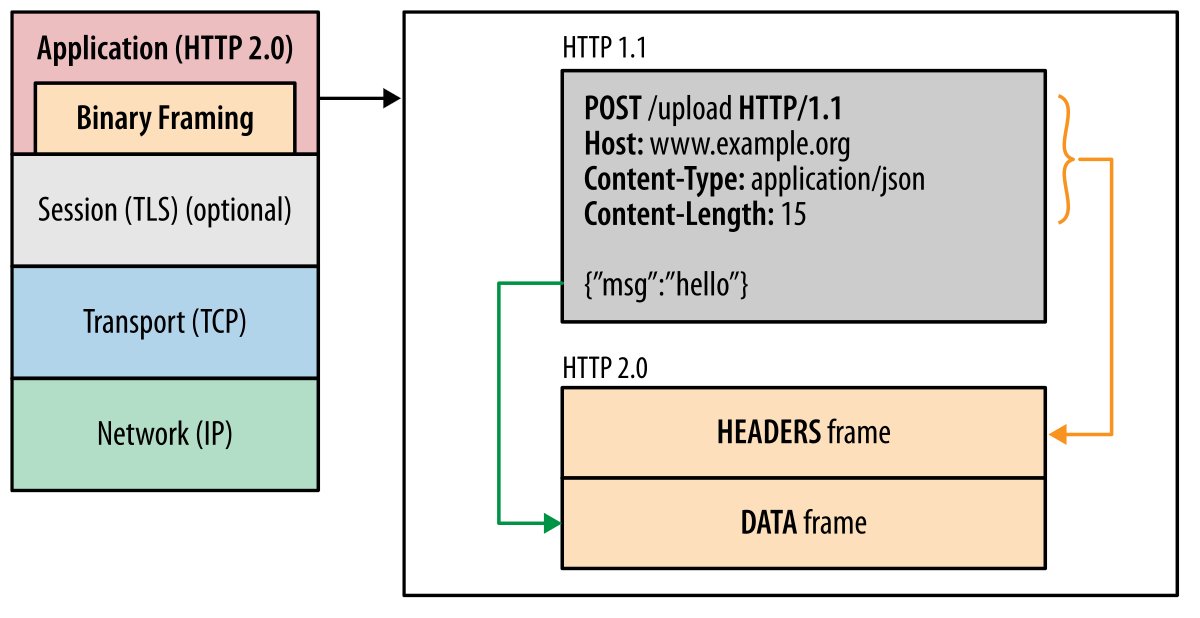

A bit of background: HTTP/1.1 is a textual protocol,
HTTP/2 employs binary framing instead.
Reverse proxies are there to enable interoperability between
old protocols and newer and shinier ones;
frequently with catastrophic results.

Thread 🧵 3/N.

Back to the research. Immediately after the publication, I started
fiddling with this particular special security issue family,
but I did not find any vulnerable instance at that time;
back then, I was working in @Doyensec <3.

Thread 🧵 4/N.

In October, I joined @brave security team;
at that time, I was getting up to speed while testing internal apps
that is the core of the Brave web experience.

Thread 🧵 5/N.

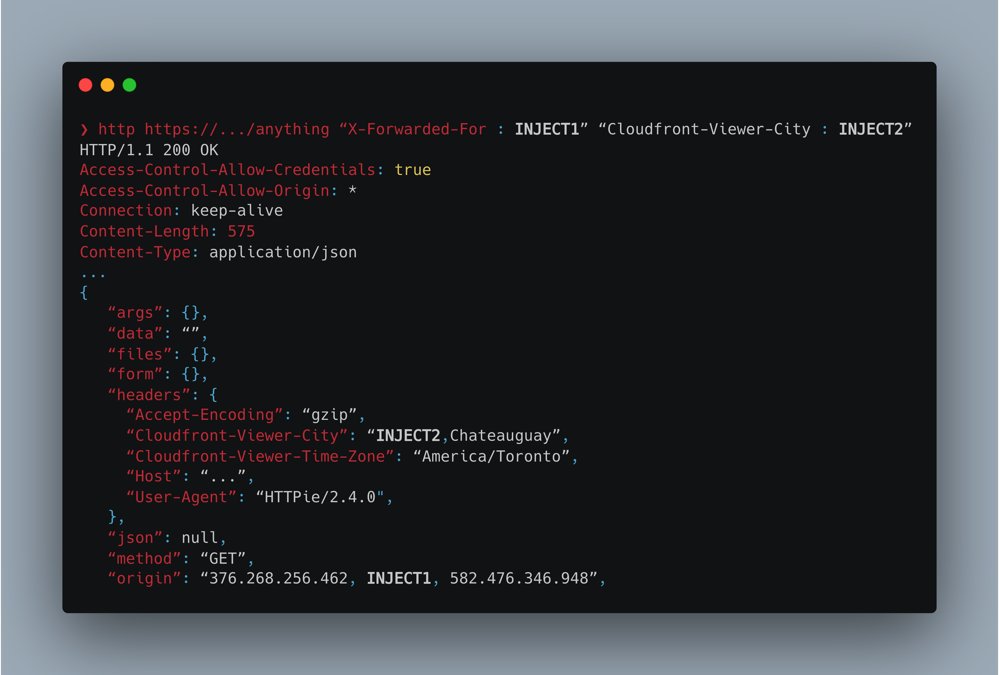

While testing rate-limiter protection,
I noticed that when forcing HTTP/1 requests and injecting
a space after `X-Forwarded-For` I was able to override this specific
header, letting me impersonate any IP.

Thread 🧵 6/N.

The END

Or maybe not?

Thread 🧵 7/N.

At that time, I supposed that the reach of this special security issue
was only related to some of our weird reverse proxy configurations.

It was not!

Thread 🧵 8/N.

We discovered we could override any internal
header, also the one that should not be exposed/forwarded by the client, such as
`CloudFront-Viewer-Country-Region` or any other `CloudFront` enhanced header.

Thread 🧵 9/N.

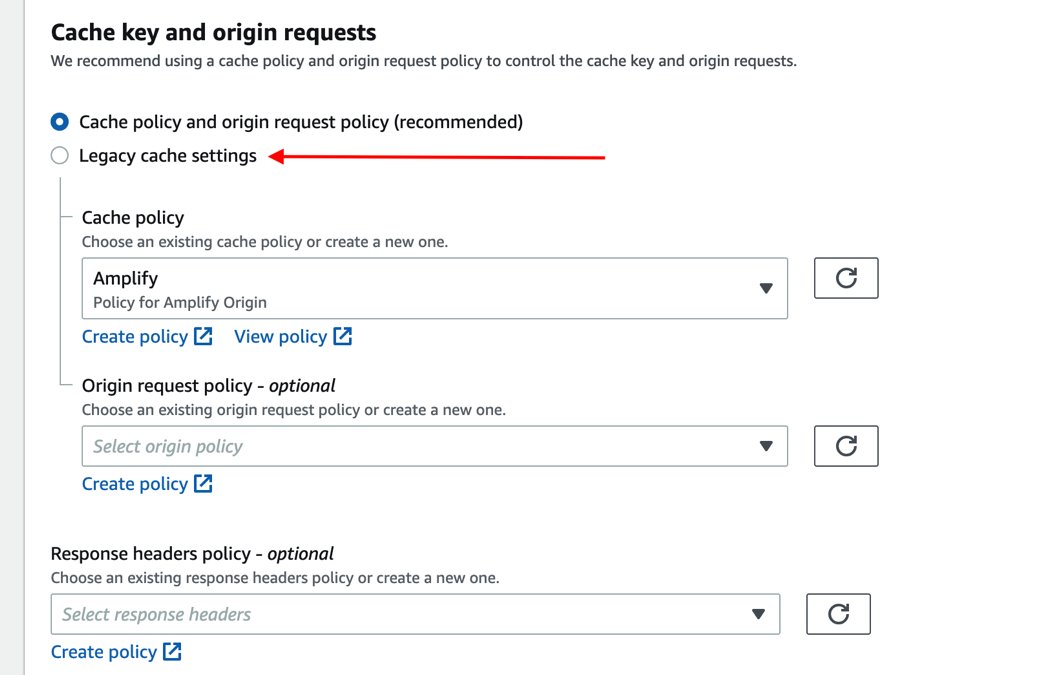

We pinpointed the specific vulnerable AWS EC2 Cache setting.
This special security issue was affecting all AWS users with that specific setting enabled.

Thread 🧵 10/N.

AWS team helped pinpoint and fix the special security issue promptly! Thanks all!

- 11/24/21 Initial public disclosure
- 11/25/21 AWS started an internal investigation
- 01/29/22 AWS deployed the fix

Thread 🧵 11/N.
