/1 What does API gateway do?

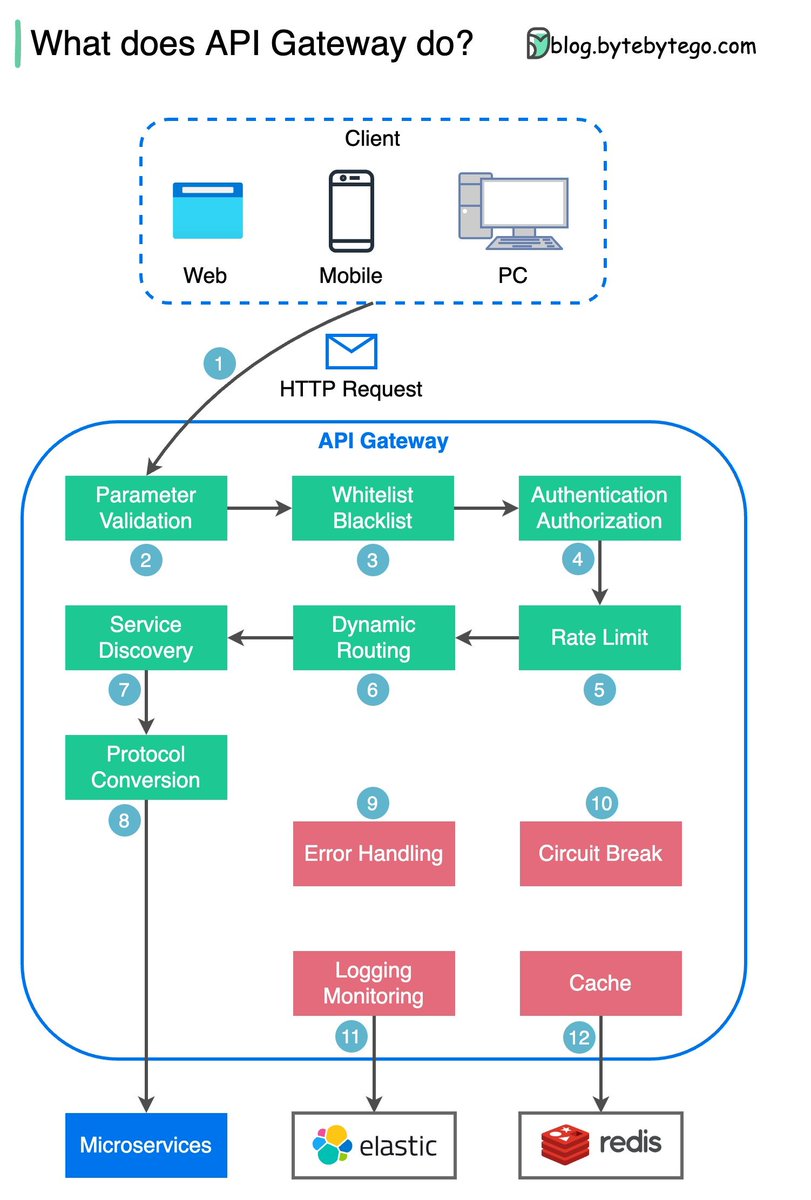

The diagram below shows the detail.
/2 Step 1 - The client sends an HTTP request to the API gateway.

Step 2 - The API gateway parses and validates the attributes in the HTTP request.

Step 3 - The API gateway performs whitelist or blacklist checks.
/3 Step 4 - The API gateway talks to an identity provider for authentication and authorization.

Step 5 - The rate limiting rules are applied to the request. If it is over the limit, the request is rejected.
/4 Steps 6 and 7 - Now that the request has passed basic checks, the API gateway finds the relevant service to route to by path matching.

Step 8 - The API gateway transforms the request into the appropriate protocol and sends it to backend microservices.
/5 Steps 9-12: The API gateway can handle errors properly, and deals with faults if the error takes a longer time to recover (circuit break). It can also leverage ELK (Elastic-Logstash-Kibana) stack for logging and monitoring. We sometimes cache data in the API gateway.
/6 Over to you: 1) What’s the difference between a load balancer and an API gateway?

2) Do we need to use different API gateways for PC, mobile and browser separately?
/7 I hope you've found this thread helpful.

Follow me @alexxubyte for more.

Like/Retweet the first tweet below if you can:
Edit: update whitelist/blacklist to the modern equivalents allow-list/deny-list
