Dec 29 • 7 tweets • 3 min read
/1 Evolution of Uber’s API layer

Uber’s API gateway went through 3 main stages.
/2 First gen: the organic evolution. Uber's architecture in 2014 would have two key services: dispatch and API. A dispatch service connects a rider with a driver, while an API service stores the long-term data of users and trips.
/3 Second gen: the all-encompassing gateway. Uber adopted a microservice architecture very early on. By 2019, Uber's products were powered by 2,200+ microservices as a result of this architectural decision.
/4 Third gen: self-service, decentralized, and layered. As of early 2018, Uber had completely new business lines and numerous new applications. Freight, ATG, Elevate, groceries, and more are among the growing business lines. With a new set of goals comes the third generation.
/5 Subscribe to our weekly newsletter to learn something new every week:

bit.ly/3FEGliw
/6 I hope you've found this thread helpful.

Follow me @alexxubyte for more.

Like/Retweet the first tweet below if you can:
Read more here: uber.com/en-CA/blog/gat…

• • •

Missing some Tweet in this thread? You can try to force a refresh
　

Keep Current with Alex Xu

Alex Xu Profile picture

Stay in touch and get notified when new unrolls are available from this author!

Read all threads

This Thread may be Removed Anytime!

PDF

Twitter may remove this content at anytime! Save it as PDF for later use!

Try unrolling a thread yourself!

how to unroll video
  1. Follow @ThreadReaderApp to mention us!

  2. From a Twitter thread mention us with a keyword "unroll"
@threadreaderapp unroll

Practice here first or read more on our help page!

More from @alexxubyte

Alex Xu Profile picture
Dec 28

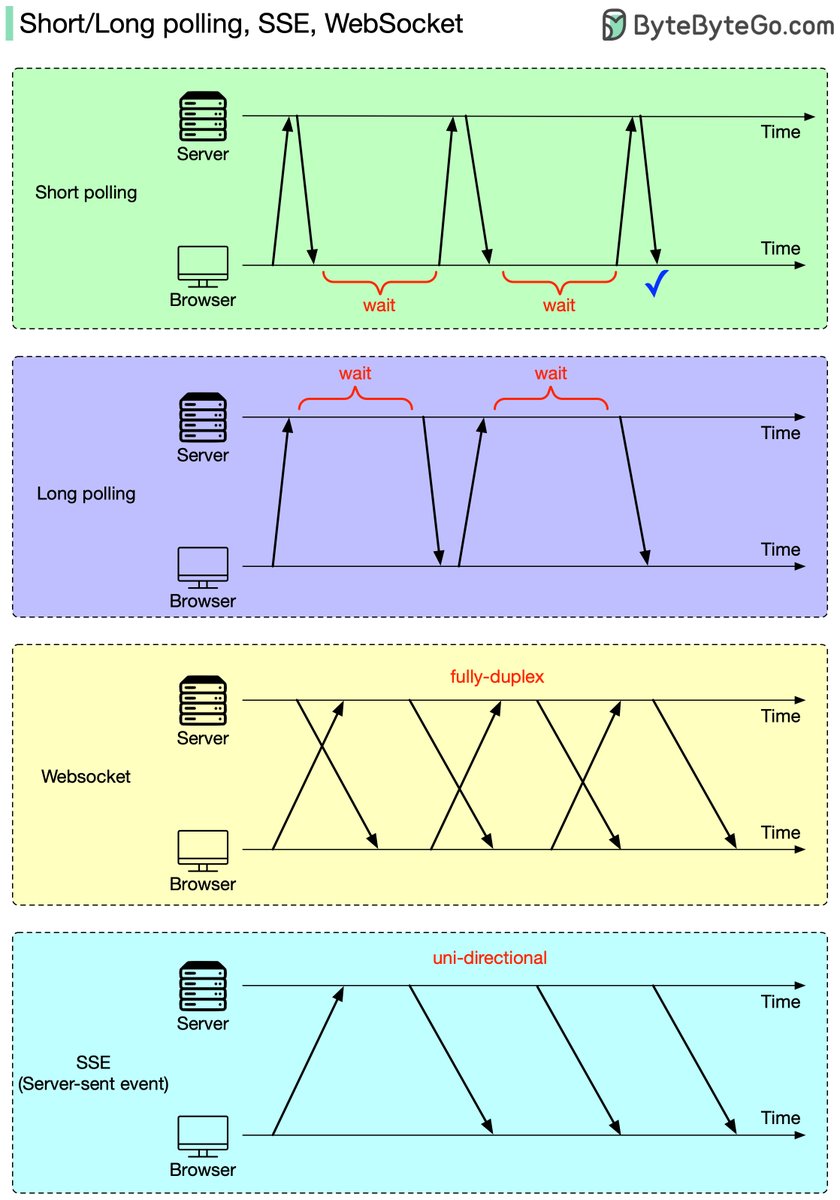

/1 Can a web server provide real-time updates?

An HTTP server cannot automatically initiate a connection to a browser. As a result, the web browser is the initiator. What should we do next to get real-time updates from the HTTP server?
/2 Both the web browser and the HTTP server could be responsible for this task.
/3 🔹Web browsers do the heavy lifting: short polling or long polling. With short polling, the browser will retry until it gets the latest data. With long polling, the HTTP server doesn’t return results until new data has arrived.
Read 7 tweets
Alex Xu Profile picture
Dec 27
/1 Why is a credit card called a “𝐜𝐫𝐞𝐝𝐢𝐭” card?

Why is a debit card called a “𝐝𝐞𝐛𝐢𝐭” card?

An example of a debit card payment is shown in the diagram below. 👇
/2
🔸 Each transaction in the business system is transformed into at least two journal lines in the ledger system. This is called 𝐝𝐨𝐮𝐛𝐥𝐞-𝐞𝐧𝐭𝐫𝐲 accounting, where every transaction must have a 𝐬𝐨𝐮𝐫𝐜𝐞 account and a 𝐭𝐚𝐫𝐠𝐞𝐭 account.
/3
🔸 Each journal line is booked to an account.
🔸 Each account belongs to one of the three components in the balance sheet:

💡Asset = Liability + Equity

Let’s look at the issuing bank’s ledger as an example:
Read 8 tweets
Alex Xu Profile picture
Dec 26
/1 What is cloud-native?

Below is a diagram showing the evolution of architecture and processes since the 1980s.

Organizations can build and run scalable applications on public, private, and hybrid clouds using cloud-native technologies.
/2 This means the applications are designed to leverage cloud features, so they are resilient to load and easy to scale.

Cloud-native includes 4 aspects:

🔹 1. Development process
This has progressed from waterfall to agile to DevOps.
/3 🔹 2. Application architecture
The architecture has gone from monolithic to microservices. Each service is designed to be small, adaptive to the limited resources in cloud containers.
Read 8 tweets
Alex Xu Profile picture
Dec 22
/1 What tech stack is commonly used for microservices?

Below you will find a diagram showing the microservice tech stack, both for the development phase and for production.
/2 ▶️ 𝐏𝐫𝐞-𝐏𝐫𝐨𝐝𝐮𝐜𝐭𝐢𝐨𝐧

🔹 Define API - This establishes a contract between frontend and backend. We can use Postman or OpenAPI for this.
/3 🔹 Development - Node.js or react is popular for frontend development, and java/python/go for backend development. Also, we need to change the configurations in the API gateway according to API definitions.
Read 10 tweets
Alex Xu Profile picture
Dec 21
/1 My 12 bullet points TLDR on technical content from Elon Musk on a Space with @realGeorgeHotz, on the complexity of the Twitter stack, scale, metrics, ads, etc.
/2
1. Code complexity: 20 million lines of Scala code in Twitter codebase.

2. $1 billion in server costs per year.

3. A metric that matters most to Twitter: unregretted user minutes.

4. Like count is updated every second for celebrities.
/3
5. To cut the burn rate, Twitter headcounts reduced from 8k to 2k in the last 6 weeks.

6. Got scammed by the SMS telecommunications providers. $16 million SMS costs excluding North America. 300+ SMS providers allow bots to run 2FA repeatedly.
Read 8 tweets
Alex Xu Profile picture
Dec 19

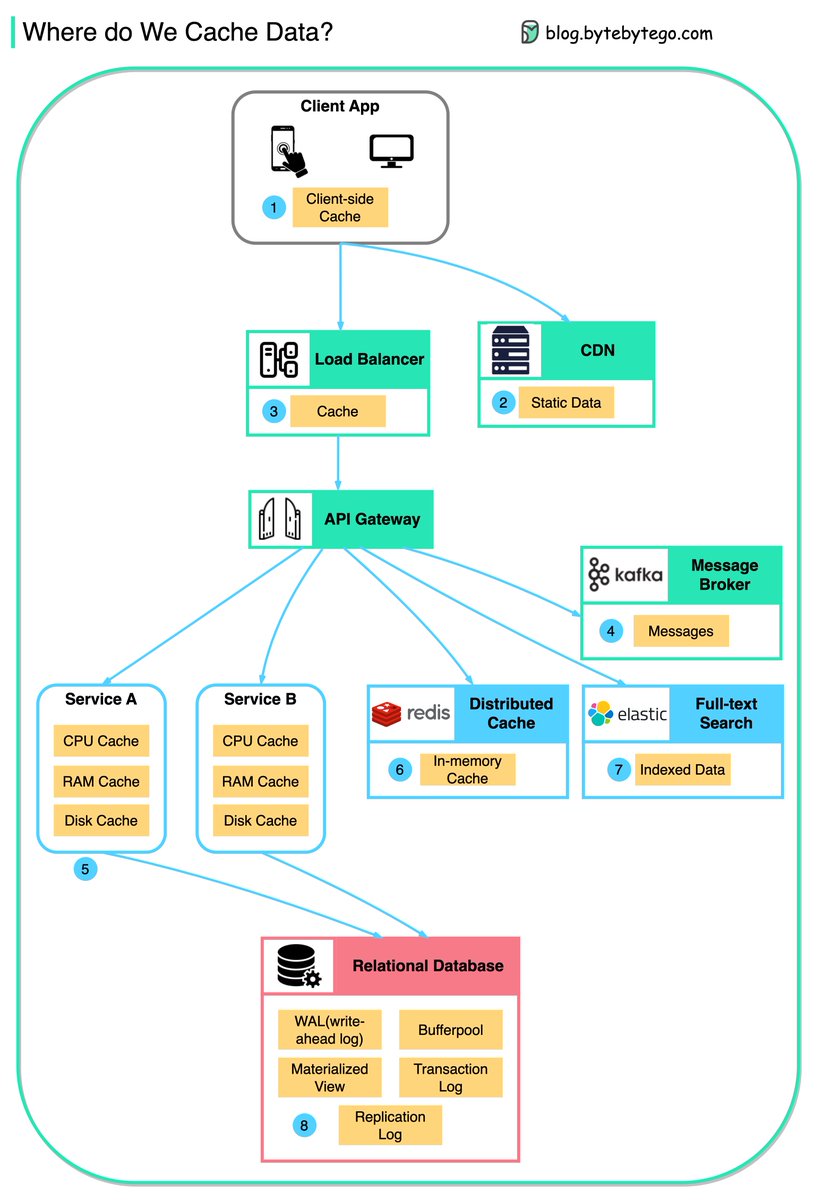

/1 Data is cached everywhere, from the front end to the back end!

This diagram illustrates where we cache data in a typical architecture.
/2 There are 𝐦𝐮𝐥𝐭𝐢𝐩𝐥𝐞 𝐥𝐚𝐲𝐞𝐫𝐬 along the flow.

🔹 1. Client apps: HTTP responses can be cached by the browser. We request data over HTTP for the first time; we request data again, and the client app tries to retrieve the data from the browser cache first.
/3

🔹 2. CDN: CDN caches static web resources. The clients can retrieve data from a CDN node nearby.

🔹 3. Load Balancer: The load Balancer can cache resources as well.
Read 11 tweets
