The AIM-7E Sparrow failed in Vietnam. Today, I intend to explain what went wrong, how, and what was done to correct it.
🧵

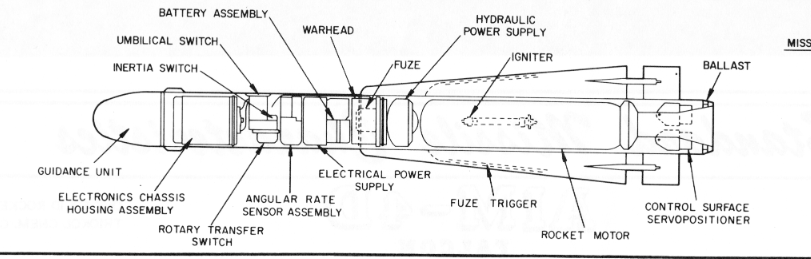

The early members of the AIM-7 family were complicated. For the sake of brevity, we're going to skip over the AIM-7A and B. Those were very different missiles from the 7C/D/E, which were known as the Sparrow III.
The AIM-7C was the first semi-active radar homing of the three, introduced in 1958. It was mated to the AN/APA-127 missile guidance set in the F3H-2 (F-3B) Demon.
To understand the problems I will discuss later, it is important to understand how the Sparrow III operates. The radar provides frequency-modulated continuous-wave RF energy. A triangular FMCW is shown below. The transmitted signal is in red, and the received signal is in green.
This looks very complicated, and it is, so we're going to skip most of it. But most of this exists to provide the transmitting radar range (f(R)) and velocity information (fD). For the purposes of the missile, we care primarily about the fD, or Doppler shift.
The Sparrow, being a semi-active missile, does not transmit the FMCW signal, so it has to have a separate receiver to allow the missile to compare the transmitted and received signals.
The Sparrow III, as originally designed, locks on to the fD of the target.
As long as there is a closing velocity difference between the transmitting aircraft and the target, this Doppler gating(as shown below) allows the seeker to filter radar returns outside of the target velocity. This provides some chaff and ground clutter rejection.
In the context of Sparrow guidance, "simulated doppler" refers to a variable provided for guidance.
Now, for the AIM-7D. This was designed for the F-4 Phantom's APA-157 missile guidance set. It featured a larger motor, a larger warhead, and unknown seeker improvements. The 7D could only be fired at targets with a closing velocity of 150 knots.
It was quickly recognized that the AIM-7D was not a suitable missile for the F-4, leading to the development of the 7E. The 7E was far more useful, being able to lock on to the velocity gate of targets with a closing velocity of greater than negative 300 knots.
The AIM-7D was very quickly removed from service. The rear-aspect capability of the AIM-7E was very important in Vietnam, where rules of engagement required visual identification of targets before firing, meaning that head-on attacks with AIM-7s rarely occurred.
From here, we will discuss primarily the AIM-7E, as the 7C saw no service in Vietnam and the 7D was wholly inadequate for the role.
When the AIM-7E is selected, and the master arm switch is on SAFE, it begins a process called pseudo-tuning. Unfortunately, I cannot figure out exactly what the purpose of pseudo-tuning was.
Once the switch is on ARM, the missile begins tuning on the simulated doppler signal.
Tuning on the simulated doppler allows for the missile to complete a successful lock-on when it is launched. When it launches, the missile looks for a target return in a narrow speedgate sweep, which is +/-150 knots of the provided simulated doppler velocity.
The first problem with the 7E was that of lock speed. The 7E had a long preparation time before it could be fired. This led quickly to using the missile in a "boresight" mode, wherein the missile was fired before a speedgate lock had been accomplished. Mode 5 was the most common.
However, this presents a problem, as described below. This would not have been as significant of an issue if the Sparrow had been employed in its intended high-altitude environment, but the low-altitude nature of air combat in Vietnam led to this problem being exacerbated.
In short, firing without speedgate settling and proper speedgate lock not only negates the advantage of having a velocity gate tracker in the first place!
At low altitudes, ground-scatter returns from CW radiation provide this brighter target for the missile.
Not discussed in that document is also a problem of fusing, explained below.
In the Ault report, a few other significant issues are described. The AIM-7E had a captive flight lifespan of only 30 flights before having to be rebuilt. This was one of the many issues encountered on repeated captive flights.
Notably, this discusses the removal of the pseudo-tuning signal, as this is what was causing the weapons control system to report a non-functional AIM-7E, and therefore preventing firing.
The modifications to disable pseudo-tuning are shown below, AF first, Navy second.
The AIM-7E-2, which, as some of you will have noticed, is mentioned separately and with different capabilities. I don't know all of them, but the major differences are in improving the minimum range and fusing.
AIM-7E-2 provided a much more capable dogfight missile, with a minimum range half that of the 7E, according to the USN.
AIM-7E-2, however, did not solve the problems inherent to FMCW guidance and did not solve the other problems experienced in Vietnam. Those would be much harder to get rid of, and many fixes were simply delayed until the introduction of the AIM-7F.
Back to the Ault report. For the purposes of this thread, we will be ignoring the severe issues in Raytheon manufacturing.

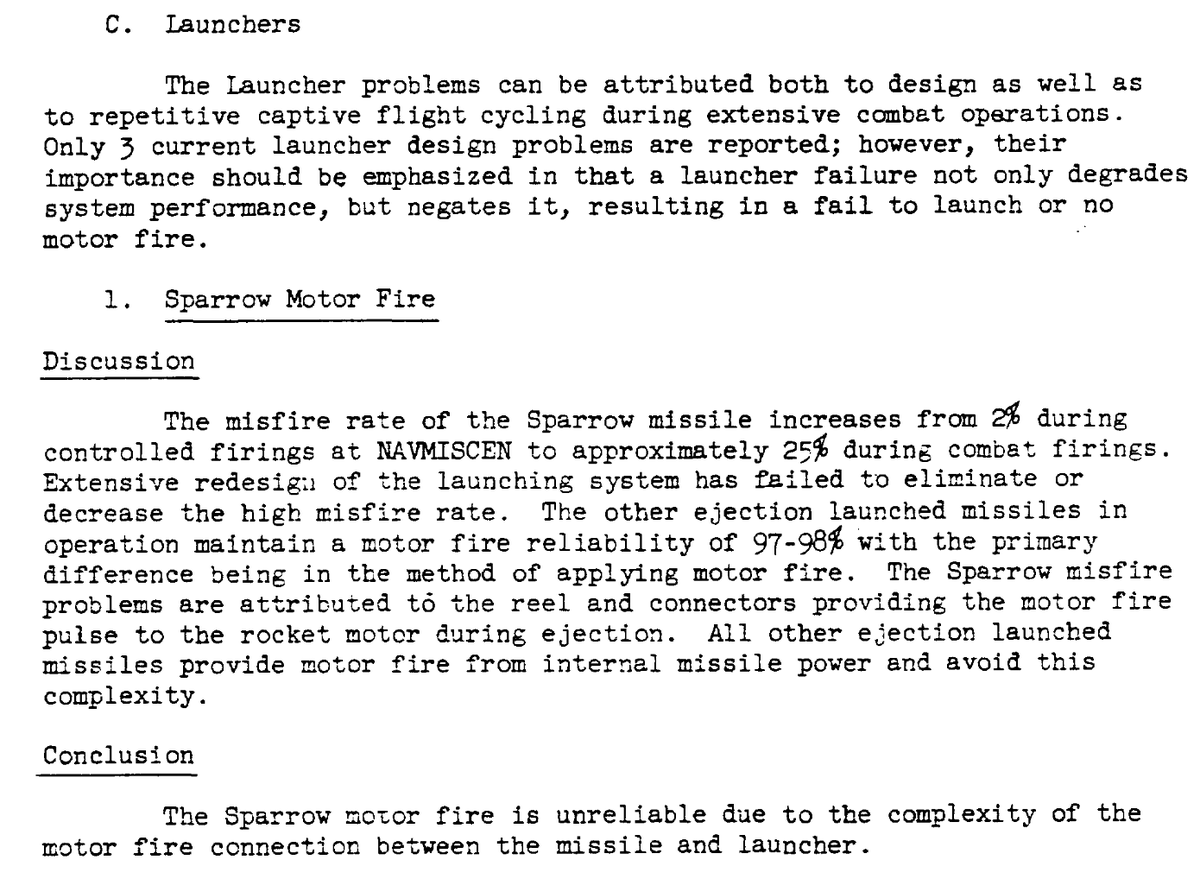

The 7E suffered a 25% misfire rate simply from the design of the igniter! This would not be fixed until the introduction of the AIM-7F with dual igniters.
The AIM-7E's reliability plummeted primarily due to captive flights, i.e., ones where the missile was not fired, as well as the strain put on the analog components due to testing and handling. The abysmal results of a survey are shown here:
To some degree, this was an impossible problem to solve on the analog AIM-7E. The Ault report recommended less frequent testing and procedures for the storage of 7Es on aircraft rather than being removed after flight.
As much as I would like to ramble on for longer, writing this thread has taken me the better part of 8 hours, and I think this is a decent place to end. The AIM-7E was inherently flawed in many ways and would require a complete redesign to most of the problems outlined here.

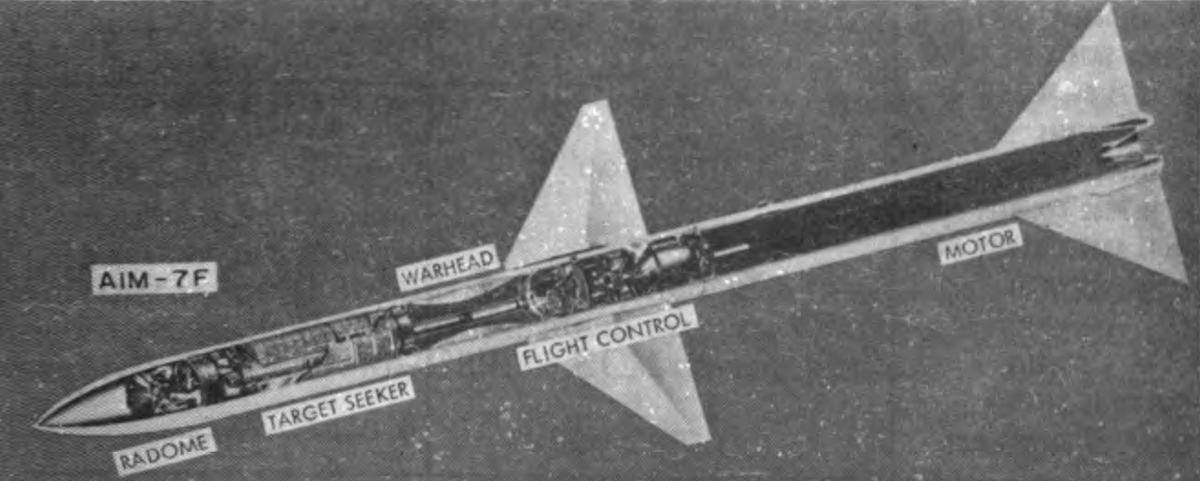

This redesign would arrive in 1976, with the AIM-7F. This missile, while still retaining many features of the AIM-7E, can nearly be considered a new missile altogether. It was solid-state, had improved durability and reliability, longer range, and a new pulse-doppler seeker.
The AIM-7F's incredibly expensive and protracted development will have to be a topic for another day.
@Darkwand The 7F was the one that improved the low altitude performance significantly through full PD illumination.
• • •
Missing some Tweet in this thread? You can try to
force a refresh
The APG-63 thread is going to end up as a whole article on my substack, probably. But we'll do some stuff here for now.
APG-63, while not massively revolutionary on its own, put a bunch of advanced(for the time) radar design elements together into one.
By the mid-1980s, it was one of the most powerful and effective fighter radars that ANY nation possessed.
How did it get to be so good?
The answer lies in Hughes innovation and careful design.
The F-15, designed to be a fighter to solve the deficiencies of the F-4E in Vietnam, put a high focus on flight performance, easy maintenance, and high reliability. This was a requirement carried over to the radar.
The feature of the F-106 that I am by far the most interested in(and know very little about) is multi-sensor FCS integration. This is something I know about primarily from secondhand sources, corroborated by only a few primary sources such as this passage.
Pilots indicate that the IR and Radar could be slaved to one another to allow for a more stable lock through one type of countermeasure, IRCM or ECM. One pilot report suggests that the IRSTS, against a cold, clear sky, could outrange the radar against BOMARC targets!
The IRSTS most likely used a similar InSb detector to that of the AIM-4G/D, given that they were introduced around the same time (1963) and were both made by Hughes. Unfortunately, I have no details about this.
Now for something a little more amusing.
The AIM-9E was a Philco-Ford built "upgrade" of the AIM-9B. It gained a higher spin rate reticle, 100hz up from 75, a narrower seeker FOV, and a peltier-cooled IR detector.
From the reports I can find, it was somehow worse than the 9B.
Unlike the nitrogen-cooled AIM-9D, the peltier cooler did not bring down the temperature as much. This left the AIM-9E operating in a very similar IR band to that of the AIM-9B, rather than the longer wavelength of the 9D. Nonetheless, it extended the range by increasing the SNR.
Furthermore, the narrower field of view of the 9E seeker(2.5 degrees compared to 4 of 9B), when coupled with the same painfully slow track rate of 12 deg/sec(same as 9B), may have contributed to a vast number of AIM-9Es missing their targets outright.
Another piece of AIM-4 slander that I find amusing in context is the lack of a proximity fuse. This, inevitably, is comparing the AIM-4 to the AIM-9B/E/D/G of the pre-70 Vietnam air war.
The IR-based fuse for the early AIM-9 had a nasty habit of exploding behind the target.
The Mk 303 on the AIM-9B/E worked on the same IR band as the guidance and control unit, which was most sensitive to tailpipe IR emissions. This meant that the most successful AIM-9 shots went straight up the tailpipe of the target, or were very close to it.
However, it also meant that on some targets, depending on the heat of the exhaust and the approach aspect, the AIM-9s could detonate prematurely or pass by the target before detonating!
