Open_ERV Profile picture
@open_erv
Jan 16 • 4 tweets • 1 min read • Read on X

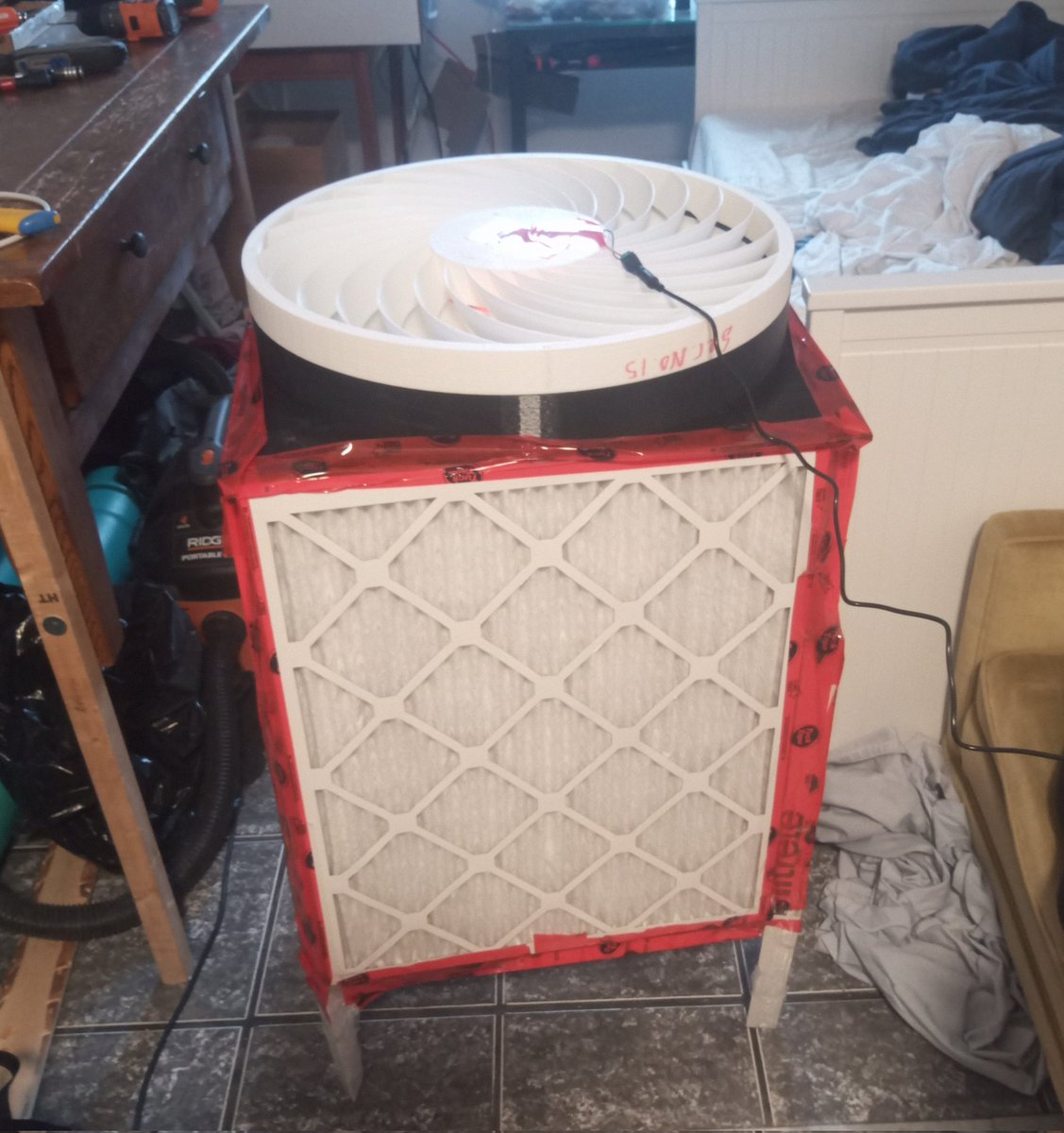

A big quiet fan with 10 merv 13 filters is ready to go to foulab tonight, to be the first actual real world install of the bqf in a community space! Filtering tons of air very quietly :). Should be about 1200 cfm actual cadr with these crummy filters, at 40.6 dBa. Image
I made a video so you can see the air flowing around with some fog/"smoke". It's the actual cadr that matters of course.
The fan can be cranked up to 400 rpm, which should give about 1560 cfm cadr, with more noise of course. For peak periods. It will also be good to capture sawdust etc. At 25 cfm per person which should chop infection by 75% or something, that's enough for 62.5 people!
It is probably possibly to get much higher power out of the motor, but I haven't tried it.

• • •
