In machine learning, the inner product (or dot product) of vectors is often used to measure similarity.

However, the formula is far from revealing. What does the sum of coordinate products have to do with similarity?

There is a very simple geometric explanation!

🧵 👇🏽
There are two key things to observe.

First, the inner product is linear in both variables. This property is called bilinearity.
Second, is that the inner product is zero if the vectors are orthogonal.
With these, given an 𝑦, we can decompose 𝑥 into two components: one is orthogonal, while the other is parallel to 𝑦.

So, because of the bilinearity, the inner product equals to the inner product of 𝑦 and the parallel component of 𝑥.
If we write 𝑦 as a scalar multiple of 𝑥, we can see that their inner product can be expressed in terms of the magnitude of 𝑦 and the scalar.
In addition, if we assume that 𝑥 and 𝑦 have unit magnitude, the inner product is even simpler: it describes the scaling factor between 𝑦 and the orthogonal projection of 𝑥 onto 𝑦.

Note that this factor is in [-1, 1]. (It is negative if the directions are opposite.)
There is more. Now comes the really interesting part!

Let's denote the angle between 𝑥 and 𝑦 by α. The scaling factor r equals the cosine of α!

(Recall that we assume that 𝑥 and 𝑦 have unit magnitude.)
If the vectors don't have unit magnitude, we can simply scale them.

The inner product of the scaled vectors is called cosine similarity.

This is probably how you know this quantity. Now you see why!
If you have liked this thread, consider following me and hitting a like/retweet on the first tweet of the thread!

I regularly post simple explanations of seemingly complicated concepts in machine learning, make sure you don't miss out on the next one!

• • •

Missing some Tweet in this thread? You can try to force a refresh


Keep Current with Tivadar Danka

Tivadar Danka Profile picture

Stay in touch and get notified when new unrolls are available from this author!

Read all threads

This Thread may be Removed Anytime!

PDF

Twitter may remove this content at anytime! Save it as PDF for later use!

Try unrolling a thread yourself!

how to unroll video
  1. Follow @ThreadReaderApp to mention us!

  2. From a Twitter thread mention us with a keyword "unroll"
@threadreaderapp unroll

Practice here first or read more on our help page!

More from @TivadarDanka

Jul 5
If I had to learn Math for Machine Learning from scratch, this is the roadmap I would follow: Image
1. Linear Algebra

These are non-negotiables:

• Vectors
• Matrices
• Equations
• Factorizations
• Matrices and graphs
• Linear transformations
• Eigenvalues and eigenvectors

Now you've learned how to represent and transform data. Image
2. Calculus

Don't skip any of these:

• Series
• Functions
• Sequences
• Integration
• Optimization
• Differentiation
• Limits and continuity

Now you understand the math behind algorithms like gradient descent and get a better feeling of what optimization is. Image
Read 6 tweets
Jul 3
Behold one of the mightiest tools in mathematics: the camel principle.

I am dead serious. Deep down, this tiny rule is the cog in many methods. Ones that you use every day.

Here is what it is, how it works, and why it is essential. Image
First, the story.

The old Arab passes away, leaving half of his fortune to his eldest son, third to his middle son, and ninth to his smallest.

Upon opening the stable, they realize that the old man had 17 camels. Image
This is a problem, as they cannot split 17 camels into 1/2, 1/3, and 1/9 without cutting some in half.

So, they turn to the wise neighbor for advice. Image
Read 18 tweets
Jul 3
The single biggest argument about statistics: is probability frequentist or Bayesian?

It's neither, and I'll explain why.

Buckle up. Deep-dive explanation incoming. Image
First, let's look at what is probability.

Probability quantitatively measures the likelihood of events, like rolling six with a dice. It's a number between zero and one.

This is independent of interpretation; it’s a rule set in stone. Image
In the language of probability theory, the events are formalized by sets within an event space.

The event space is also a set, usually denoted by Ω.) Image
Read 33 tweets
Jul 2

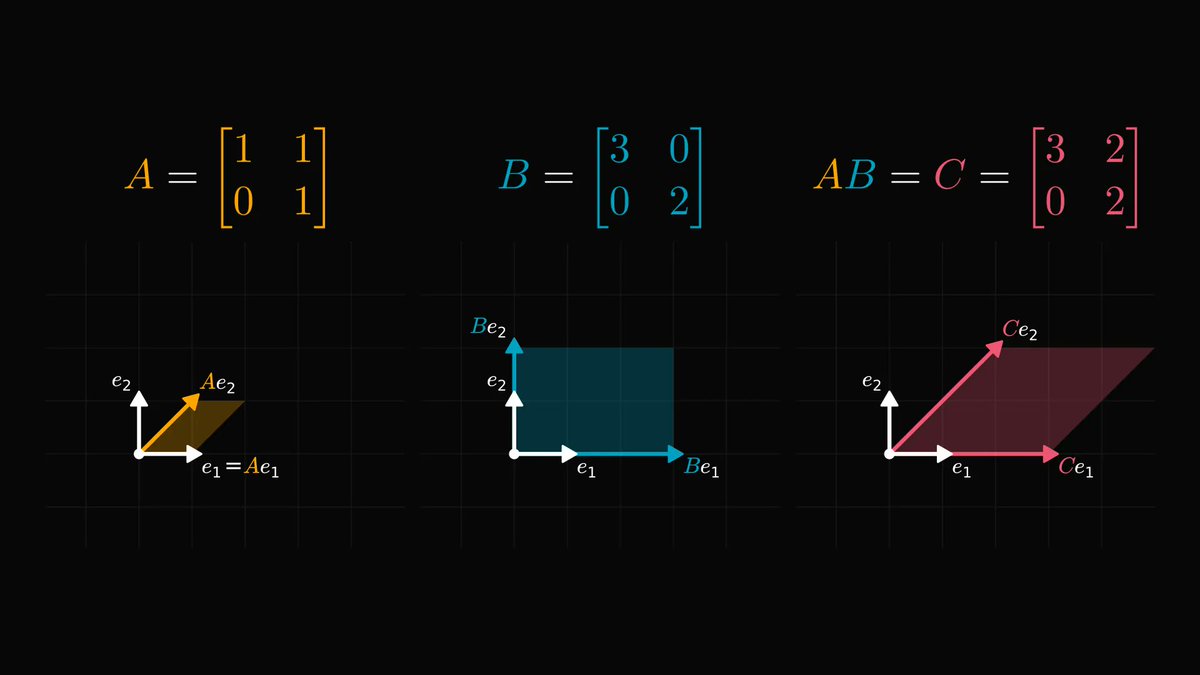

Matrix multiplication is not easy to understand.

Even looking at the definition used to make me sweat, let alone trying to comprehend the pattern. Yet, there is a stunningly simple explanation behind it.

Let's pull back the curtain! Image

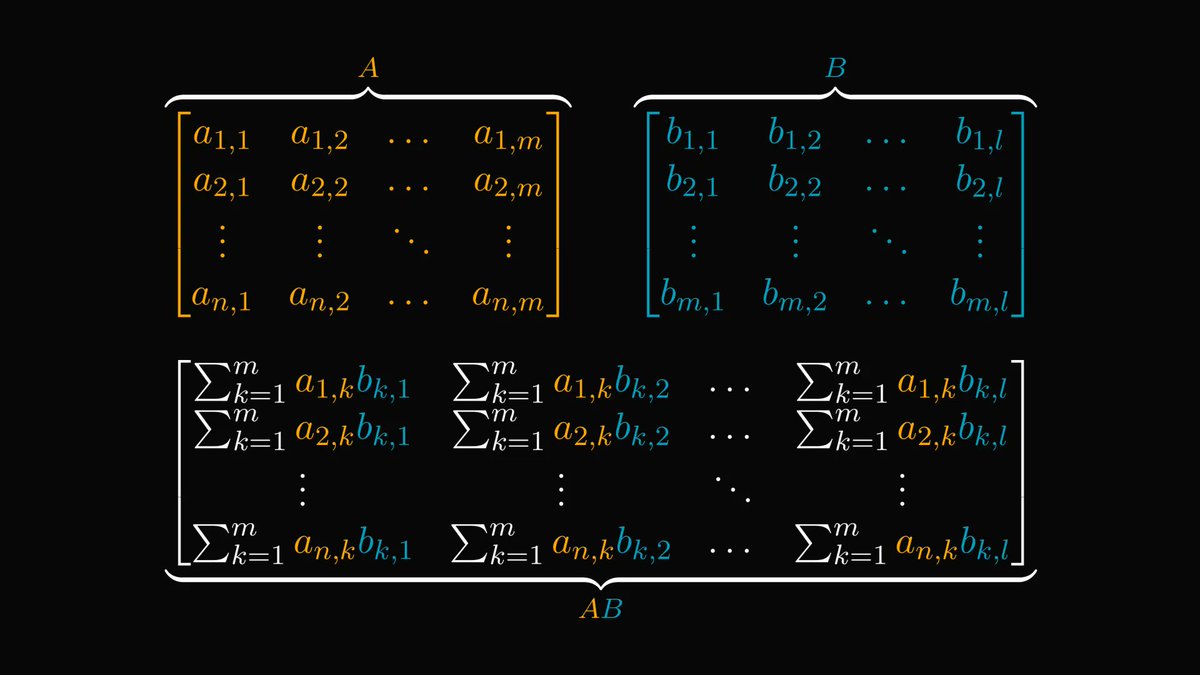

First, the raw definition.

This is how the product of A and B is given. Not the easiest (or most pleasant) to look at.

We are going to unwrap this. Image

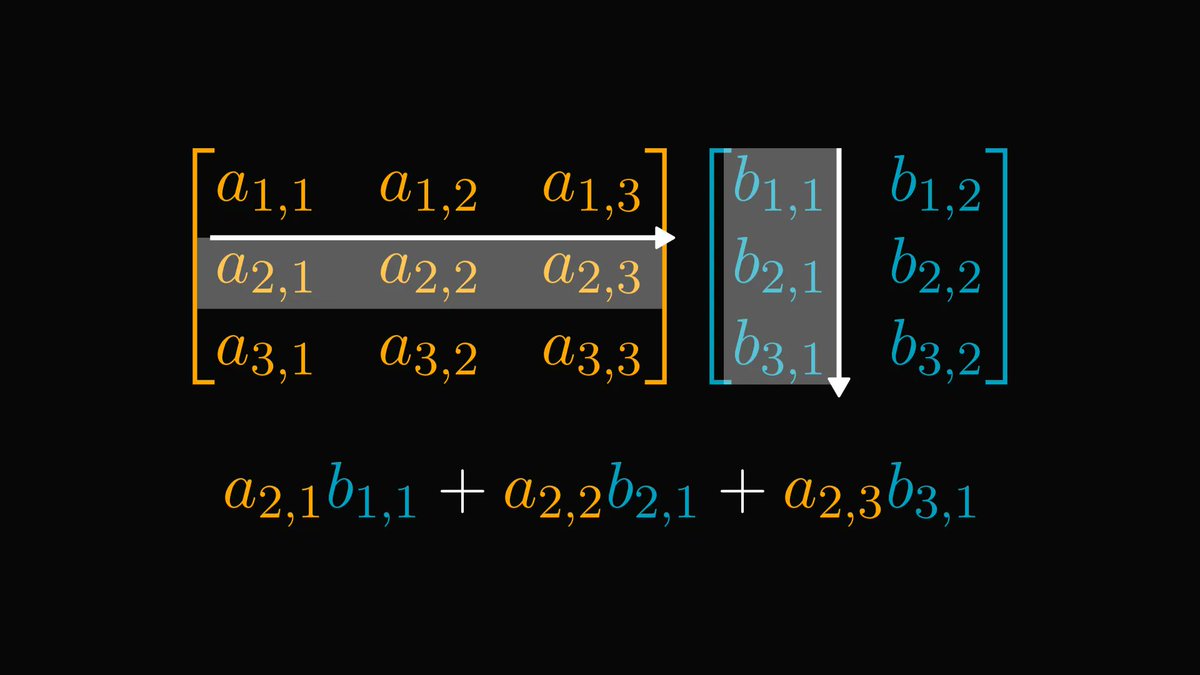

Here is a quick visualization before the technical details.

The element in the i-th row and j-th column of AB is the dot product of A's i-th row and B's j-th column. Image
Read 16 tweets
Jul 1
The single most undervalued fact of linear algebra: matrices are graphs, and graphs are matrices.

Encoding matrices as graphs is a cheat code, making complex behavior simple to study.

Let me show you how! Image
If you looked at the example above, you probably figured out the rule.

Each row is a node, and each element represents a directed and weighted edge. Edges of zero elements are omitted.

The element in the 𝑖-th row and 𝑗-th column corresponds to an edge going from 𝑖 to 𝑗.
To unwrap the definition a bit, let's check the first row, which corresponds to the edges outgoing from the first node. Image
Read 18 tweets
Jun 30
In calculus, going from a single variable to millions of variables is hard.

Understanding the three main types of functions helps make sense of multivariable calculus.

Surprisingly, they share a deep connection. Let's see why! Image
In general, a function assigns elements of one set to another.

This is too abstract for most engineering applications. Let's zoom in a little! Image
As our measurements are often real numbers, we prefer functions that operate on real vectors or scalars.

There are three categories:

1. vector-scalar,
2. vector-vector,
3. and scalar-vector. Image
Read 16 tweets
