Steve Ruiz

27 Jun, 9 tweets, 3 min read

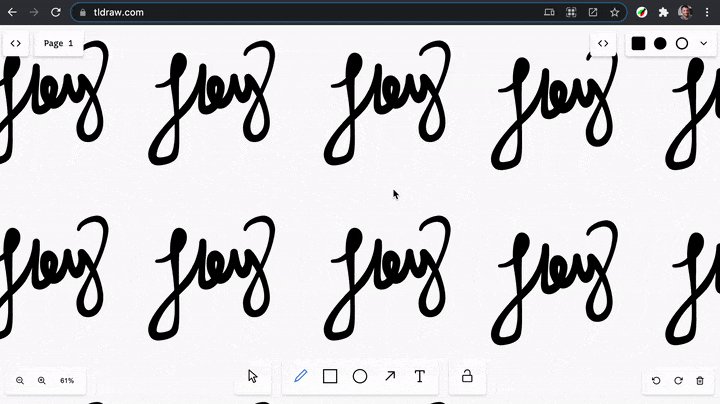

A few updates to tldraw.com. First off, lots of perf improvements, even when lots of shapes are on the screen. Slickest SVG canvas on the web.

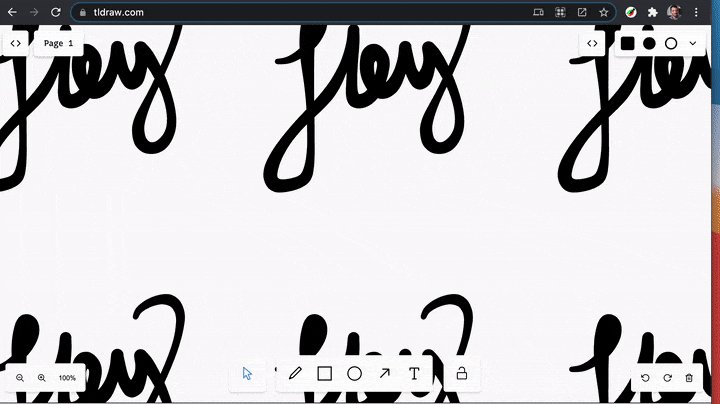

Slick when creating shapes, too.

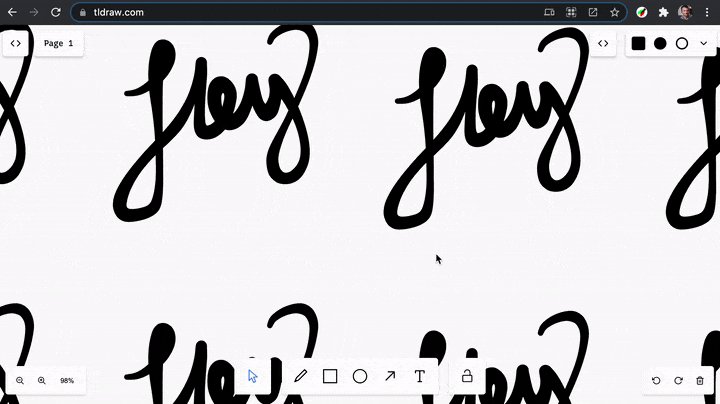

I'm also handling window resize events much better. There's a slight debounce before showing shapes that had previously fallen outside of the viewport.

(The gifs so far were all at regular speed, btw)

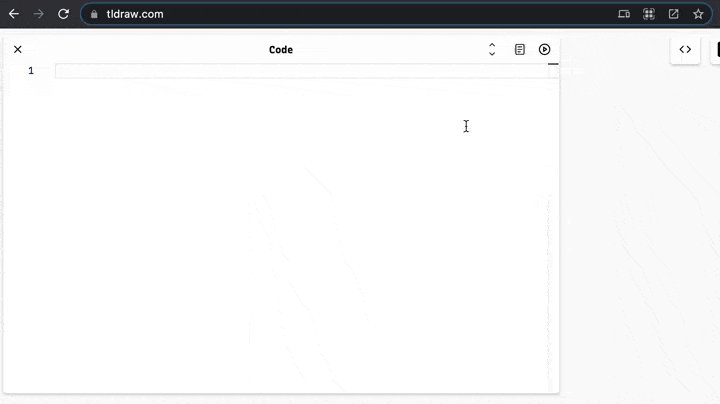

I've also added a Text and Arrows to the classes that can be used in the code editor, along with a new TextControl for setting text.

We've also got a good start on the code editor's docs.

There's been plenty of under-the-hood work on the code editor (essentially building a public object-oriented API around the private functional one).

And even further under the hood, you'll find a few dozen new tests. Already finding and fixing plenty of bugs, and now that I've got the framework all set up, I'm on my way to total coverage for user actions. Pretty wild to see how many things you can do in this app.

Thanks again to the 92(!) of you who have sponsored me and this project. Check it out for yourself at tldraw.com.

• • •
