Primera construcción de un #corsirosenthalbox en #Espana

4 filtros de @Camfil_es (EPM1 50% camfil.com/es-es/products…)

Un ventilador de Secotec amazon.es/dp/B092JDVRT7/…

Un poco de cinta americana y el mismo embalaje de cartón de los filtros y el ventilador

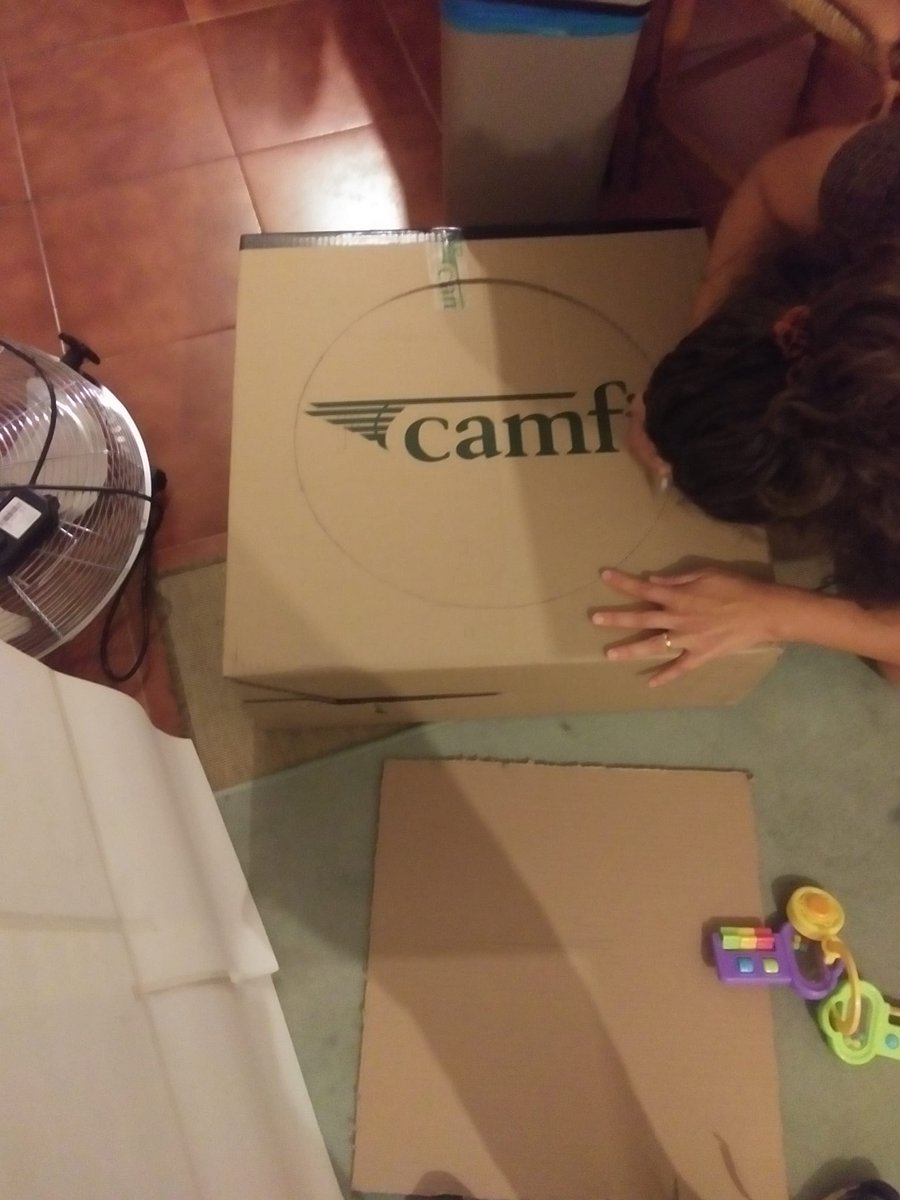

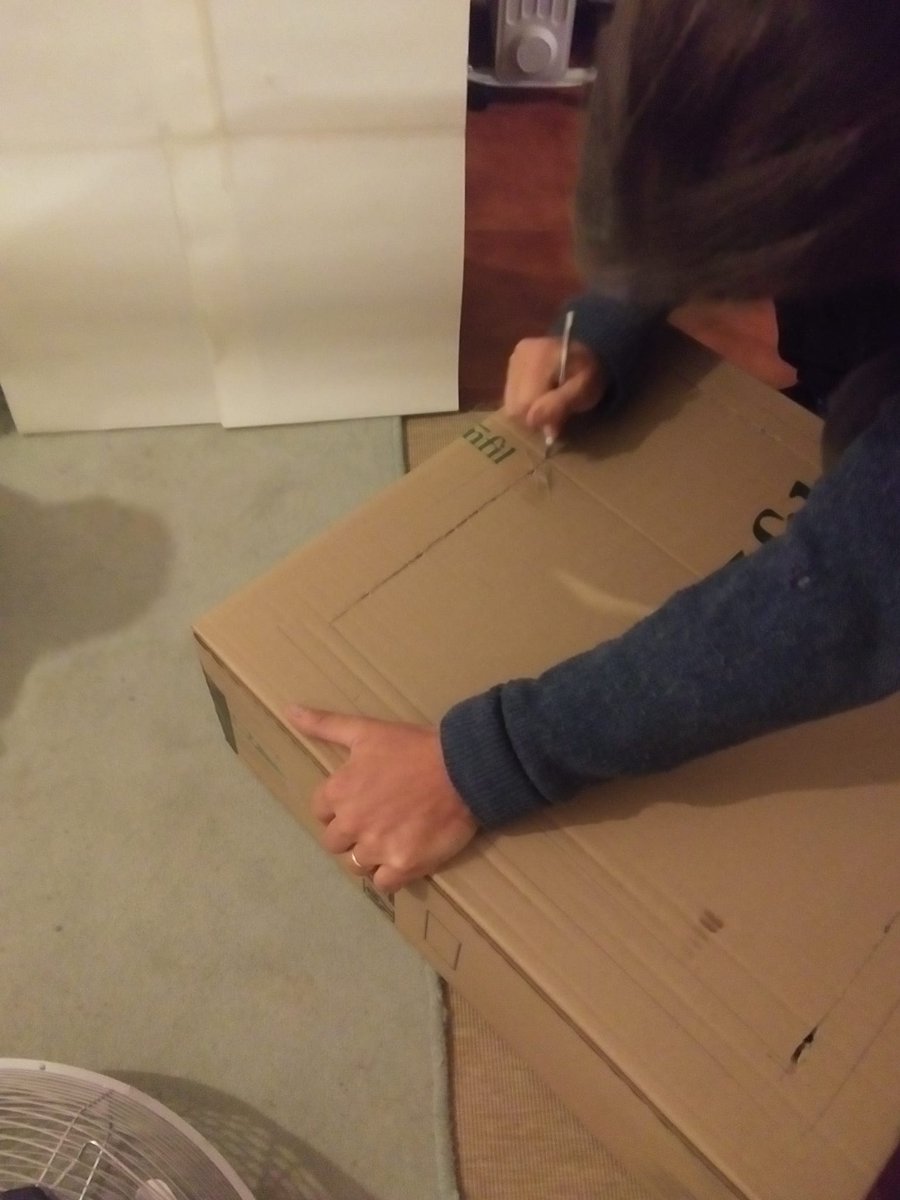

Aquí la fabricación - bastante más facil que el montaje de una estantería de IKEA o parecido.

Especialmente siguiendo esta guia excelente de @ughberta

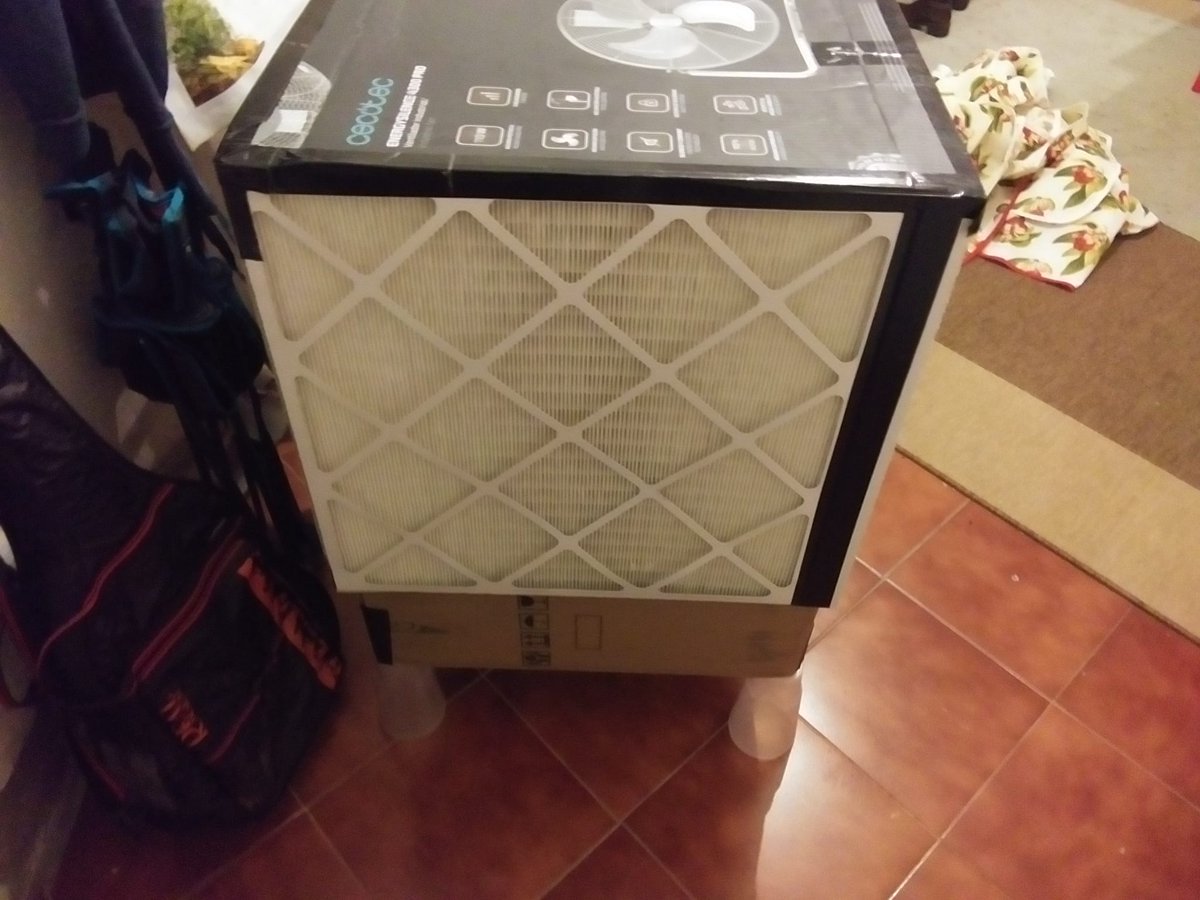

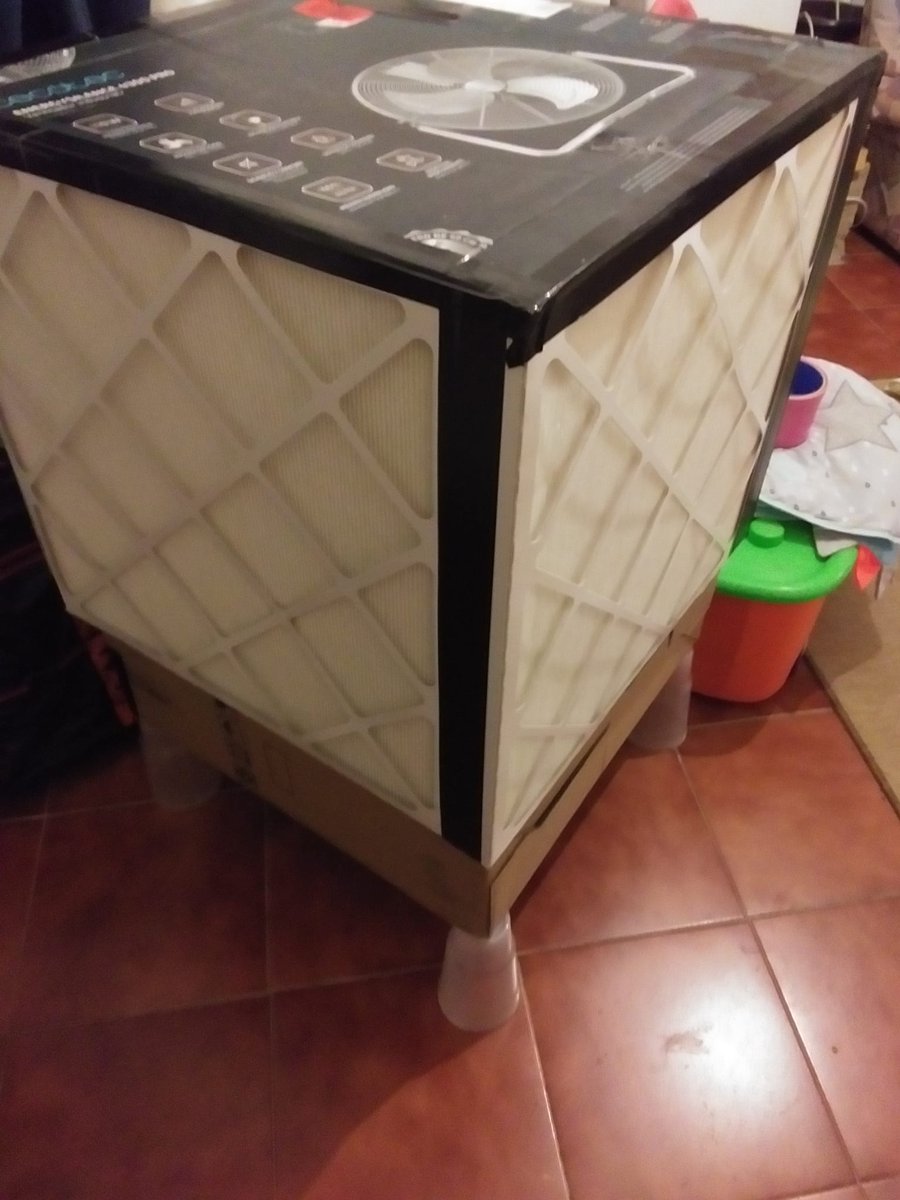

Aquí el montaje completo

Es muy grande - muy potente - posiblemente más apto para un comedor o un teatro o una sala de actos en vez de un bar de barrio.

Recomendaría pedir filtros más pequeños para una caja más pequeña o usar 2 filtros en forma de triángulo o quizás ...

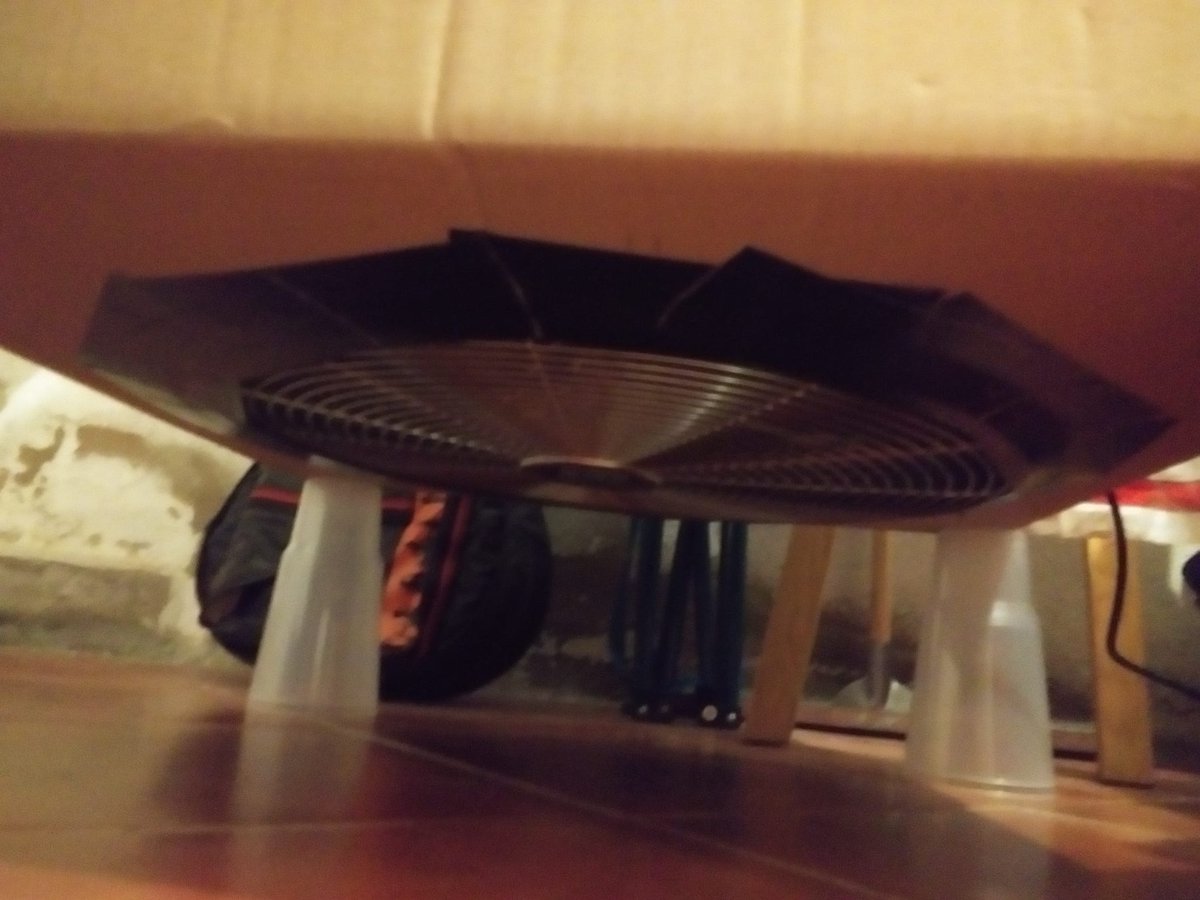

... un solo filtro encima del ventilador en su caja.

No hemos medido la potencia pero según esta guia de @aireamos sorprendería si no estuviera de los más eficientes (coste / CADR) - ójala el más eficiente, y ójala con diferencia!

aireamos.org/wp-content/upl…
El coste total del aparato ha sido alrededor de 180 euros.

130 euros (approx) 4 filtros
50 euros (approx) ventilador
5 euros (approx) Un rollo de cinta americana
Creo que nos vendría bien tener un nombre más españolizado. Sugerencias?

Bricofiltro ?
Filtromontaje ?
Quitakakas (versión aérea) ?

• • •
