𝔗𝔥𝔢 𝔇𝔢𝔞𝔡 𝔇𝔦𝔰𝔱𝔯𝔦𝔠𝔱 🇬🇪🇺🇦🇺🇲🇬🇷 Profile picture
@TheDeadDistrict
Oct 8, 2022 • 19 tweets • 8 min read • Read on X
Scrolly
GDLS presented AbramsX Technology Demonstrator.
#AbramsX #MBT
Screenshots from video ImageImageImageImage
Reduces fuel consumption by 50%
The AbramsX is equipped with the parallel hybrid electric Powerpack, which is consist of Cummins Advanced Combat Engine (ACE) & SAPA Advanced Combat Transmission(ACT)
ACE have better⛽️efficiency than old type of engines, and it's a smaller engine overall, and generates more power Image
ACT is a family of high power density transmissions.
This new transmission design removes or replaces the most inefficient elements of a conventional transmission with highly efficient gears, improving transmission efficiency in even the worst situations to over 90%. Image
New gun for the AbramsX

In comparison with the M256, XM360 has same caliber and length (without muzzle brake) but it is almost half of M256 weight and have lower recoil. ImageImageImage
Detailed comparison of XM360 with M256 ImageImage
🤗 Image
Can this be a type of Trophy APS radar and optical sensor? ImageImage
There are clearly visible the LWR, Trophy radar with optic and folded launcher. Image
Via "tankersofficial" ImageImageImageImage
Crew compartment Image
The weight of the AbramsX is 54 short tons (49 metric tons).

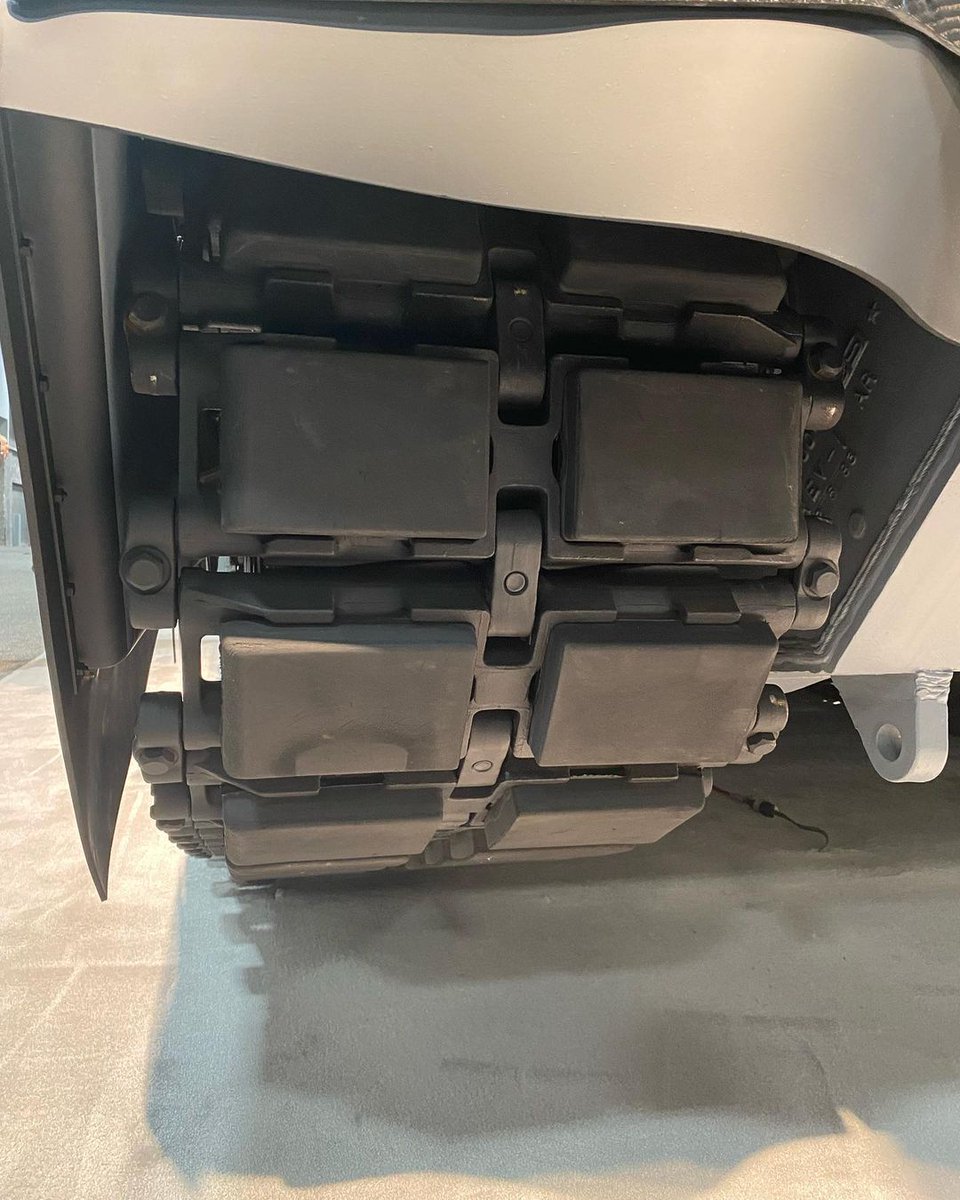

Weight reduced due to the new hybrid engine, lighter tracks, reduced fuel consumption and XM360 gun (which is 1.85 T lighter than M256), also reduced the turret internal volume. ImageImageImage
GDLS MD9016 Multi-Function Display for AbramsX and other vehicles twitter.com/i/web/status/1… Image
Video of GDLS MFSs.
Ultra-rugged, lightweight, and ultra-high-res. The MD9016 multi-function display unit offers outstanding real-time high-definition driver vision across a wide range of combat vehicle platforms. Image

• • •
