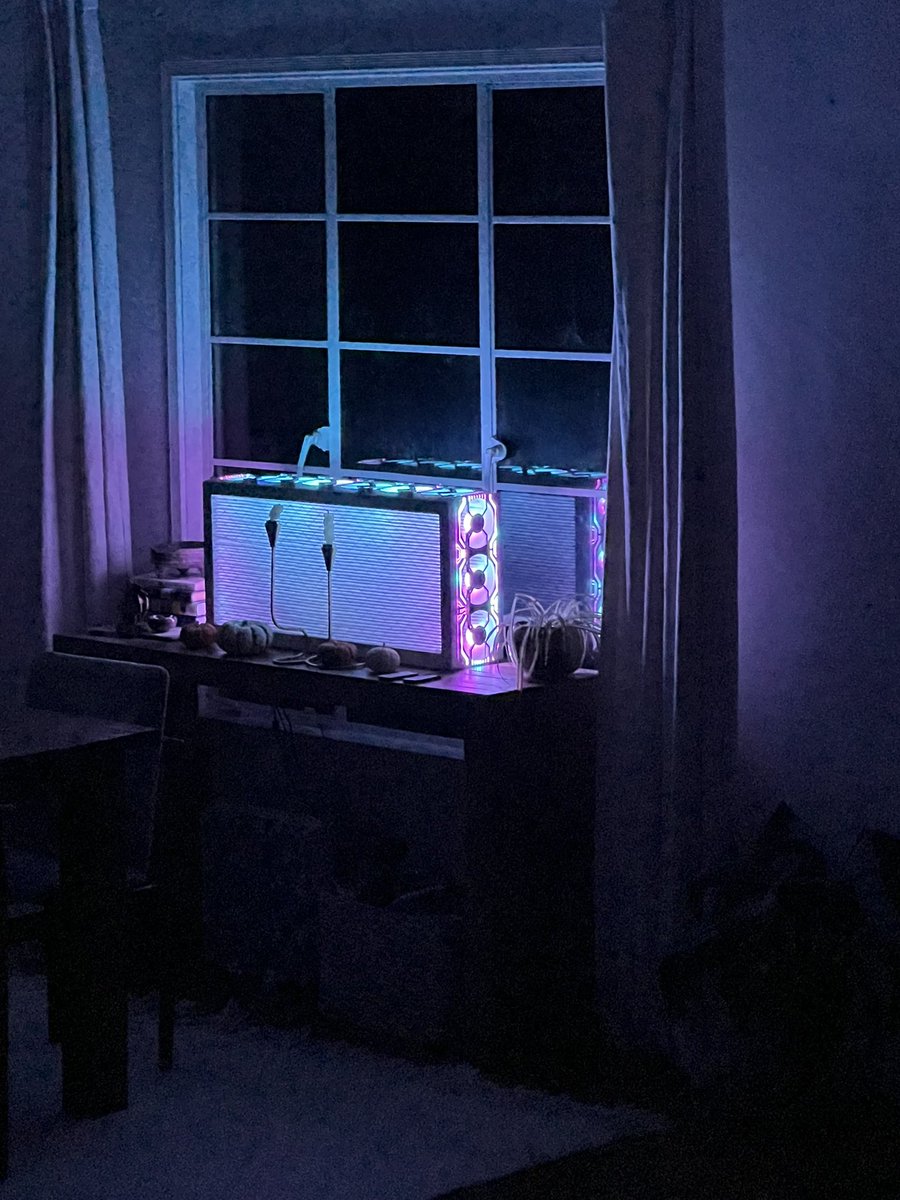

Fresh #crbuild @robwiss mega-sandwich style. 2x @3m Filtrete 14x30, 12 (new record?) fans total, 6 Asiahorse s001 on top and 2x Matrix 360 3-fan units for the sides. 660cfm raw. 2 controllers for visual fx, overkill. Finally you can eat without worries 😄#crbox #corsirosenthalbox
Some stills. I will try and post a complete parts list but I’d like to simplify it first, this was made from a bunch of stuff I had rather than tuned for ease of build
567 CADR, theoretical. 41db 1m from the filter face, 45db 1m out from the fan. Pretty quiet, quieter than 9 fan AL Panel because it has 3 more fans but double the filter surface area. Much less resistance so fans run quieter, more cadr.
Moved it to the side until we have guests

• • •
