Missiles of Ukraine I - Sapsan
OTRK (Operational-Tactical Missile System) "Sapsan" [peregrine in ๐Ÿ‡บ๐Ÿ‡ฆ] is a prospective single-stage, solid-fuel, short-range ballistic missile system. It has been under development in various forms since the mid-90s under a variety of names. 1/46 ImageImage
For clarity, Sapsan currently refers to the domestic variant, while "Hrim-2" ["thunder" in ๐Ÿ‡บ๐Ÿ‡ฆ] refers to the reduced range (MCTR compliant) export version. Itโ€™s also been referred to as "Grom" ["thunder" in ๐Ÿ‡ท๐Ÿ‡บ] or "Grim," a corruption of Hrim. 2/46
There is a profound asymmetry between ๐Ÿ‡ท๐Ÿ‡บโ€™s ability to strike targets in ๐Ÿ‡บ๐Ÿ‡ฆ and ๐Ÿ‡บ๐Ÿ‡ฆโ€™s ability to strike targets in occupied ๐Ÿ‡บ๐Ÿ‡ฆ territory and ๐Ÿ‡ท๐Ÿ‡บ. This asymmetry is a grave threat to both ๐Ÿ‡บ๐Ÿ‡ฆโ€™s war effort and its people that must be urgently addressed. 3/46 Approximate range circles f...
There are substantial critical ๐Ÿ‡ท๐Ÿ‡บ military assets deep in occupied-๐Ÿ‡บ๐Ÿ‡ฆ territory, particularly Crimea, that are largely inaccessible to ๐Ÿ‡บ๐Ÿ‡ฆ strikes. It is imperative that ๐Ÿ‡บ๐Ÿ‡ฆ gain the capability to reliably strike these targets. 4/46 Range estimates for M30/M31...Updated map depicting GMLRS...The maximum potential range...An undated satellite image ...
Equally, there are numerous enormously valuable strategic assets within ๐Ÿ‡ท๐Ÿ‡บ (and ๐Ÿ‡ง๐Ÿ‡พ) itself. These include airbases housing strategic bombers, AEW&C, and C2 aircraft; military factories; port facilities; C2 nodes; rail and road bridges along logistical arteries; etc. 5/46 Kaluga airbase in western R...Baranovichi airbase in cent...
Each of these represents a grave threat and they must be eliminated by any means available. If ๐Ÿ‡บ๐Ÿ‡ฆโ€™s allies are unable or unwilling to provide the relevant munitions, then we must aid the development, productionโ€ฆ 6/46
โ€ฆ, and deployment of capable domestic ๐Ÿ‡บ๐Ÿ‡ฆ systems and munitions. Sapsan is one of these munitions and it is arguably the most capable and significant ๐Ÿ‡บ๐Ÿ‡ฆ system that ๐Ÿ‡บ๐Ÿ‡ฆโ€™s allies can support the fielding of. 7/46
Design:
Sapsan is broadly analogous in its intended role to the ๐Ÿ‡ท๐Ÿ‡บ Iskander-M/K as well as the ๐Ÿ‡บ๐Ÿ‡ธ ATACMS and PrSM. It was originally conceived as a multi-role launch platform for both SRBMs and ground-launched cruise missiles. 8/46 Left: A 9P78-1 TEL (transpo...M142 HIMARS launching an AT...M142 HIMARS launching a PrS...Ukrainian infographic depic...
The published maximum range of Sapsan is 500 km (280-300 km for Hrim-2) with a 480 kg unitary or cluster munition warhead, likely derived from Tochka-U. The est. damage radius of the unitary warhead is ~55 m or a 10,000 - 30,000 sq. m area for the dispersal of submunitions. 9/46 Infographic depicting Sapsa...9M79K missile for Tochka-U ...Design of Sapsan's cluster ...Test article of Sapsan's cl...
According to the designers, the 500 km max range is a political restriction as ๐Ÿ‡บ๐Ÿ‡ฆ had been abiding by the INF though not technically a party to the treaty. It should be possible to increase the maximum range to 1,500 km, making it a medium-range ballistic missile. 10/46 Graphic of U.S. and Soviet ...Classifications of ballisti...
Such a dramatic increase in range is achievable by using a lighter warhead combined with reductions in structural mass and improvements to motor performance. It is also possible that a small second-stage or kick-stage motor could be added as well (this is my speculation). 11/46
Guidance is via GNSS/INS (global navigation satellite system/inertial navigation system), likely using both GPS/GLONASS. This is supplemented by a choice of four active seeker heads: electro-optical contrast (EO), infrared (IR), active radar (3 mm), or combined EO/radar. 12/46 Example: GNSS/INS guidance ...Active seeker heads develop...Active seeker heads develop...

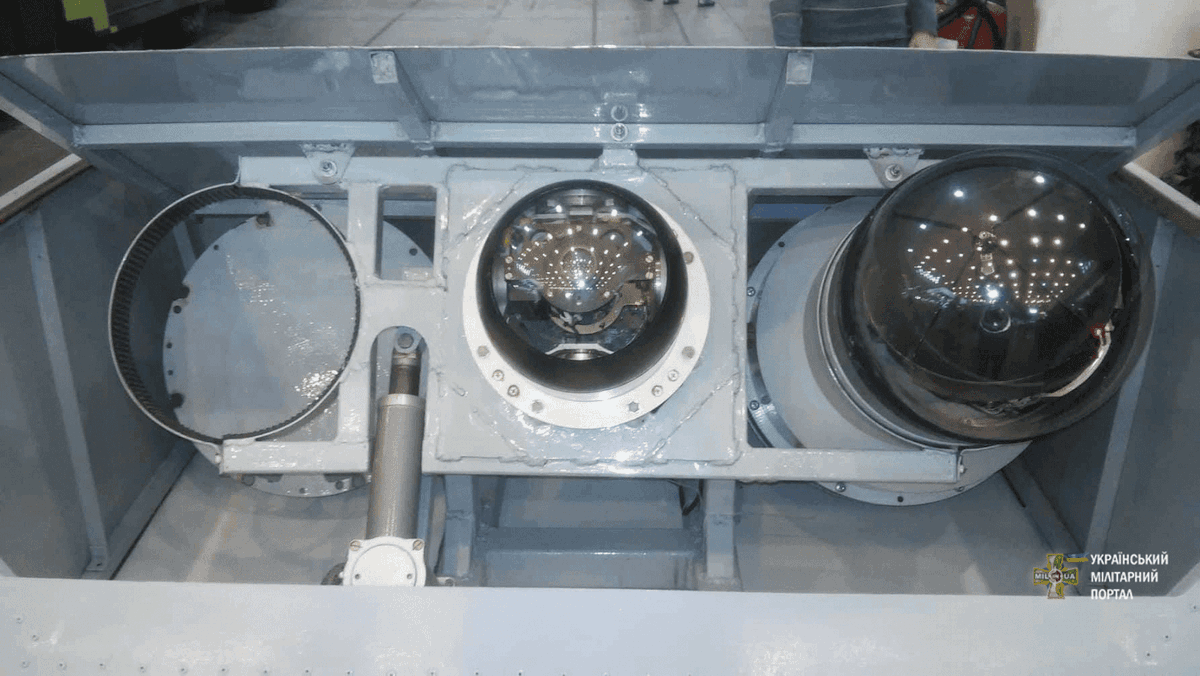

These seeker heads work by observing the terrain beneath the missile in their respective wavelengths and comparing it to a pre-loaded terrain map to estimate position. Combined with GNSS, this is used to correct the inherent INS drift/error that accumulates in flight. 13/46 Principles of terrain-conto...Typical missile guidance pr...
Sapsan can follow ballistic and quasi-ballistic trajectories as well as maneuver during flight to extend its range and evade ballistic missile defense (BMD) systems. Maneuvering is performed using both aerodynamic control surfaces and a series of attitude control thrusters. 14/46 Various trajectories that a...Sapsan's aft attitude contr...Sapsan's forward attitude c...
Much like ATACMS and PrSM, Sapsanโ€™s terminal flight profile is thought to include a near-vertical dive toward its target to maximize both terminal velocity and precision. Terminal velocity is likely in excess of Mach 4 and probably in the range of Mach 5-6. 15/46 Flight profile of a Pershin...
It is also notable that relatively modern and sophisticated manufacturing techniques were used in its construction. The use of additive manufacturing (3D printing) and powder metallurgy for metal components and a composite (e.g. carbon fiber) motor casing were referenced. 16/46 Sapsan's solid rocket motor...Sapsan mock-up on the facto...
Capabilities:
If operational, Sapsan would provide a potent standoff capability to ๐Ÿ‡บ๐Ÿ‡ฆ. A 280+ km range would enable deep strikes anywhere within occupied ๐Ÿ‡บ๐Ÿ‡ฆ (including Crimea), not to mention deep within ๐Ÿ‡ท๐Ÿ‡บ itself, particularly if the range is enhanced to >500 km. 17/46 300 km range circles for AT...
The option of a cluster munition warhead offers enhanced capabilities against dispersed targets that the latest versions of ATACMS, having only a unitary warhead, lack. This is especially valuable when targeting installations such as airbases where targets may be dispersed. 18/46 M39 ATACMS dispersing submu...Impact and detonation of su...
Sapsan being ๐Ÿ‡บ๐Ÿ‡ฆ designed and manufactured mitigates potential restrictions that might be attached to the use of foreign-provided systems like ATACMS. This would give ๐Ÿ‡บ๐Ÿ‡ฆ a much freer hand to strike critical targets in ๐Ÿ‡ท๐Ÿ‡บ such as airbases, military factories, or C2 nodes. 19/46
๐Ÿ‡ท๐Ÿ‡บ IAMDS (integrated air & missile def. system) would be severely challenged by Sapsan. As a ๐Ÿ‡ท๐Ÿ‡บ miblogger notes, itโ€™s unlikely that S-300/400s near the target could intercept Sapsan in terminal phase as it would descend in the funnel-esque radar dead zone above S-300/400. 20/46 Russian S-400 system with e...An example of an overhead g...
In this dead zone, command-guided, semi-active radar homing (SARH), and track-via-missile (TVM) interceptors are ineffective if they rely on organic ground-based radars for off-board target illumination. This includes the standard 5V55 and 48N6 interceptors for S-300/400. 21/46 5V55KD interceptor used by ...48N6 interceptors used by S...Principles of ARH, SARH, an...Principles of TVM guidance.
Providing illumination using airborne or remote radar inorganic to the launching system could potentially solve this issue, but itโ€™s unclear if ๐Ÿ‡ท๐Ÿ‡บ IAMDS has achieved the necessary level of integration or operator skill to perform this kind of interception. 22/46 The basic premise of an int...Principles of launch and en...
A recent report from @RUSI_org on VKS (๐Ÿ‡ท๐Ÿ‡บ Air Force) operations has revealed notable deficiencies in the integration of ๐Ÿ‡ท๐Ÿ‡บ A-50U/M AEW&Cs aircraft and Il-20M relay/C2 aircraft that has degraded their ability to pass useful fire control data to relevant S-300/400 systems. 23/46 Russian A-50U/M airborne ea...Russian Il-20M C2/relay air...Excerpt from the RUSI report.
๐Ÿ‡ท๐Ÿ‡บโ€™s dilemma is further worsened by Sapsanโ€™s estimated 25-70+ km apogee. A mid-course intercept at the upper end of those altitudes is likely outside S-300/400โ€™s engagement envelope for most available interceptors. 24/46 "Engagement zone of th..."Engagement zone of th..."Measured time-speed d..."S-400 engagement zone...
Sapsanโ€™s extreme maneuverability due to its attitude control thrusters, estimated on the order of 20-25g overloads (equiv. to a rapid 90-degree turn). This likely significantly exceeds the maneuvering capabilities of 5V55 and 48N6 series interceptors. 25/46 "Engagement zone and m...
The proposed solution is the use of 9M96 series of ARH (active radar homing) interceptors from an S-350 system (though S-300/400 also support 9M96). It is cited as ๐Ÿ‡ท๐Ÿ‡บโ€™s only interceptor maneuverable enough to intercept a ballistic target maneuvering with 20-25g overloads. 26/46 9M96 interceptor.S-350 SAM system.S-300/400 TEL loaded with a...
The 9M96โ€™s ARH combined with its INS and mid-course update capability would potentially enable interceptions in the radar dead-zone. The availability of 9M96 is unclear. It has yet to be publicly observed deployed in/near theater outside of a lone S-350 system in Taganrog. 27/46 Russian S-350 system deploy...
Equally, I will speculate that ๐Ÿ‡ท๐Ÿ‡บ IAMDS would likely be unable to reliably intercept Sapsan given S-300/300V/400โ€™s observed inability to intercept GMLRS and the failure to intercept the ballistic missiles (likely ATACMS or Sapsan) that were used to strike the Saky air base. 28/46 Explosions from the strike ...Explosions from the strike ...
It is also notable that during the Nargorno-Karabakh War in 2020, ๐Ÿ‡ฆ๐Ÿ‡ฒ S-300s totally failed to engage, let alone intercept, any of the ๐Ÿ‡ฎ๐Ÿ‡ฑ-made LORA tactical BMs deployed by ๐Ÿ‡ฆ๐Ÿ‡ฟ. Like Sapsan, LORA is capable of maneuvering and following quasi-ballistic trajectories. 29/46 Israeli LORA tactical balli...LORA in flight.LORA in terminal flight imm...
The major unknown among Sapsanโ€™s capabilities is its precision beyond vague statements of โ€œmeters.โ€ Vilkha-M, a ๐Ÿ‡บ๐Ÿ‡ฆ precision-guided MRL (multiple rocket launcher) round with GNSS/INS, has a quoted CEP (circular error probable) of <30 m at 120 km or <10 m at 70 km. 30/46 The basic definition of cir...Infographic with publish pa...
While quite poor compared to analogous ๐Ÿ‡บ๐Ÿ‡ธ systems, Sapsanโ€™s CEP is likely superior to Vilkha-M as Sapsan has active seekers that Vilkha-M lacks, in addition to GNSS/INS. It is also possible that Sapsan may have a higher quality GNSS/INS package given its intended role. 31/46
Readiness-
All these technical details come back to the fundamental question, does Sapsan exist? Is it operational? The short answer: It is uncertain but possible. When the program was restarted in 2021 after being paused since 2019, development was reportedly 80% complete. 32/46
Prior to 2021, the solid rocket motor had successfully undergone hot fire testing and at least 12 motors had been manufactured. Development and testing of the active seeker heads had also reportedly been completed as had warhead testing. 33/46 Sapsan motor manufacturing.Motor hot-fire test.Motor hot-fire test.Testing of one of Sapsan's ...

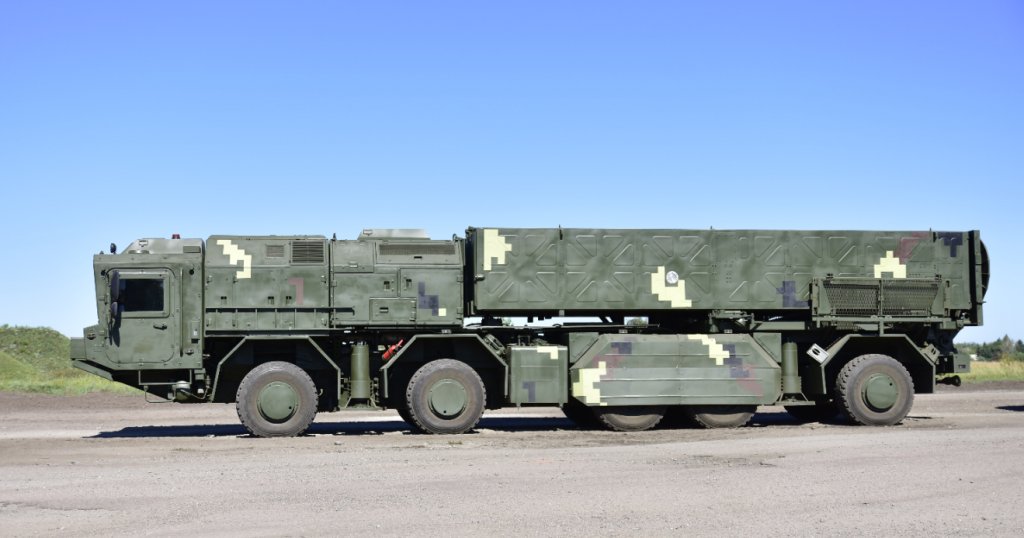

At least two TELs had been manufactured, one for Sapsan and one for Hrim-2. Itโ€™s important to note that Sapsan and Hrim-2 differ in diameter, ~900 mm and ~600 mm respectively. It is unclear if a Hrim-2 TEL can support a 900 mm Sapsan missile or just a 600 mm Hrim-2. 34/46 Sapsan TEL.Hrim-2 TEL.
Now we come to export customers. According to ๐Ÿ‡บ๐Ÿ‡ฆ sources there were two prospective export customers for Sapsan. The first is ๐Ÿ‡ธ๐Ÿ‡ฆ. It has been widely reported that ๐Ÿ‡ธ๐Ÿ‡ฆ heavily financed the development of Hrim-2/Sapsan, contributing $70-200 mln. 35/46 Saudi men walking past a di...
It is known that in 2019 a prototype Hrim-2 system, including โ€œmotors, warheads, and spare partsโ€ was exported to ๐Ÿ‡ธ๐Ÿ‡ฆ for testing. It is unclear if the system was complete or included fully functional missiles or the prototype Hrim-2 TEL. 36/46
There were unconfirmed reports published a few months ago that ๐Ÿ‡ธ๐Ÿ‡ฆ had returned the Hrim-2 system to ๐Ÿ‡บ๐Ÿ‡ฆ as part of an agreement brokered by ๐Ÿ‡บ๐Ÿ‡ธ. However, details regarding any such agreement are scarce and it remains completely unknown if such a transfer occurred. 37/46
Following the resumption of the program in 2021, a number of changes were announced including a change in TEL to one based on a ๐Ÿ‡จ๐Ÿ‡ฟ Tatra chassis which was to become a multi-functional chassis supporting a number of other weapon systems. 38/46 An example of a Czech Tatra...The Tatra chassis used for ...
It is unclear how much, if any, funding was actually allocated for the program in 2021. According to @TarasChmut, significant funding wasnโ€™t actually allocated until 2022, with a specific focus on completing the 280 km Hrim-2 variant. 39/46
It was also reported that following the programโ€™s resumption, the ๐Ÿ‡บ๐Ÿ‡ธ apparently expressed interest in procuring the system (the other prospective customer). Iโ€™ll speculate that the ๐Ÿ‡บ๐Ÿ‡ธ wanted to either evaluate it or procure some of the underlying technology. 40/46
The big news was a report from @BBC_ua published in Sep. concerning an espionage case involving KB โ€œPivdenne,โ€ which is involved in development. It indicated that development of Sapsan had been completed by late June 2022 and serial production was being initiated. 41/46
It is unclear if this referred to the development of Sapsan specifically or Hrim-2 (or both). Likewise, it is equally unclear if serial production referred to Sapsan or Hrim-2. From an engineering standpoint, a less ambitious 280 km variant would be easier to complete. 42/46
However, a ๐Ÿ‡ท๐Ÿ‡บ cruise missile strike on July 2 against a facility in Pavlohrad, likely the solid propellant production plant, reportedly disrupted these efforts. This was followed by a ๐Ÿ‡ท๐Ÿ‡บ strike against the primary Pivdenmash manufacturing plant in Dnipro on July 16. 43/46 Russian cruise missile stri...Russian cruise missile stri...
Pivdenmash is one of ๐Ÿ‡บ๐Ÿ‡ฆโ€™s primary rocket and missile manufacturers and was heavily involved in Sapsanโ€™s creation. Itโ€™s unclear what the long-term impacts of such strikes on development would be. Per the @KyivPost, itโ€™s widely believed that most of Pivdenmashโ€™sโ€ฆ 44/46 Pivdenmash and KB Pivdenne ...
โ€ฆmissile production lines are located in underground facilities hardened against nuclear strikes. A legacy of the Soviet Unionโ€™s civil defense paranoia. This is somewhat speculative since official details were state secrets of the USSR and continued as state secrets of ๐Ÿ‡บ๐Ÿ‡ฆ. 45/46
There has not been any additional reporting on the programโ€™s status since September. I will consider appending a sequel to this thread in the event there is additional reporting on the status of the program in the future. 46/46
A massive thanks and shoutout to @DEFENSEEXPRESS for their fantastic coverage of Sapsan and many other ๐Ÿ‡บ๐Ÿ‡ฆ weapon systems. This thread would not have been possible without their reporting. Stay tuned for Part II of this series covering ๐Ÿ‡บ๐Ÿ‡ฆโ€™s Neptun AShM in the coming weeks.
