#echofirst TTE for sure first line of defense in diagnostic workup as we look for dimension, volumes and function to follow GL for decision making
but once #echofirst made clear that there is significant pathology with consecutive enlargement of LV and LA we must hunt down the jet, here we see 2 jets. Now call for TEE or can we proceed with TTE?

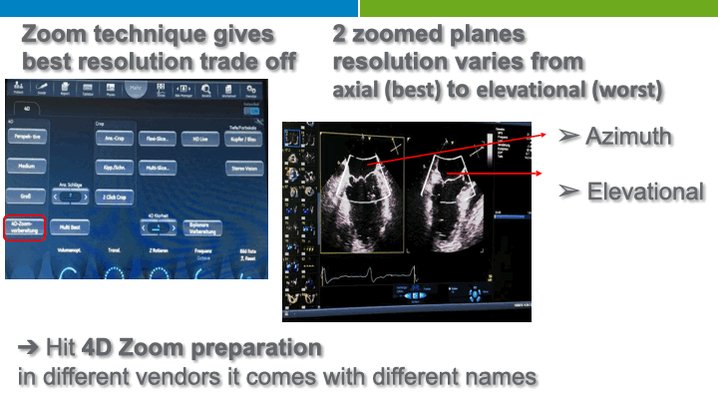

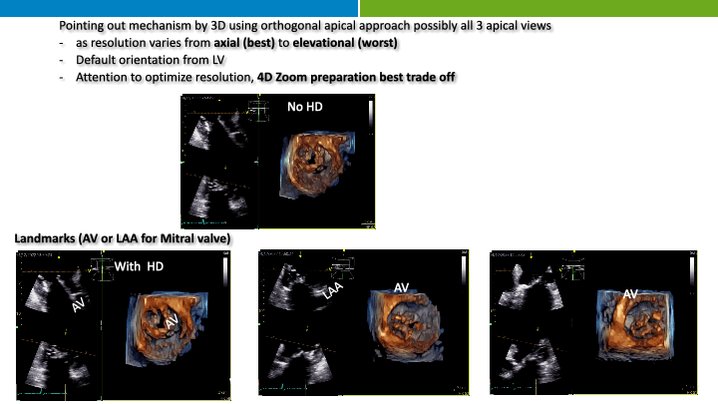

#echofirst TEE goes 3D, important to start from good 2D, optimize resolution using 4D zoom preparation, take landmarks for orientation, better taking more 3D datasets (me taking always from all 3 apical views)

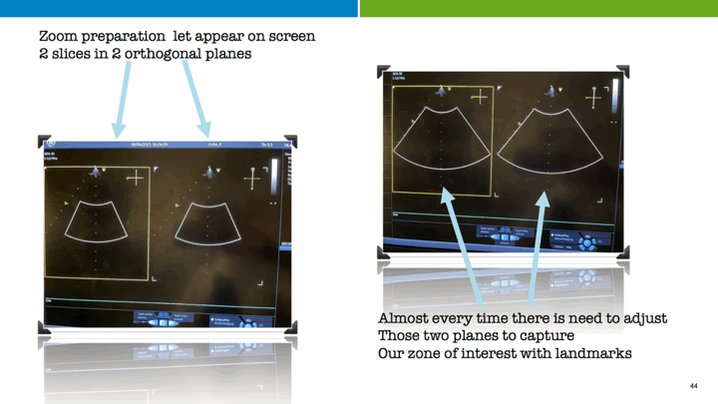

Most important #echofirst step b4 activating 4D is to optimize the 2 planes. Must capture whole zone of interest with orientation landmarks for MV aortic valve and LAA.
#echofirst for 3D use your planes as large as needed and as small as possible

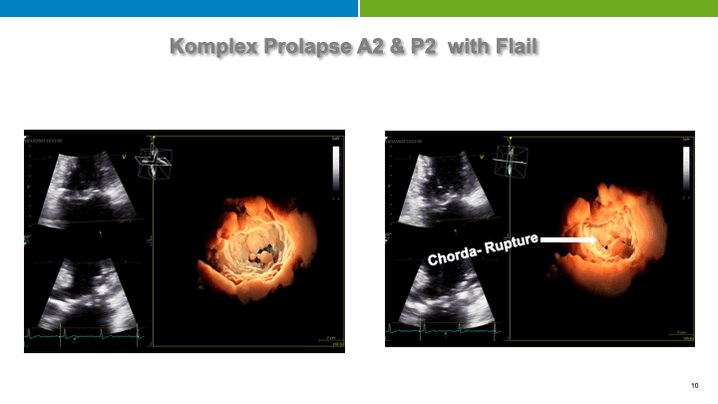

#echofirst shows with surgical orientation (AV at 12) the defects, bileaflet lesion. Post processing 🔑 to magic:
2D Gain Amplifies all the receiving US Information
Amplifies also noise = smoke
4D Active Mode Deletes weak signals
Deletes noise and weak Image-information
#echofirst still frame with the diagnostic images of this case
• • •
Missing some Tweet in this thread? You can try to
force a refresh
1/7 Approaching #echofirst in 7 steps, starting point LPLAX (LVEDD/LVEDS always needed), Ivd & LVOT & RVOT
2/7 next #echofirst step is to call for fantastic 4
2/7 here you see the fantastic 4 getting your first impression what we will come. We know immediately relation LV to RV and Atria and WMA and so much more ending up in apical long axis
3/13 be aware of pitfalls. If your numbers get nuts go & check step by step. Biggest source of error is radius measurement (often we tend to exaggerate)

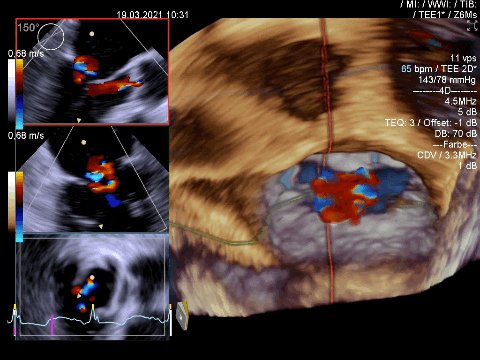

@KPujdak#echofirst TEE guiding in SHD in leaflet therapy. The 🔑 to success is team work!
screening b4 procedure under OMT.
While waiting for IC for septal puncture get images of MR but be aware MR might not be so obvious as in your screening Echo, get MPG & PV inflow
Pay always attention where your IC is with needle, b/x-plane imaging with aorta is needed! If something is going wrong talk & warn your IC
Very important is the right puncture hight b4 concluding septal puncture

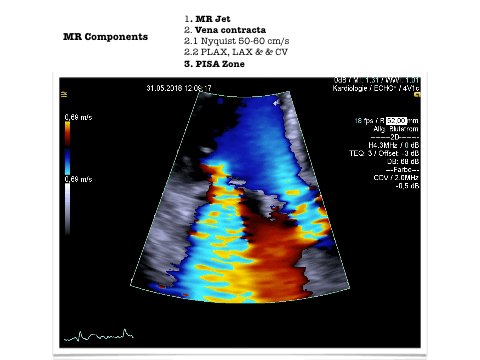

#echofirst 1/9 When looking & reporting MR there is so many parameters to consider. We need to understand mechanism and secondary changes. Trying to put some points together
2/9 this is short representation on PISA from Braunwald
