Meissner effect or bust. Day 2

An absolute emotional rollercoaster. We've been back so many times, I've lost count

The first reaction to make Lanarkite (PbO + PbSO4) is running in the furnace! We opted to do 80% in an open air alumina crucible and 20% in a sealed quartz tube Image
PbO + PbSO4 from Sigma. Thanks for the fast shipping! Image
Take it to a very fine powder. A little bit of clumping.

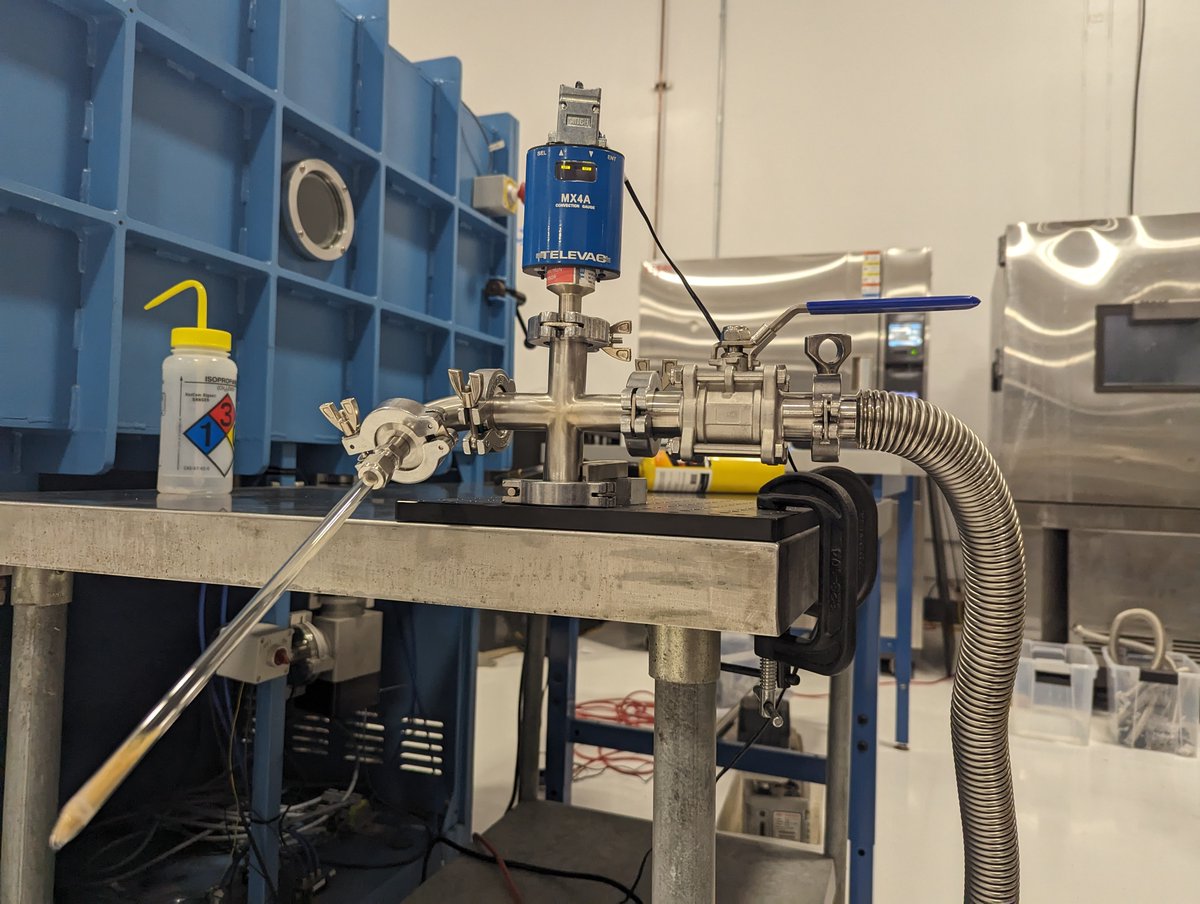

This was a great test run of the quartz vacuum sealing rig. We were at 3e-3torr when we sealed off. It went smoothly enough for a first effort. I gave it 5min at vacuum to flash off any moisture in the powder.
Oxy torch. Notice the tube collapses and pinches off due to internal vacuum.

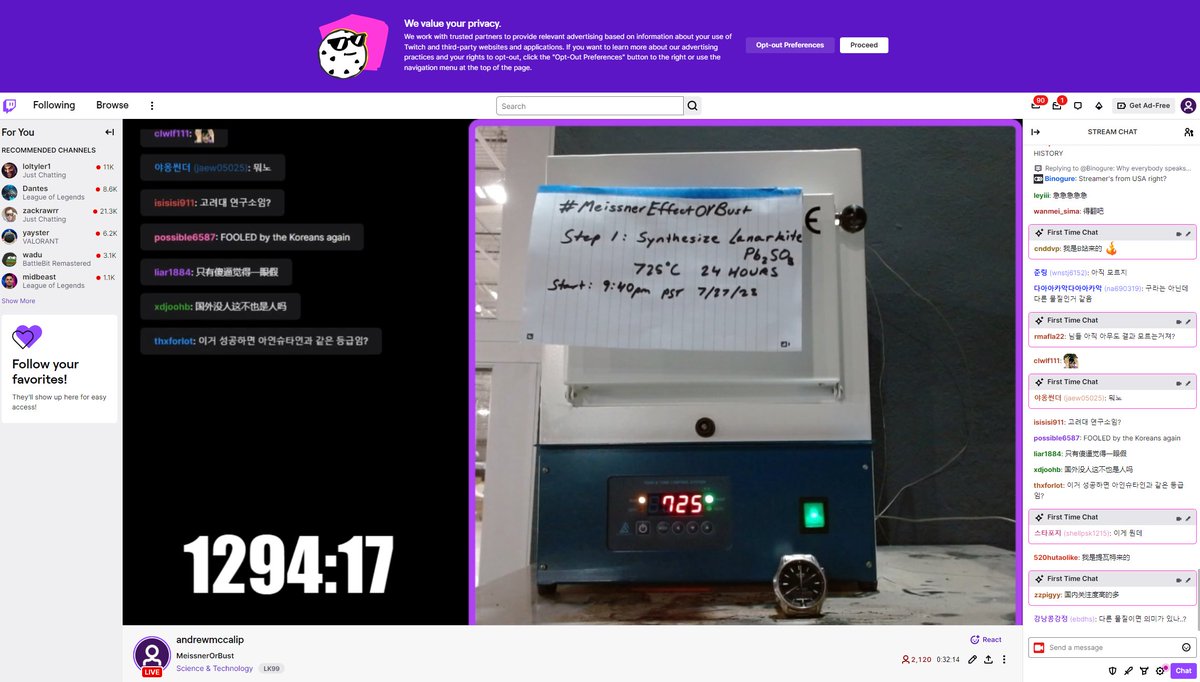

Safely in the oven. As requested, we're doing a live stream. It's bring your own audio.

https://t.co/Uqkf2g1PbPtwitch.tv/andrewmccalip

For 5 minutes before the wifi went down, we were top ten on Twitch with 16,000 viewers.
Please follow @zebulgar. We need to help him boost his metrics. Can't monetize until 15mil views.
DAQ says we've been holding steady all night. Surpringly low ripple on the furnace. For the nerds out there, the stack is Codesys, Ethercat, Beckhoff, OPAUA, Docker, Influx, Grafana. Image
Livestream going down for a few hours. The engineer needed his laptop back..... Image
Copper phosphide stuck in customs in Poland

• • •

Missing some Tweet in this thread? You can try to force a refresh


Keep Current with Andrew McCalip

Andrew McCalip Profile picture

Stay in touch and get notified when new unrolls are available from this author!

Read all threads

This Thread may be Removed Anytime!

PDF

Twitter may remove this content at anytime! Save it as PDF for later use!

Try unrolling a thread yourself!

how to unroll video
  1. Follow @ThreadReaderApp to mention us!

  2. From a Twitter thread mention us with a keyword "unroll"
@threadreaderapp unroll

Practice here first or read more on our help page!

More from @andrewmccalip

Jul 27
Meissner effect or bust. Day 1.

Made good progress on the list of to-dos. I'm doing this all after-hours,  so it's been a long day. Since we're gated by the delivery of the PbO + Pb(SO4), which should be tomorrow, we're working on infrastructure first. Image
Getting the DAQ set up. Will do multi channel thermocouple probes in furnace to ensure best control. We verified 930°C with our small 6"x6"x6" furnace. All data logged to Influx so we can verify ramp rates.
We're taking over the deep storage corner of the warehouse. Some other hobbies are visible in the background. Still trying to get Elon to send it up on Starship.

Our TVAC chamber (Sucky McSuckFace) will provide the 1e-5torr vacuum source we need. Dry multistage roots + turbo.
