three versions of Leopard 2 were delivered to Ukraine and a modification of leopard 2A4 was created as well.

In this simple thread I will show you some features that help to differentiate and identify these vehicles.

the Leopard 2A4 is the most numerous vehicle of the leopard 2 Series present in Ukraine and also the easiest to identify, since it has unique characteristics.

talking about the turret, the vehicle does not have additional armor like the leopard 2A6, so its turret is Square and easy to be identified from any angle, unlike the Leopard 2A6 it distributes equally 4 smoke grenade launchers on the side of the turret, both above and below.

the vehicle does not have a CITV, instead the commander has access to a panoramic vision system which is located in front of the hatch, it is a much smaller system than the CITV present in the Leopard 2A6 and STRV 122 which is located behind the commander's Hatch.

the gunner's sight system is the same as the leopard 2A6, the difference being that the system sits in a "hole" in the front of the turret that makes identification easier.

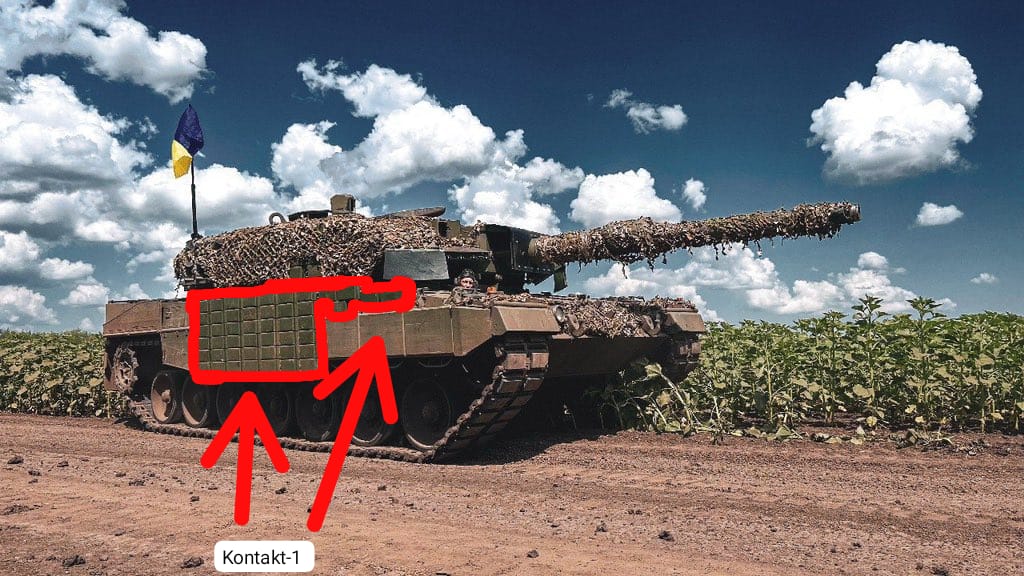

there is a variant of the leopard 2A4 that I affectionately call "leopard 2A4BV" that basically adds Kontakt-1 armor and spaced armor on the vehicle, it is also easy to identify, check out the images.

a good way to identify a leopard 2A6 is by looking at its cannon, it is the MBT with the largest cannon in service in the Ukrainian army and it is easy to see that its size is larger than the others.

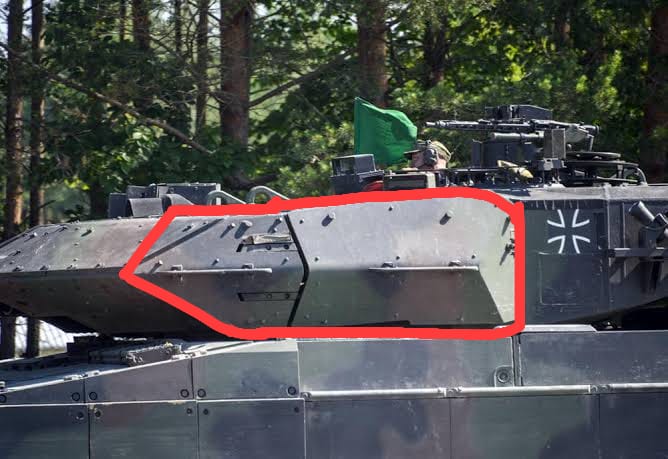

the easiest way to identify a leopard 2A6 is by looking at the additional turret armor, in front of the turret it is triangle-shaped and extends to the sides of the turret.

as I already said before, this vehicle has a CITV that is behind the commander's Hatch and is relatively large, you can use the CITV to identify a leopard 2A6 since the CITV of the STRV 122 has additional armor.

unlike the leopard 2A4, the gunner's sight is on the top of the turret and not in a "hole" but this is present in the STRV 122 as well.

if possible always pay attention to the smoke launchers on the side of the tower, this is the only vehicle with 6 launchers on top and 2 on the bottom.

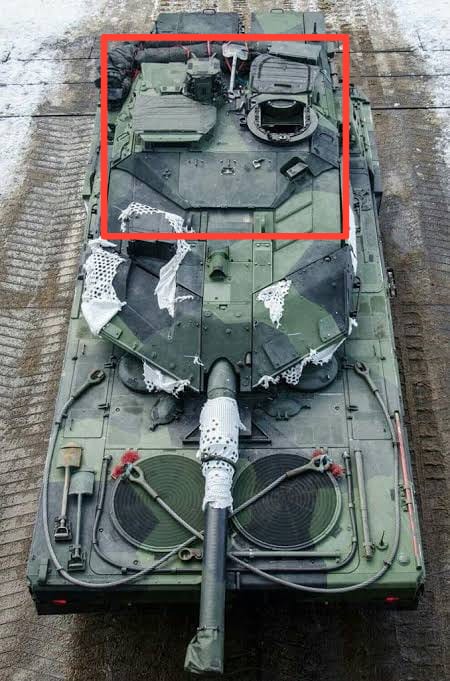

The STRV 122 has a considerably larger armor in front of the tower and has 1 armor kit that extends from the upper plate of the hull to the beginning of the Lower Plate, at the top of the tower it has another composite armor kit also very flashy.

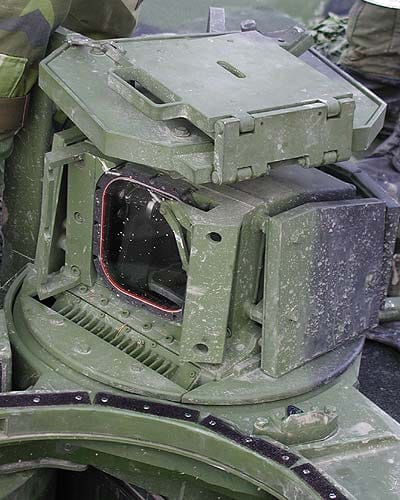

the CITV of the vehicle is the same as that of the Leopard 2A6 but with the difference that it has 4 extra armor plates, one in the back, one in the right, one on the left and another that is on top of the CITV that is placed in front of the system for protection.

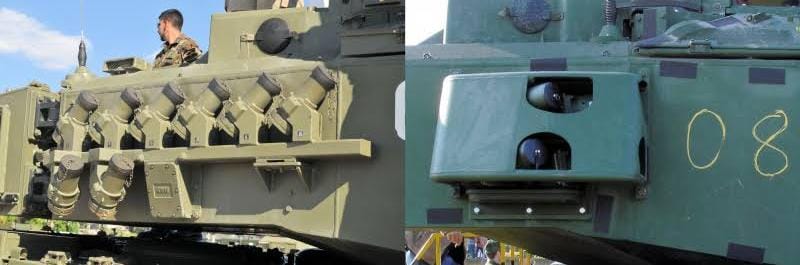

another unique feature of the STRV 122 it is the "GALIX" smoke launcher that has 4 launchers and is very easy to identify, since it is the only vehicle with such a system worth paying attention to this characteristic.

This post took a lot of work, consider following the page if you liked the content and if you have something to add to the topic feel free to.

Sources: me
