How To: Create a Sankey diagram of variants circulating in your area

This thread will walk you through the process of using @Mike_Honey_'s visualization tool to generate a Sankey diagram for your country, province or State.🧵1/ Filtered Sankey diagram view with "Lineage Level" set to 3 and 11 and the Minimum # Samples per Lineage to show" to 60 and all labels shown. Visualization tool was created by Mike Honey @Mike_Honey_ ( https://app.powerbi.com/view?r=eyJrIjoiNzE5YzczODItMDQzMS00M2EzLWFjNWYtMjg3OTY3NTNhZDM3IiwidCI6ImRjMWYwNGY1LWMxZTUtNDQyOS1hODEyLTU3OTNiZTQ1YmY5ZCIsImMiOjEwfQ%3D%3D )
An unrolled one-page web view for this long thread that may be easier to read or share can be found here ( ). 2/
Step 1: Go to Mike's variant visualization tool ( ). By default, Australia is chosen so you need to select your region of interest. 3/app.powerbi.com/view?r=eyJrIjo…
Step 2: Click on the V shape to the right of the current Continent, County, Location which by default is "Oceania + Australia" and you will see a drop-down list of continents and countries. Scroll down until you find your continent and then country of interest. 4/ Drop down box to select location of interest for variants. Visualization tool was created by Mike Honey @Mike_Honey_ ( https://app.powerbi.com/view?r=eyJrIjoiNzE5YzczODItMDQzMS00M2EzLWFjNWYtMjg3OTY3NTNhZDM3IiwidCI6ImRjMWYwNGY1LWMxZTUtNDQyOS1hODEyLTU3OTNiZTQ1YmY5ZCIsImMiOjEwfQ%3D%3D )
Alternatively, type in the name of the country, province, or State that you are looking for in the search field to quickly narrow down the options. 5/ Screenshot showing search field to help find location of interest for variants. Visualization tool was created by Mike Honey @Mike_Honey_ ( https://app.powerbi.com/view?r=eyJrIjoiNzE5YzczODItMDQzMS00M2EzLWFjNWYtMjg3OTY3NTNhZDM3IiwidCI6ImRjMWYwNGY1LWMxZTUtNDQyOS1hODEyLTU3OTNiZTQ1YmY5ZCIsImMiOjEwfQ%3D%3D )
Step 3: In this example we are going to use the province of Ontario in Canada so you would click on the white box beside Ontario as shown in the image. 6/ Screenshot showing box to select for Ontario variants. Visualization tool was created by Mike Honey @Mike_Honey_ ( https://app.powerbi.com/view?r=eyJrIjoiNzE5YzczODItMDQzMS00M2EzLWFjNWYtMjg3OTY3NTNhZDM3IiwidCI6ImRjMWYwNGY1LWMxZTUtNDQyOS1hODEyLTU3OTNiZTQ1YmY5ZCIsImMiOjEwfQ%3D%3D )
After a few seconds the tool will load the sequences from your newly selected location, the default graph will be updated and now display the top 7 variant families for your location (see Date selector box for exact range). 7/ Graph of COVID variant families frequency from PCR test genomic sequencing. Visualization tool was created by Mike Honey @Mike_Honey_ ( https://app.powerbi.com/view?r=eyJrIjoiNzE5YzczODItMDQzMS00M2EzLWFjNWYtMjg3OTY3NTNhZDM3IiwidCI6ImRjMWYwNGY1LWMxZTUtNDQyOS1hODEyLTU3OTNiZTQ1YmY5ZCIsImMiOjEwfQ%3D%3D )
In this example the BA.2.86* family (the * means all variants of BA.2.86 which also includes any children of that variant such as JN.1) currently makes up about 56% of sequences in Ontario. 8/
Step 4: Switch to the Sankey diagram by clicking on the page number at the bottom of the web page as shown. 9/ Screenshot of where to click on page number to change to Sankey diagram. Visualization tool was created by Mike Honey @Mike_Honey_ ( https://app.powerbi.com/view?r=eyJrIjoiNzE5YzczODItMDQzMS00M2EzLWFjNWYtMjg3OTY3NTNhZDM3IiwidCI6ImRjMWYwNGY1LWMxZTUtNDQyOS1hODEyLTU3OTNiZTQ1YmY5ZCIsImMiOjEwfQ%3D%3D )
Scroll down until you see "gisaid (nextclade) - sankey" in the page listing and click on that option as shown. 10/ Screenshot of how to select the "gisaid (nextclade) - sankey" option to change to Sankey diagram. Visualization tool was created by Mike Honey @Mike_Honey_ ( https://app.powerbi.com/view?r=eyJrIjoiNzE5YzczODItMDQzMS00M2EzLWFjNWYtMjg3OTY3NTNhZDM3IiwidCI6ImRjMWYwNGY1LWMxZTUtNDQyOS1hODEyLTU3OTNiZTQ1YmY5ZCIsImMiOjEwfQ%3D%3D )
It may take a minute to generate the Sankey diagram. By default all variants and their lineages during the time period selected are shown so may look pretty messy considering how many variants are circulating from unmitigated transmission and look something like this image. 11/ Default Sankey diagram view. Visualization tool was created by Mike Honey @Mike_Honey_ ( https://app.powerbi.com/view?r=eyJrIjoiNzE5YzczODItMDQzMS00M2EzLWFjNWYtMjg3OTY3NTNhZDM3IiwidCI6ImRjMWYwNGY1LWMxZTUtNDQyOS1hODEyLTU3OTNiZTQ1YmY5ZCIsImMiOjEwfQ%3D%3D )
Step 5: Adjust the filters to make the Sankey diagram look how you want. The main filters you will want to adjust are the "Lineage Level" and "Minimum # Samples per Lineage to show" which can be found on the right side of the page. 12/ Screenshot showing "Lineage Level" and "Minimum # Samples per Lineage to show" filters. Visualization tool was created by Mike Honey @Mike_Honey_ ( https://app.powerbi.com/view?r=eyJrIjoiNzE5YzczODItMDQzMS00M2EzLWFjNWYtMjg3OTY3NTNhZDM3IiwidCI6ImRjMWYwNGY1LWMxZTUtNDQyOS1hODEyLTU3OTNiZTQ1YmY5ZCIsImMiOjEwfQ%3D%3D )
If you set the "Lineage Level" to 3 and 11 and the "Minimum # Samples per Lineage to show" to 60 it will make the Sankey diagram much less complex. 13/
The first few parent lineages on the left will be cut out along with a couple of child lineages on the right while only showing variants that have at least 60 samples that have been recorded. 14/ Filtered Sankey diagram view with "Lineage Level" set to 3 and 11 and the Minimum # Samples per Lineage to show" to 60. Visualization tool was created by Mike Honey @Mike_Honey_ ( https://app.powerbi.com/view?r=eyJrIjoiNzE5YzczODItMDQzMS00M2EzLWFjNWYtMjg3OTY3NTNhZDM3IiwidCI6ImRjMWYwNGY1LWMxZTUtNDQyOS1hODEyLTU3OTNiZTQ1YmY5ZCIsImMiOjEwfQ%3D%3D )
This may take a minute to process as it has to recalculate the entire diagram but you now have a less busy diagram. 15/
When the Lineage Level was 1, the Sankey showed BA.2 and XBB on the leftmost column, but now skips ahead two generations and starts with XBB.1.5, XBB.1.9, XBB.1.16, BA.2.75, and BA.2.86. 16/
Step 6: You will notice that most of the variants are labeled but some are not. By default the diagram only labels the most significant variants. If you want to see *all* labels, simply click on the "Show all labels" button in the bottom left corner as shown. 17/ Filtered Sankey diagram view with "Lineage Level" set to 3 and 11 and the Minimum # Samples per Lineage to show" to 60. Visualization tool was created by Mike Honey @Mike_Honey_ ( https://app.powerbi.com/view?r=eyJrIjoiNzE5YzczODItMDQzMS00M2EzLWFjNWYtMjg3OTY3NTNhZDM3IiwidCI6ImRjMWYwNGY1LWMxZTUtNDQyOS1hODEyLTU3OTNiZTQ1YmY5ZCIsImMiOjEwfQ%3D%3D )
Now all the labels will be shown. Sometimes even a filtered Sankey may seem a bit squished. 18/ Filtered Sankey diagram view with "Lineage Level" set to 3 and 11 and the Minimum # Samples per Lineage to show" to 60 and all labels shown. Visualization tool was created by Mike Honey @Mike_Honey_ ( https://app.powerbi.com/view?r=eyJrIjoiNzE5YzczODItMDQzMS00M2EzLWFjNWYtMjg3OTY3NTNhZDM3IiwidCI6ImRjMWYwNGY1LWMxZTUtNDQyOS1hODEyLTU3OTNiZTQ1YmY5ZCIsImMiOjEwfQ%3D%3D )
You can maximize the Sankey diagram by hovering your mouse over the top right corner of the Sankey diagram, just under the year of the date and two icons will appear. Click on the box with the arrow pointing diagonally to the top right to maximize it. 19/ Screenshot showing where to click in order to make the Sankey chart larger. Visualization tool was created by Mike Honey @Mike_Honey_ ( https://app.powerbi.com/view?r=eyJrIjoiNzE5YzczODItMDQzMS00M2EzLWFjNWYtMjg3OTY3NTNhZDM3IiwidCI6ImRjMWYwNGY1LWMxZTUtNDQyOS1hODEyLTU3OTNiZTQ1YmY5ZCIsImMiOjEwfQ%3D%3D )
This will replace the right section of the visualization tool giving more space to draw the Sankey diagram. To return to the previous view click on "Back to report" in the top left corner of the diagram. 20/ Maximized and filtered Sankey diagram view with "Lineage Level" set to 3 and 11 and the Minimum # Samples per Lineage to show" to 60 and all labels shown. Visualization tool was created by Mike Honey @Mike_Honey_ ( https://app.powerbi.com/view?r=eyJrIjoiNzE5YzczODItMDQzMS00M2EzLWFjNWYtMjg3OTY3NTNhZDM3IiwidCI6ImRjMWYwNGY1LWMxZTUtNDQyOS1hODEyLTU3OTNiZTQ1YmY5ZCIsImMiOjEwfQ%3D%3D )
Step 7: Enjoy your filtered Sankey diagram. 21/
Now that you have your filtered Sankey diagram, how do you interpret it? The height of each bar represents the relative difference in how many sequences there are for each variant in the time period that was selected. 22/
The longest bar in this example is XBB.1.9 "Hyperion" in the first column. Hovering over that bar shows there are 7,578 sequences found of XBB.1.9 including all of its descendants. 23/ Highlighting the # of sequences found of XBB.1.9 and its descendants. Visualization tool was created by Mike Honey @Mike_Honey_ ( https://app.powerbi.com/view?r=eyJrIjoiNzE5YzczODItMDQzMS00M2EzLWFjNWYtMjg3OTY3NTNhZDM3IiwidCI6ImRjMWYwNGY1LWMxZTUtNDQyOS1hODEyLTU3OTNiZTQ1YmY5ZCIsImMiOjEwfQ%3D%3D )
While the original XBB.1.9 "Hyperion" variant itself is no longer circulating in Ontario, you can quickly see that the most common variants sequenced over the past two months in Ontario were based on the XBB.1.9 variant. 24/
Looking in column 4 you can see that most of those descendants come from the EG.5.1 "Eris" clan of variants. 25/
Remember that the Sankey diagram shows all the variants sequenced (except those filtered out) over the entire time period (the history of variants in the region) but does not identify the current most prevalent variant. 26/
To see the current most prevalent variants, you can use pages 1 and 2 of the tool using this guide ( ). 27/
The Sankey diagram also helps you trace the lineage of a variant. Changing the filter to set the max lineage level to 6 and the date range from Dec. 1, 2023 to present simplifies the diagram even further. 28/
If you look at the current most prevalent variant JN.1, you can trace its lineage back to BA.2.86.1 and then BA.2.86 to learn where this variant came from. 29/ Highlighting the lineage path of JN.1 back through its parent variants. Visualization tool was created by Mike Honey @Mike_Honey_ ( https://app.powerbi.com/view?r=eyJrIjoiNzE5YzczODItMDQzMS00M2EzLWFjNWYtMjg3OTY3NTNhZDM3IiwidCI6ImRjMWYwNGY1LWMxZTUtNDQyOS1hODEyLTU3OTNiZTQ1YmY5ZCIsImMiOjEwfQ%3D%3D )
Now that you know how to use @Mike_Honey_'s visualization tool, you can generate Sankey diagrams for almost anywhere in the world that still does COVID-19 genomic sequencing, which unfortunately has become less and less over time. 30/
You can find code for his tool on GitHub ( ). 31/github.com/Mike-Honey/cov…
@threadreaderapp please unroll

• • •

Missing some Tweet in this thread? You can try to force a refresh


Keep Current with Jeff Gilchrist

Jeff Gilchrist Profile picture

Stay in touch and get notified when new unrolls are available from this author!

Read all threads

This Thread may be Removed Anytime!

PDF

Twitter may remove this content at anytime! Save it as PDF for later use!

Try unrolling a thread yourself!

how to unroll video
  1. Follow @ThreadReaderApp to mention us!

  2. From a Twitter thread mention us with a keyword "unroll"
@threadreaderapp unroll

Practice here first or read more on our help page!

More from @jeffgilchrist

Jan 10
Broad-Spectrum #COVID-19 #Therapeutics and #Prophylactics

An interesting presentation by Yunlong Richard Cao @yunlong_cao talking about their development of broadly #neutralizing #antibodies based on prediction of #viral #evolution ( ). 🧵1/
Slide showing how the immune barrier induced by vaccines and natural infection have been repeatedly evaded by the new COVID-19 variants. Image from: https://www.youtube.com/watch?v=OxpJM4gqwec
Read on to find out how their research team developed a neutralizing antibody solution (injection & nose spray) that works with all current variants, including the older SARS1 virus from 2003 and the currently globally dominant BA.2.86 Pirola clan of variants. 2/
Slide showing SA55 available as an injection to act as a long-term prophylactic or therapeutic for immunocompromised people (80-90 day half-life). Image from: https://www.youtube.com/watch?v=OxpJM4gqwec
Slide showing SA55 available as a nasal spray that is supposed to be low cost and provide short-term prophylactics (3 sprays per day) with 8-12h protection per spray providing high neutralization in the mucosa. Image from: https://www.youtube.com/watch?v=OxpJM4gqwec
An unrolled one-page web view for this long thread that may be easier to read or share can be found here ( ). 3/
Read 32 tweets
Jan 8
#Virus update for Ottawa, #Canada (Jan 8, 2024)

#Wastewater levels in #Ottawa are extremely high and rising again with the JN.1 #Pirola variant now the most prevalent. #Hospitalization *for* #COVID-19 started declining just before the holidays but is increasing again.🧵1/
Graph of wastewater levels in Ottawa, Ontario. Weekly stats available at ( http://covid.gilchrist.ca/Ottawa.html )
Graph of # of people currently hospitalized *for* COVID-19 in Ottawa, Ontario. Weekly stats available at ( http://covid.gilchrist.ca/Ottawa.html )
Our young children are especially vulnerable to respiratory virus infections. In Ottawa, despite children age 0-11 only making up 11% of the population, they accounted for 46% of respiratory related Emergency Department visits the week of Dec. 24 ( ). 2/ ottawapublichealth.ca/en/reports-res…
Graph showing % of total respiratory related ED visits by week in Ottawa, Ontario with children <12 making up almost 50% of all visits despite being only 11% of the population. Weekly stats available at ( http://covid.gilchrist.ca/Ottawa.html )
RSV levels in Ottawa wastewater were declining but now seeing another increase, but Influenza A levels increased quickly and are now twice the peak of last year already. Influenza B is now being detected in very small amounts. 3/ Graph showing RSV levels decreased, Influenza A levels very high and low Influenza B wastewater levels in Ottawa, Ontario. Weekly stats available at ( http://covid.gilchrist.ca/Ottawa.html )
Read 12 tweets
Jan 6
#Variant update for #Ontario, #Canada (to Dec. 26, 2023)

The BA.2.86.* #Pirola clan of variants is now the majority of sequences at 56%. JN.1 Pirola has taken 1st place at 38% with HV.1 "Eris" down to 18%. The next closest is JG.3.2 "Eris" at 7%. Graph tools by @Mike_Honey_🧵1/

Sankey graph (height of each bar is # of sequences for that variant) showing top variants and their lineages over the past couple of months from PCR test genomic sequencing in Ontario, Canada. Visualization tool was created by @Mike_Honey_ ( https://app.powerbi.com/view?r=eyJrIjoiNzE5YzczODItMDQzMS00M2EzLWFjNWYtMjg3OTY3NTNhZDM3IiwidCI6ImRjMWYwNGY1LWMxZTUtNDQyOS1hODEyLTU3OTNiZTQ1YmY5ZCIsImMiOjEwfQ%3D%3D&pageName=ReportSection32240d6b62ba73667e98 )
Graph of top 7 COVID variant clans from PCR test genomic sequencing in Ontario, Canada. Visualization tool was created by @Mike_Honey_ ( https://app.powerbi.com/view?r=eyJrIjoiNzE5YzczODItMDQzMS00M2EzLWFjNWYtMjg3OTY3NTNhZDM3IiwidCI6ImRjMWYwNGY1LWMxZTUtNDQyOS1hODEyLTU3OTNiZTQ1YmY5ZCIsImMiOjEwfQ%3D%3D
Graph of top 7 COVID variants (JN.1, HV.1, JG.3.2, HV.1.6.1, HK.3, JD.1.1.1, JD.1.1) from PCR test genomic sequencing in Ontario, Canada. Visualization tool was created by @Mike_Honey_ ( https://app.powerbi.com/view?r=eyJrIjoiNzE5YzczODItMDQzMS00M2EzLWFjNWYtMjg3OTY3NTNhZDM3IiwidCI6ImRjMWYwNGY1LWMxZTUtNDQyOS1hODEyLTU3OTNiZTQ1YmY5ZCIsImMiOjEwfQ%3D%3D )
You can find weekly Ontario stats including variants at ( ) and ( ). 2/covid.gilchrist.ca/Ontario.html
gilchrist.great-site.net/jeff/COVID-19/…
Public Health Ontario got rid of their COVID data tool and replaced it with a respiratory virus tool making some of the previously reported data no longer available. 3/
Read 22 tweets
Jan 3
Particulate Matter (PM) pollution event happening in Ontario and Quebec right now!

It seems PM levels have risen a lot overnight and whatever this event is stretches from southern Ontario (Toronto) to Ottawa to Montreal. Read more about the Model X and how I measured this below.

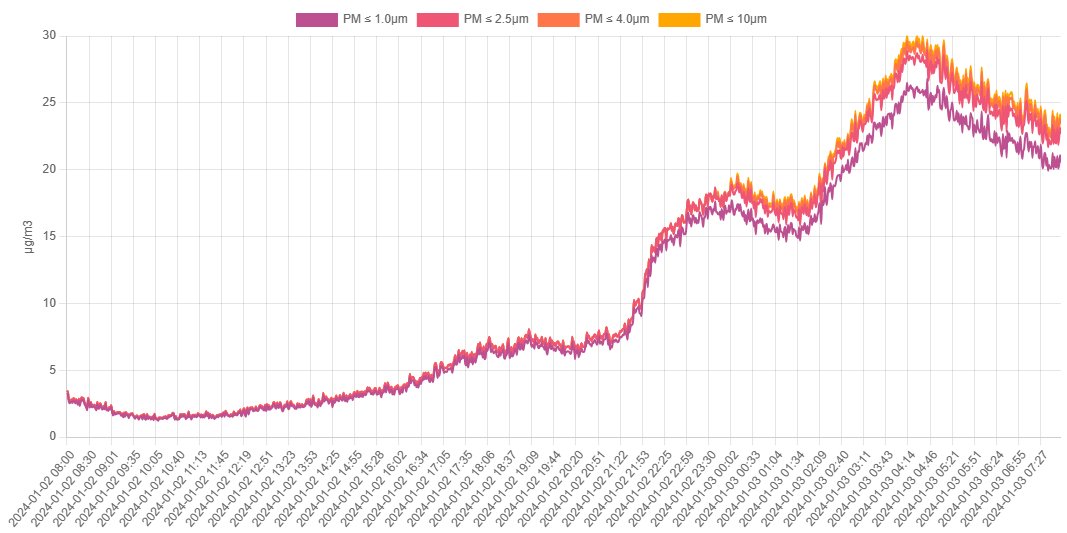

Graph from co2.click portal showing the last 24 hours of particulate matter (PM) 1.0, 2.5, 4.0, and 10 levels in Ottawa measured with a Model X outdoor air quality monitor. More info at: https://co2.click/
