John Ridge 🇺🇸 🇺🇦 🇹🇼 Profile picture
@John_A_Ridge
Oct 2, 2024 • 13 tweets • 5 min read • Read on X
A brief round up of what we do actually know thus far about Iran's ballistic missile raid against Israel, named "Operation True Promise 2" by the IRGC.

Starting with the missiles, Iran employed 180-200 medium-range ballistic missiles (MRBMs), including Ghadr, Emad, and Kheibarshekan or Fattah-1.
A derivative of the Shahab-3, Ghadr is a liquid-fueled MRBM that ordinarily carries a single separable reentry vehicle (RV). These specfic missiles have been upgraded with maneuvering reentry vehicles (MaRVs).

Ghadr is one of the primary missiles Iran employed against Israel in April during "Operation True Promise."
A further development of Ghadr, Emad is a liquid-fueled MRBM that carries a single separable MaRV. Alongside Ghadr, is one of the primary missiles previously employed against Israel in April. Image

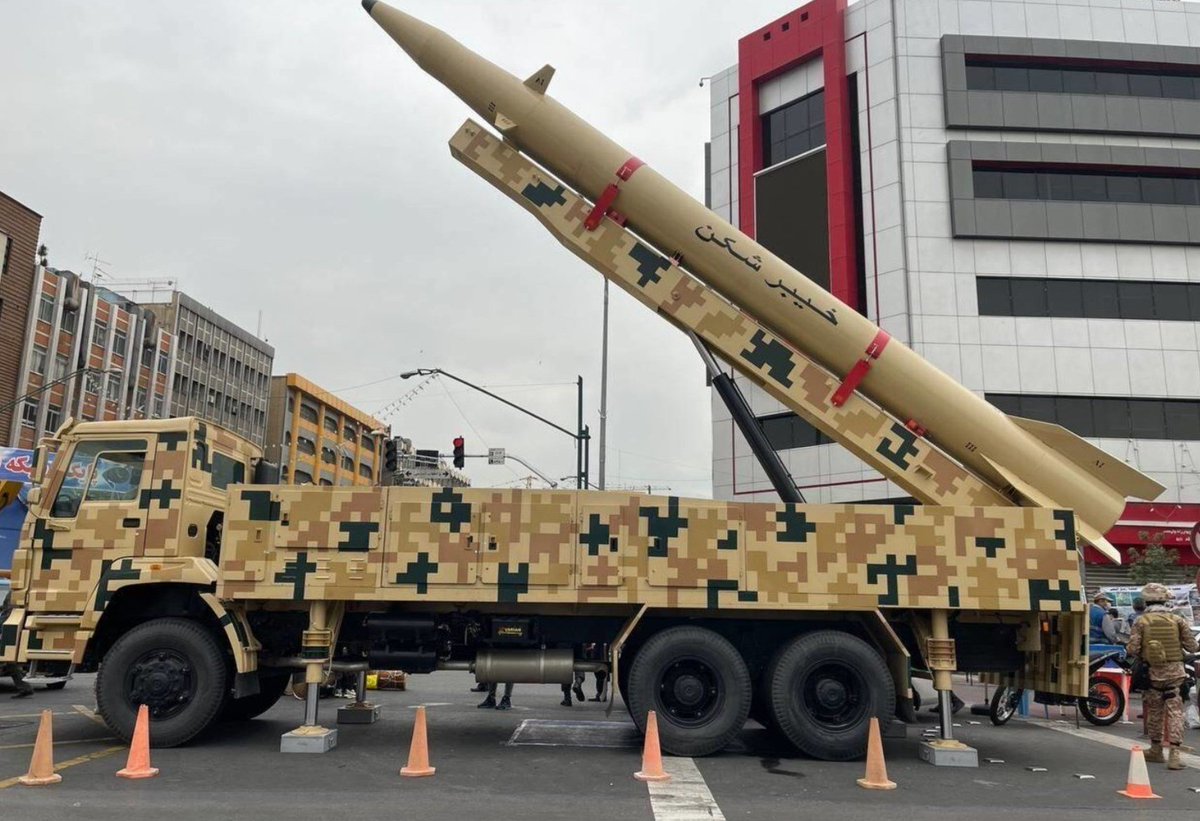

Kheibarshekan and Fattah-1 are two of Iran's most recently developed MRBMs. Both missiles share a common or closely related propulsion stack and are likely derived from the Fateh family of short-range ballistic missiles.

It is unclear which missile (or both) was employed against Israel.
Kheibarshekan is a solid-fueled MRBM that carries a single separable MaRV. It was previously employed against Israel in April.
Fattah-1 is a further evolution of Kheibarshekan which replaces the traditional MaRV with a unusual impulsive MaRV.

In exchange for reduced payload, it has a solid-fuel sustainer motor to provide midcourse divert capability while exoatmospheric. This is presumably intended to enhance its survivability against Arrow and THAAD.

The IRGC has claimed Fattah-1 was employed, but this cannot currently be verified based on the available debris.Image
The areas affected by this raid include Nevatim Airbase, Tel Nof Airbase, the headquarters of Mossad, and civilian infrastructure in central Israel.
Nevatim Airbase was struck by a dozen or so missiles with unclear effects. The RVs have notably depressed entry angles with widely dispersed points of impact. Nevatim was previously struck by 7-8 missiles in April to minimal effect.

Nevatim houses 116, 117, and 140 Squadrons, which operate F-35I Adir.
Tel Nof Airbase was struck by multiple ballistic missiles, with a least one impact appearing to cause secondary detonations.

Tel Nof houses 210 and 5601 Squadrons, the former operates Eitan UCAVs and the latter is the IAF's test squadron. Tel Nof is widely historically suspected to likely house Israel's nuclear gravity bombs.
A single missile impacted ~500 meters from the headquarters of Mossad in Gililot, with the building itself suffering no effects.
Another missile struck and damaged the premises of a school in Gedera in central Israel.
Reported casualties are minimal given the scale of the raid, with two Israelis in Tel Aviv suffering minor injuries from fragmentation.

A Palestinian was killed by the impact of a spent booster outside Jericho in the West Bank.


• • •
