Broadwell seems to have a fun undocumented MSR 😛

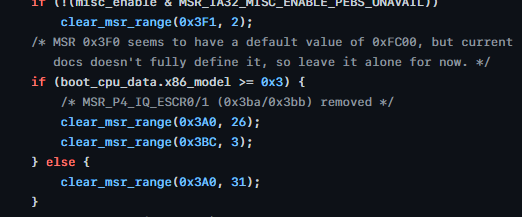

0x3F0, doesn't work on Skylake so not architectural, write-protected, seems to be 1 only on the CPU #0. Only mention seems to be in XEN, doesn't seem to be accurate.
Aug 17, 2021 • 4 tweets • 2 min read

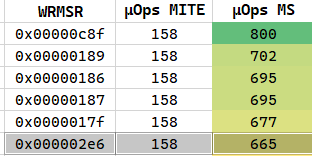

Turns out you can also find out undocumented MSRs behind NDA with Haruspex, looks like either rdmsr/wrmsr dispatches μOps dynamically or the decoder waits for the ecx value to be set, pretty interesting.🤭

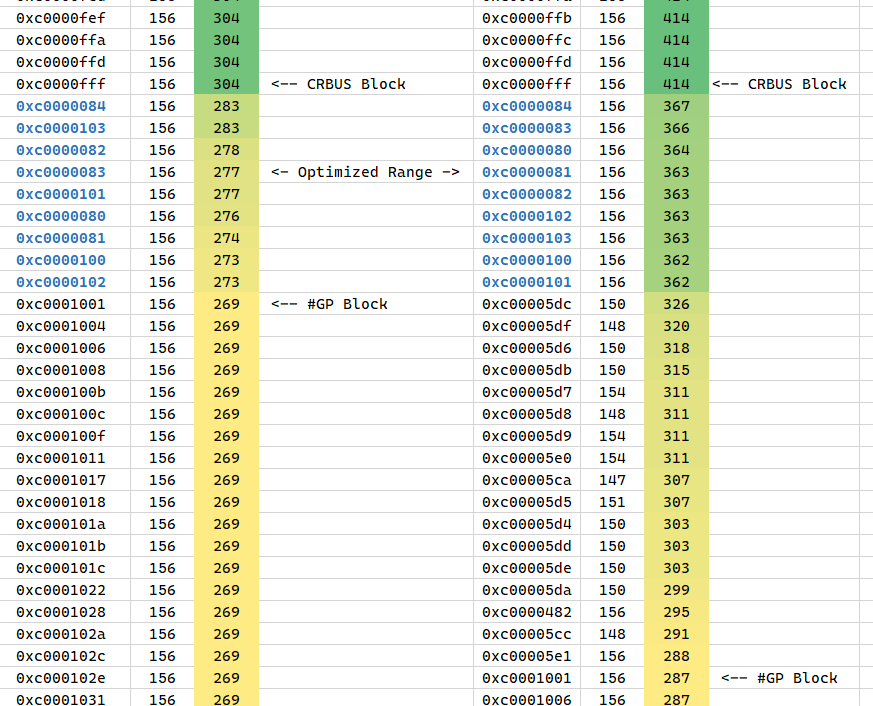

You also get to see how certain MSRs such as the LSTAR and KERNEL_GS_BASE are optimized compared to normal CRBUS MSRs, likely due to the fact that they're kept in the register file instead.
You also get to see how certain MSRs such as the LSTAR and KERNEL_GS_BASE are optimized compared to normal CRBUS MSRs, likely due to the fact that they're kept in the register file instead.
