1. The subcostal view 2. IVC 3. Additional subcostal views Incredibly versatile TTE view especially in ventilated patients but is trickier than it seems But first - Hand movements!
2/10
So what are we looking at:

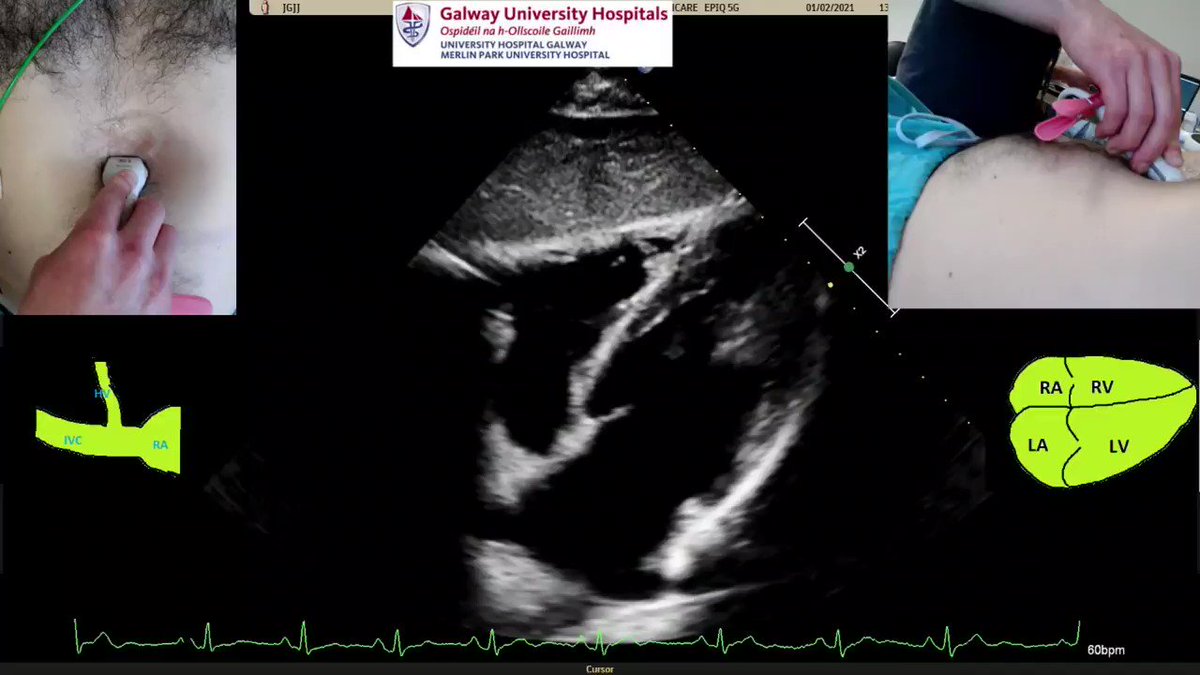

3/10 Labelled subcostal image
4/10
Optimise your image as always: 1. Depth 2. Width 3. Gain 4. Focus
5/10
What can the basic subcostal image tell us?
1. RV size - The 'safety net view' - If you think the RV is dilated in suboptimal PLAX or 4Ch views -> the subcostal view will tell you what you need! (2/3 size of LV) 2. RV free wall motion 3. LV function
6/10
Now for the IVC 90 degree anticlockwise turn It is very easy to make mistakes when it comes to IVC measurement and variation, and mistaking it for descending aorta Must see: 1. IVC - leading edges of vessel 2. Hepatic vein 3. IVC entering RA
7/10
Measuring the IVC 1. Make sure it is the IVC(not aorta!) 2. 'Clean edges' 3. 1cm prox to where hepatic vein joins IVC 4. Beware the moving IVC when assessing response during the respiratory cycle 5. M-mode can be used but ensure cursor perpendicular
8/10
Additional Subcostal views:

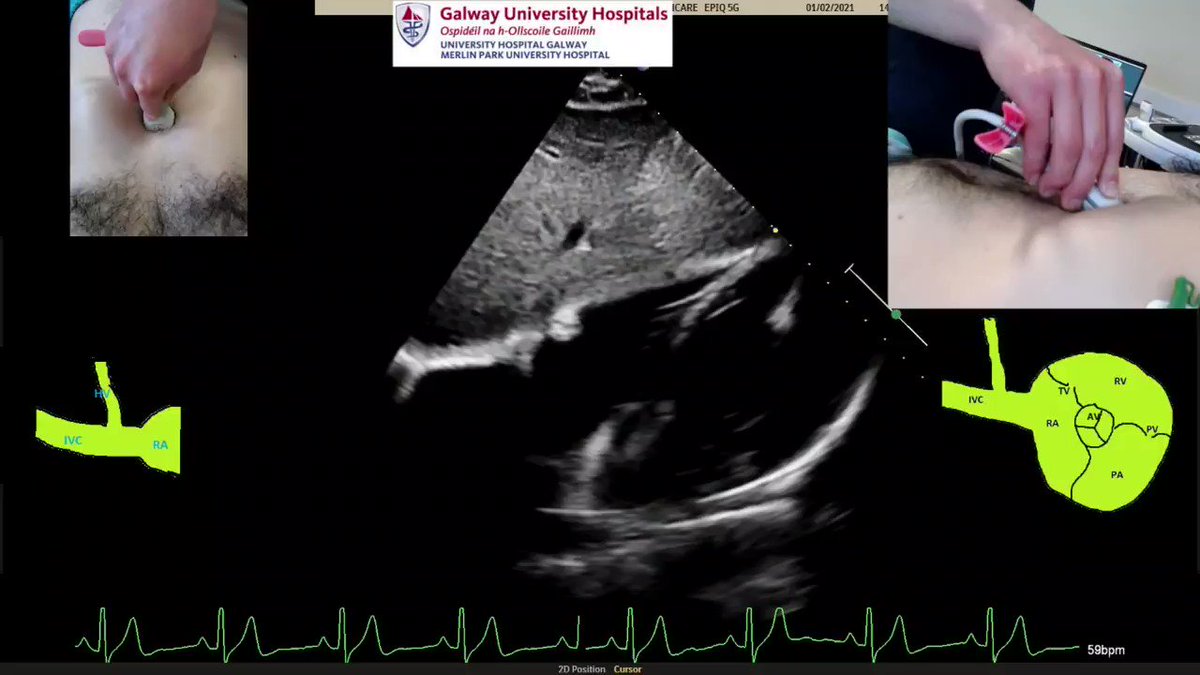

RVOT - useful for VTI variability We will go into their use in more detail in subsequent tweetorials

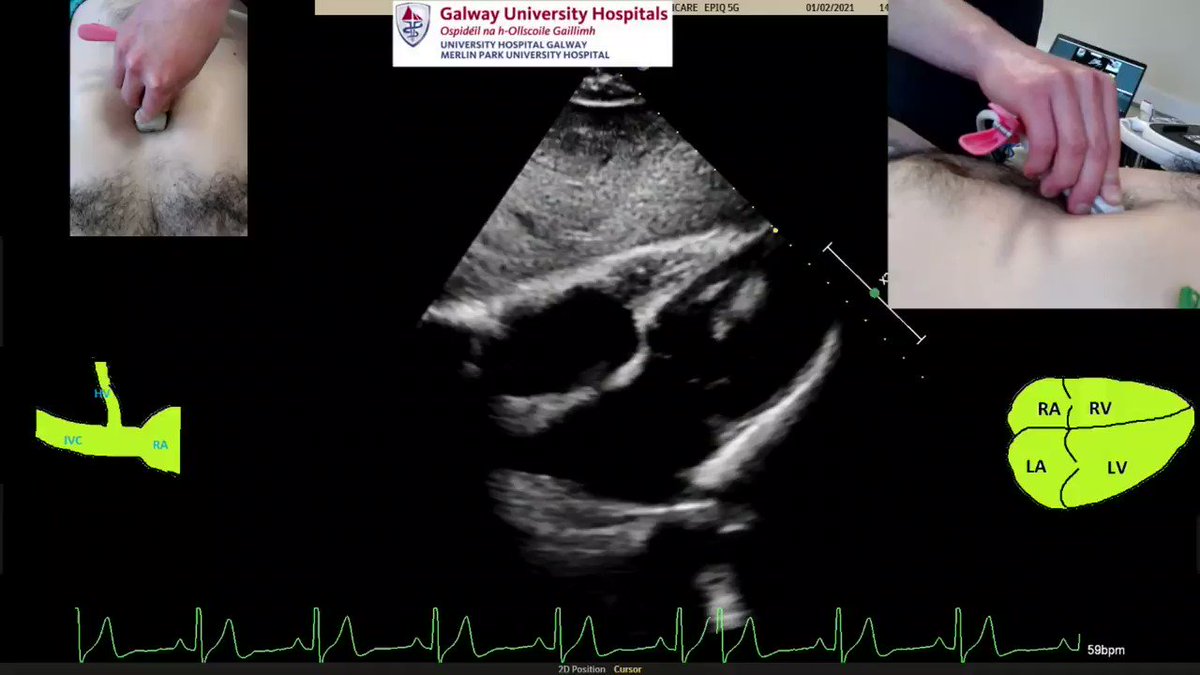

9/10 Subcostal SAX: When the PSAX view is difficult try this: It is very useful indeed!
1/9 Tuesdays Tweetorial:
You are in cardiothoracic theatre doing a mitral valve replacement for severe MR
The anaesthetic consultant is doing a TOE and keeps saying 'PISA'
U know its in Italy but have no idea why he keeps saying it
What is PISA and why is it used?
2/9 PISA = Proximal Isovelocity Surface Area
Blood is ejected -> LA
It converges at the mitral regurgitant orifice it forming hemispheres -> different blood velocity in each hemisphere
RCCs that are equidistant from the orifice(in each hemisphere) travel at similar speed
3/9 Each hemisphere has a radius
The radius that matters for calculations is the one where aliasing occurs (where color changes from blue to red or red to blue)
Remember:
Blue: RCCs moving Away from probe
Red: Towards the probe
The tricuspid regurgitation jet velocity shown was used in a critical care patient to estimate RV systolic pressure:
Vol control – tvol 420ml PEEP 10cmH20
Cardiovascular: MAP 67mmHg on Noradrenaline 0.3mcg/kg/min
2/13
His TRVmax is high:
Why should I not diagnose this patient with pulmonary hypertension in my echo report?
2 are correct:
a. not steady state
b. Off axis cursor
c. Echo cannot diagnose it
d. Poor 2D view
3/13
Answer:
a, c and possibly b!
Lets start with what TR vmax means and how it is calculated
