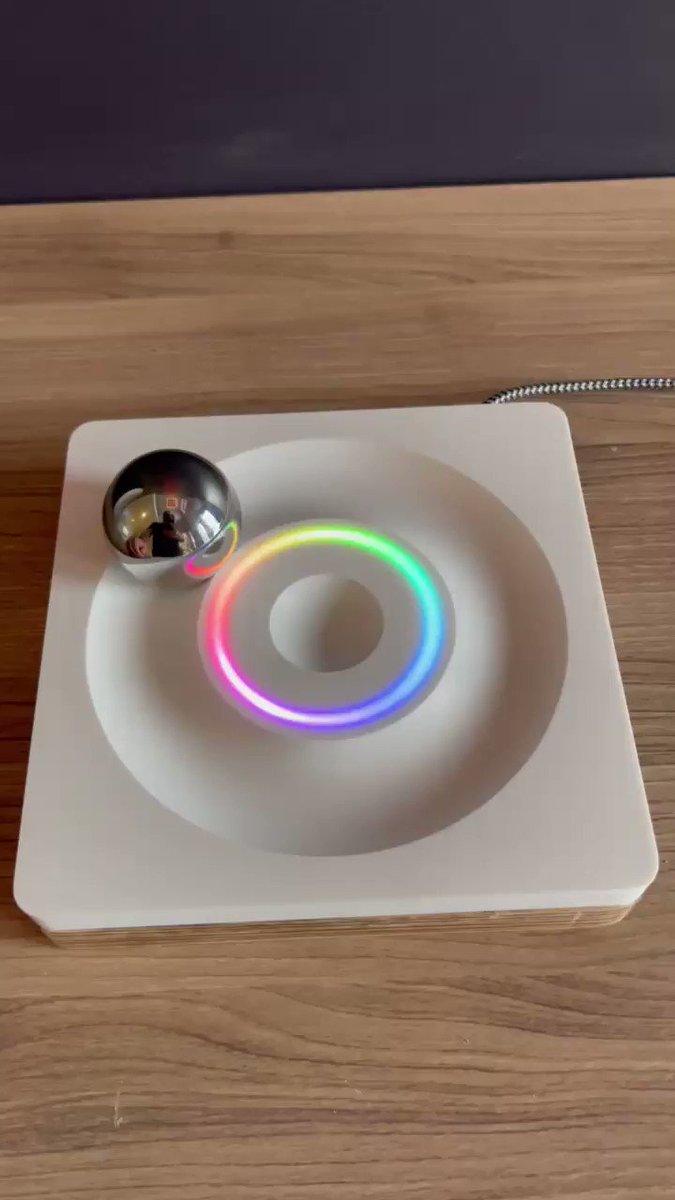

I’ve been experimentally designing and building control surfaces.
Here’s an example playing with my kinetic chandelier @motusphera.

The top surface is CNC milled @coriandesign which is has a cold stone-like feel. The base is zebra wood. 👏🏻 @rickfillion for programming help!

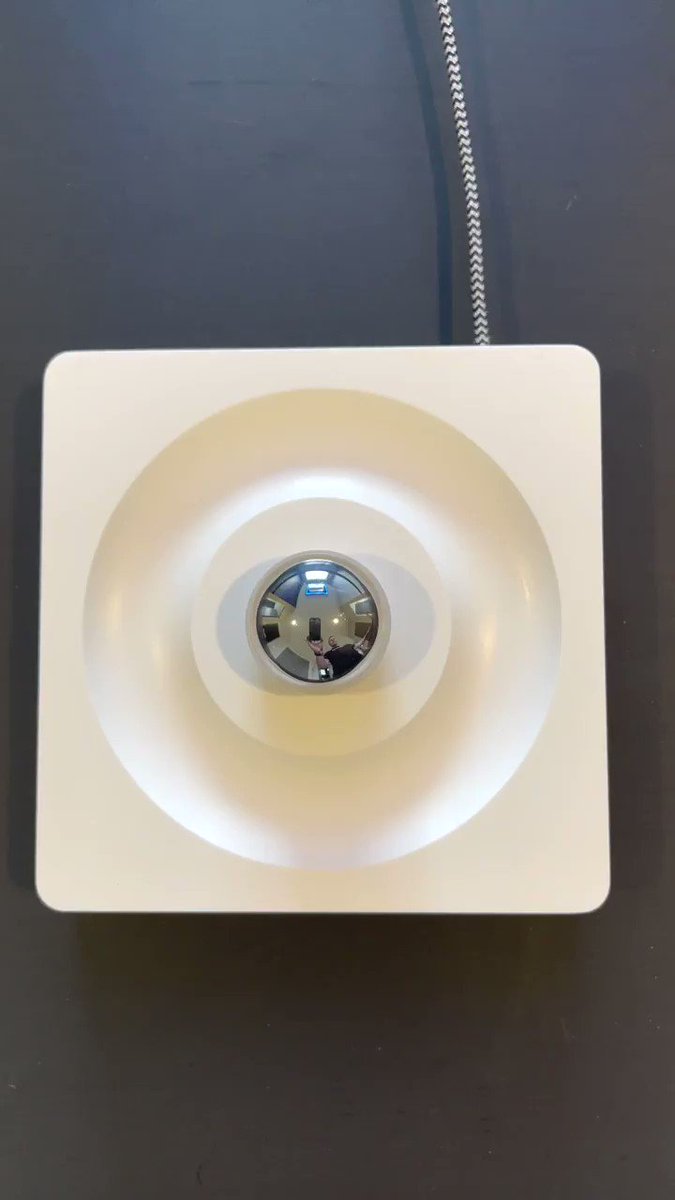

The ball is solid polished steel, with some good heft and momentum to it.

I’m working on a capacitive touch area to change modes. You can see it here toggle back and forth to a brightness adjustment. It uses the current selected color for that with a visible brightness wheel.
The top surface is unblemished, devoid of any through holes. The LED ring, (@adafruit NeoPixel ring) is underneath, which is machined very close to the surface which provides great diffusion.
The real magic comes from the triple axis magnetometer, also from @adafruit (adafruit.com/product/4479) which is tracking a rare earth magnet that is in a channel under the surface. It follows the metal ball as it rolls around.
Progress photos. ImageImageImageImage
If you haven’t seen the kinetic chandelier… you can see my promo video here:

• • •

Missing some Tweet in this thread? You can try to force a refresh

Keep Current with Phil Letourneau

Phil Letourneau Profile picture

Stay in touch and get notified when new unrolls are available from this author!

Read all threads

This Thread may be Removed Anytime!


Twitter may remove this content at anytime! Save it as PDF for later use!

Try unrolling a thread yourself!

how to unroll video
  1. Follow @ThreadReaderApp to mention us!

  2. From a Twitter thread mention us with a keyword "unroll"
@threadreaderapp unroll

Practice here first or read more on our help page!

More from @philletourneau

12 Nov 20
I’m thrilled to finally introduce you to Motusphera. A kinetic chandelier I designed and built.

100 stainless steel mirrored spheres suspended by nigh-invisible filament. Each sphere can be positioned with high-precision stepper motors to within 0.5mm

The base is clad in mirrored stainless steel with no visible screws or fixtures, and measures only 3½ inches thin.

The continuous square line of seamlessly diffused light is RGB+CW+WW LED, at a stunning 95+ CRI. Image
Motusphera is the culmination of 4 years of thinking and prototyping. It has over 1,700 individual parts.

I have to thank @bradcerasani, @rickfillion, @debreuil and my dad for their hours upon hours of advice and help. 🙏🏻 Image
Read 11 tweets
21 Jun 20

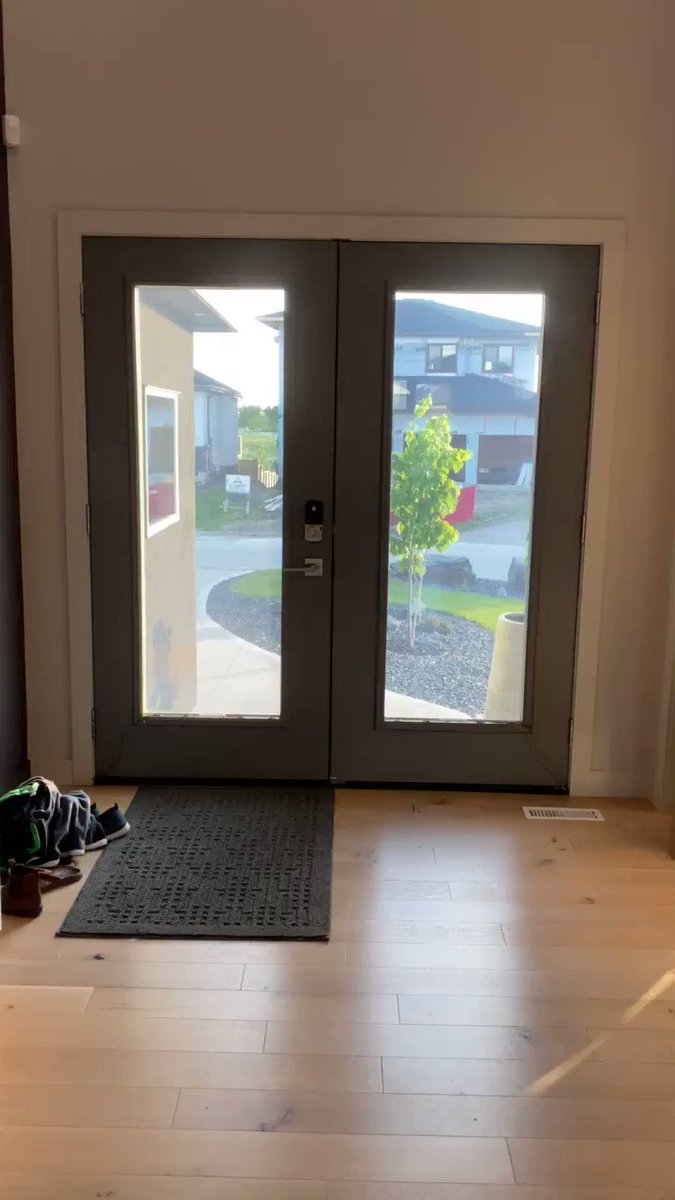

Finally installed the switchable film I bought for the front doors. Coming soon: HomeKit/Siri integration l.
