Turning Godavari river by using huge motors 139MW through vanes, gravity canals, tunnels, underground pumphouses & some storage reservoirs to back to the surface land for agriculcute, drinking water & industries on the name of #KaleshwaramProject & #LiftingARiver

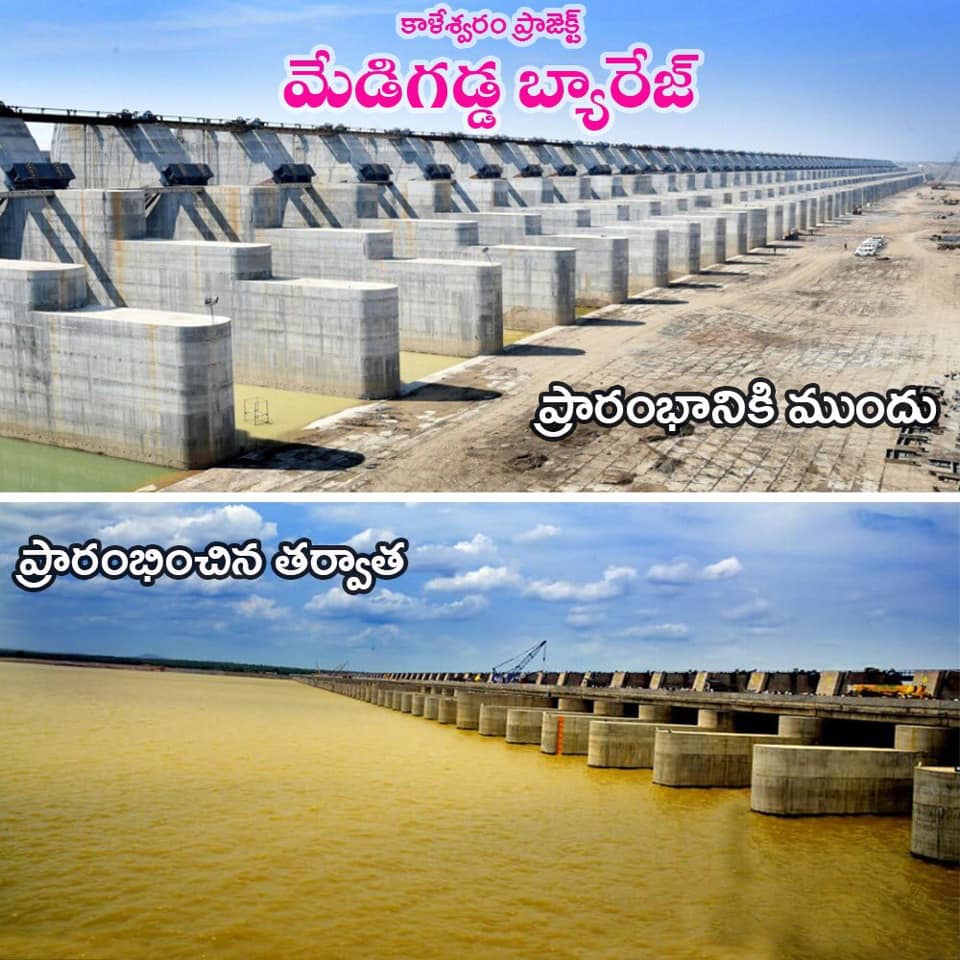

This #KaleshwaramProject starts at Medigadda Barrage with a storage capacity of 16.17TMC & FRL +100

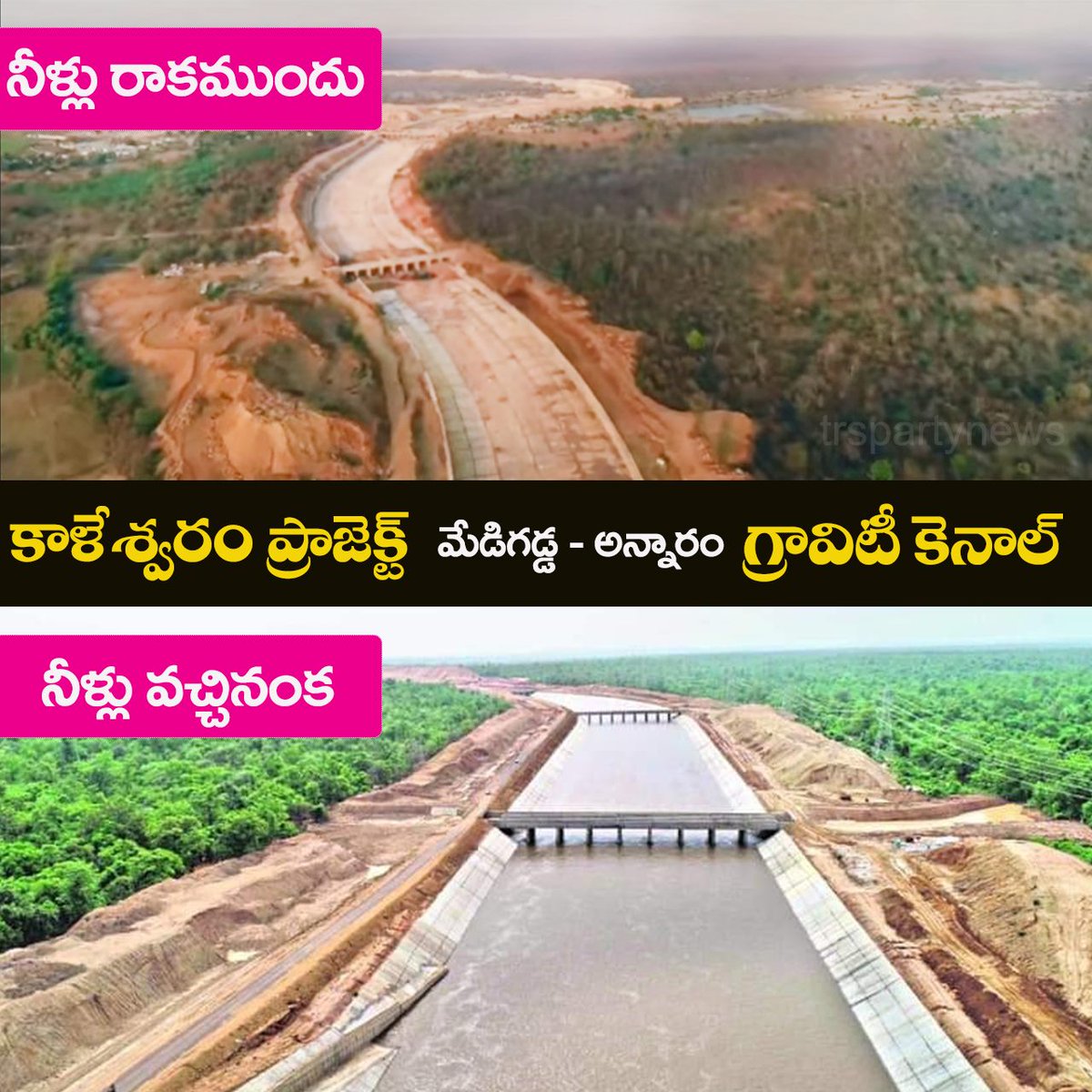

In Ph 1 Water will lift frm here at foreshore of Kannepalli on de name of Laxmi pumphouse to Annaram Barrage at 119mtr via lift & gravity canal
#LiftingARiver

In Ph2 water has lifted from Saraswathi pumphouse at Annaram Barrage( FRL +119) with storage capacity of 10.87TMC via lift & Gravity canal to Sundilla Barrage which is at +130 FRL & 8.83TMC storage capacity.
#LiftingARiver

In Ph 3 Sundilla barrarge water is lifting at Parwathi pumphouse via approach canal water will reach Sripada Yellampally reservoir at 148 FRL with storage capacity of 20.175TMC. All these are under LINK 1 of #KaleshwaramProject

In LINK II

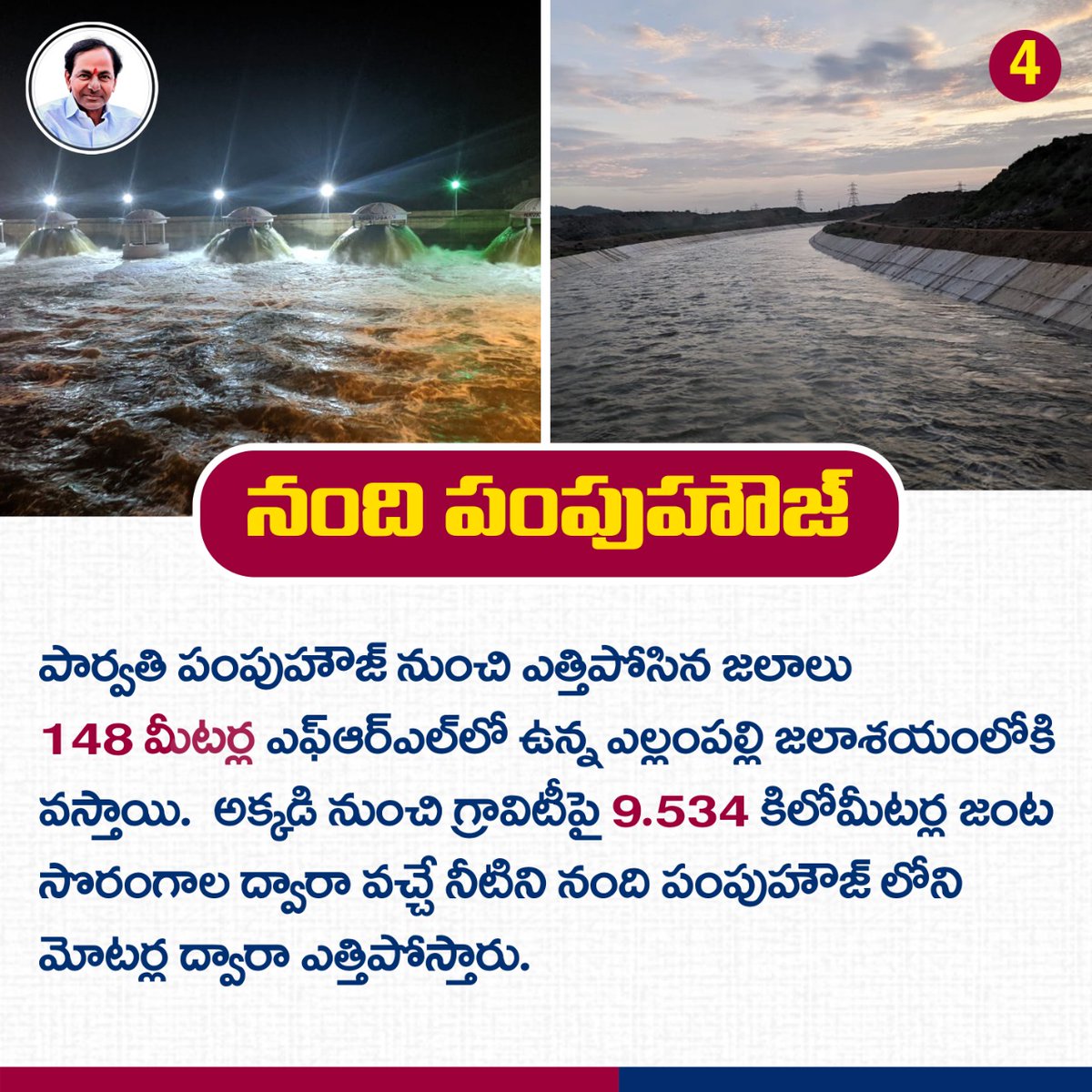

Water will Lift from Yellampally at Nandi pumphouse
send via Approach canal of 2.580KM then twin undergrond tunnel gravity canal of 9.534KM long to Medaram Tank of 0.78TMC capacity at +233 FRL
#LiftingARiver
#KaleshwaramProject

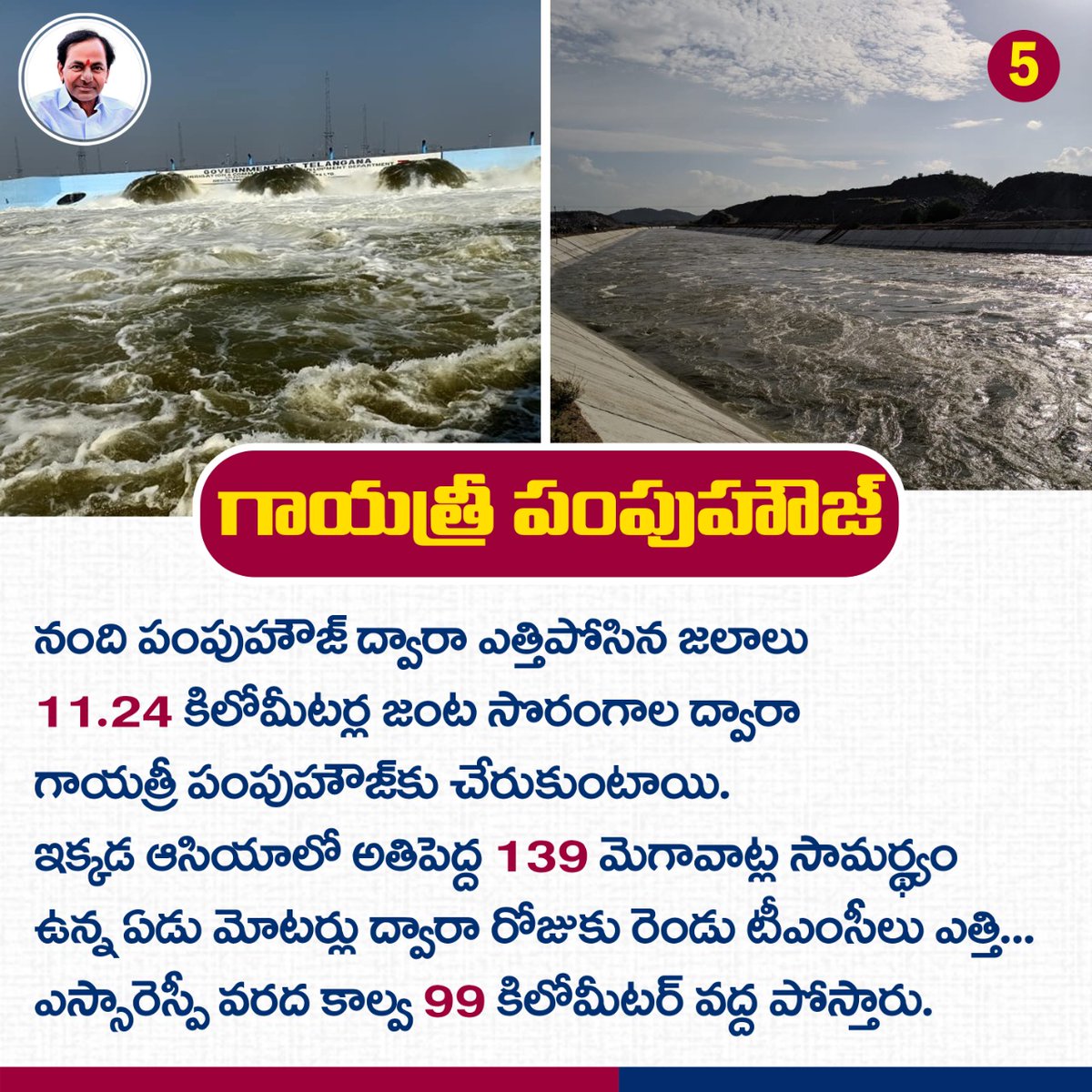

From Medaram Tank at Gayathri Pumphouse 2TMC water will lift daily with Asia's highest motor capacity of 139MW of 7 each then water to reach SRSP Flood flow canal at 99KM milestone.
#LiftingARiver
#KaleshwaramProject

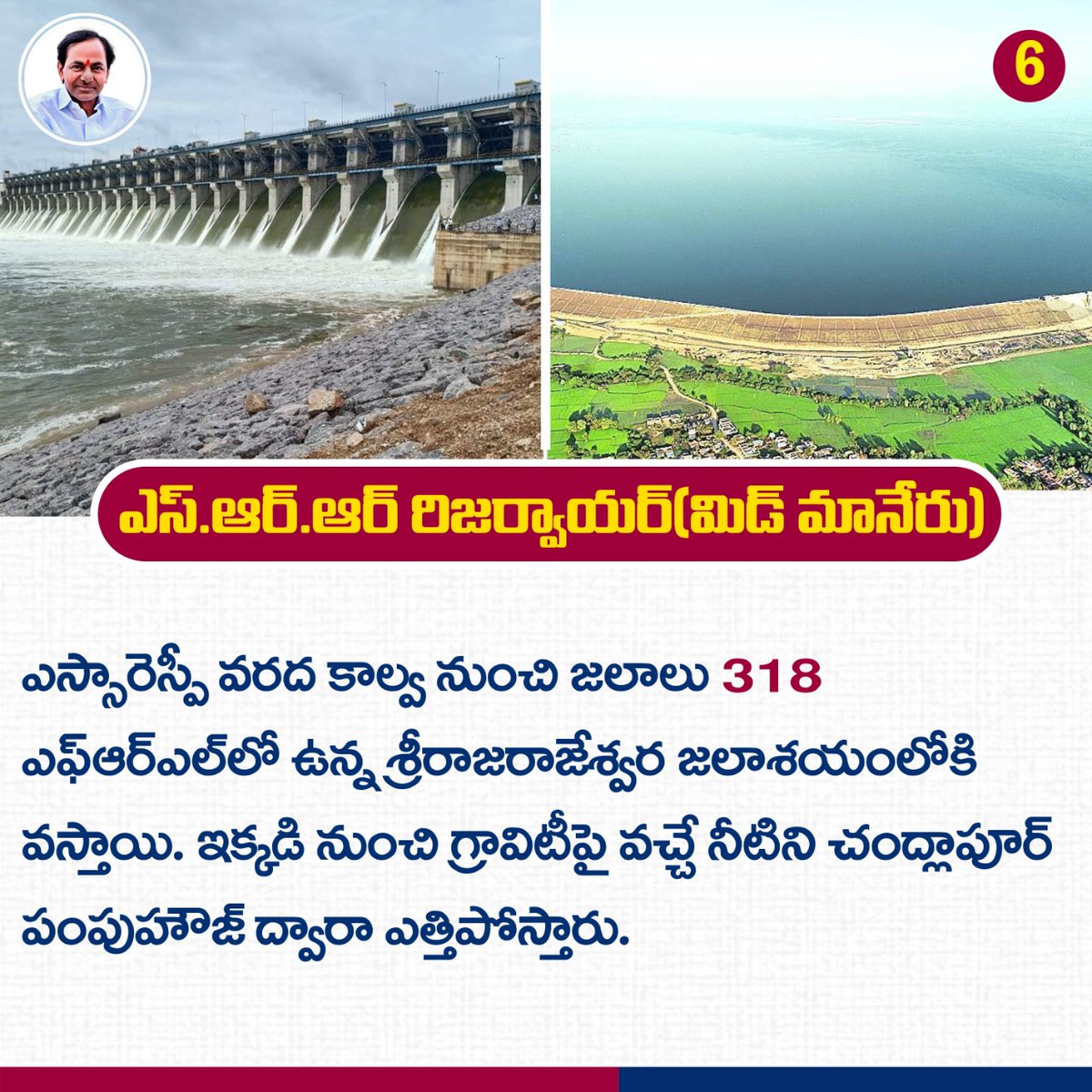

Via SRSP flood flow canal (SRSP FFC) water will reach via gravity canal to MMD (Sri Rajarajeshwara Reservoir) at +318 FRL with 25.875TMC which is the water hub for 3 dams
LMD +280.42FRL & 24.07TMC
UMD +451.50FRL & 2.20TMC
Anathagiri Reservoir +397.0FRL 3.5TMC
#LiftingARiver

In Link 3
At S.R.R. Reservoir(MMD), lift the water to reach Malakpet Reservoir with 3TMC capacity & at +432.5FRL via approach canal & Tunnel of 15KM.
Another end from MMD to LMD water will reach through gravity via Manair river
#KaleshwarramProject
#LiftingARiver

In LINK 4

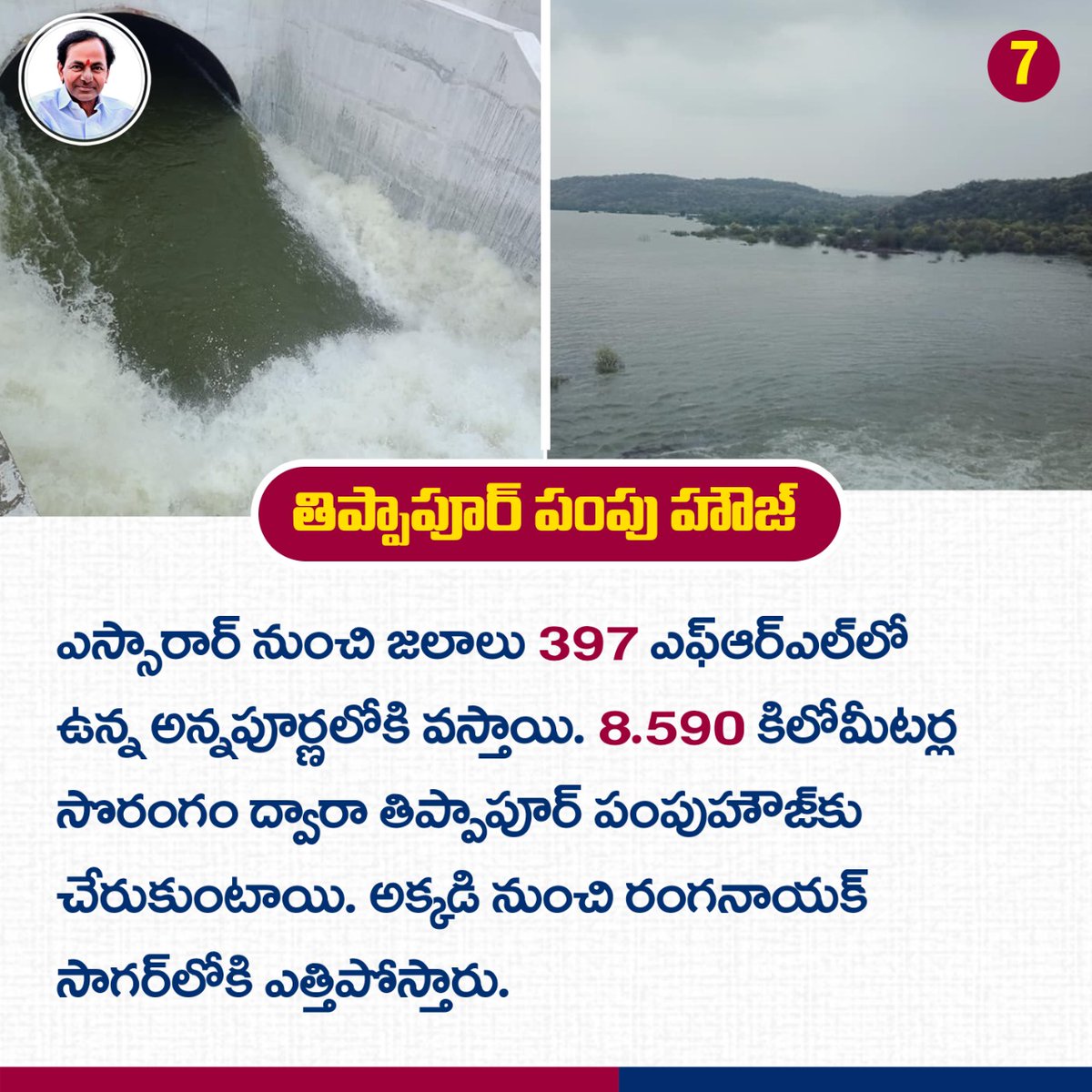

At MMD has Chandlapur Pumphouse lift the water, through A/C, G/C & tunnel of 11km will reach Anathagiri Reservoir at +397FRL/Sill +372 & 3.5TMC capacity. Frm here at Thippapur pumphouse water is pumping towards Ranganayaka sagar via tunnel.
#LiftingARiver

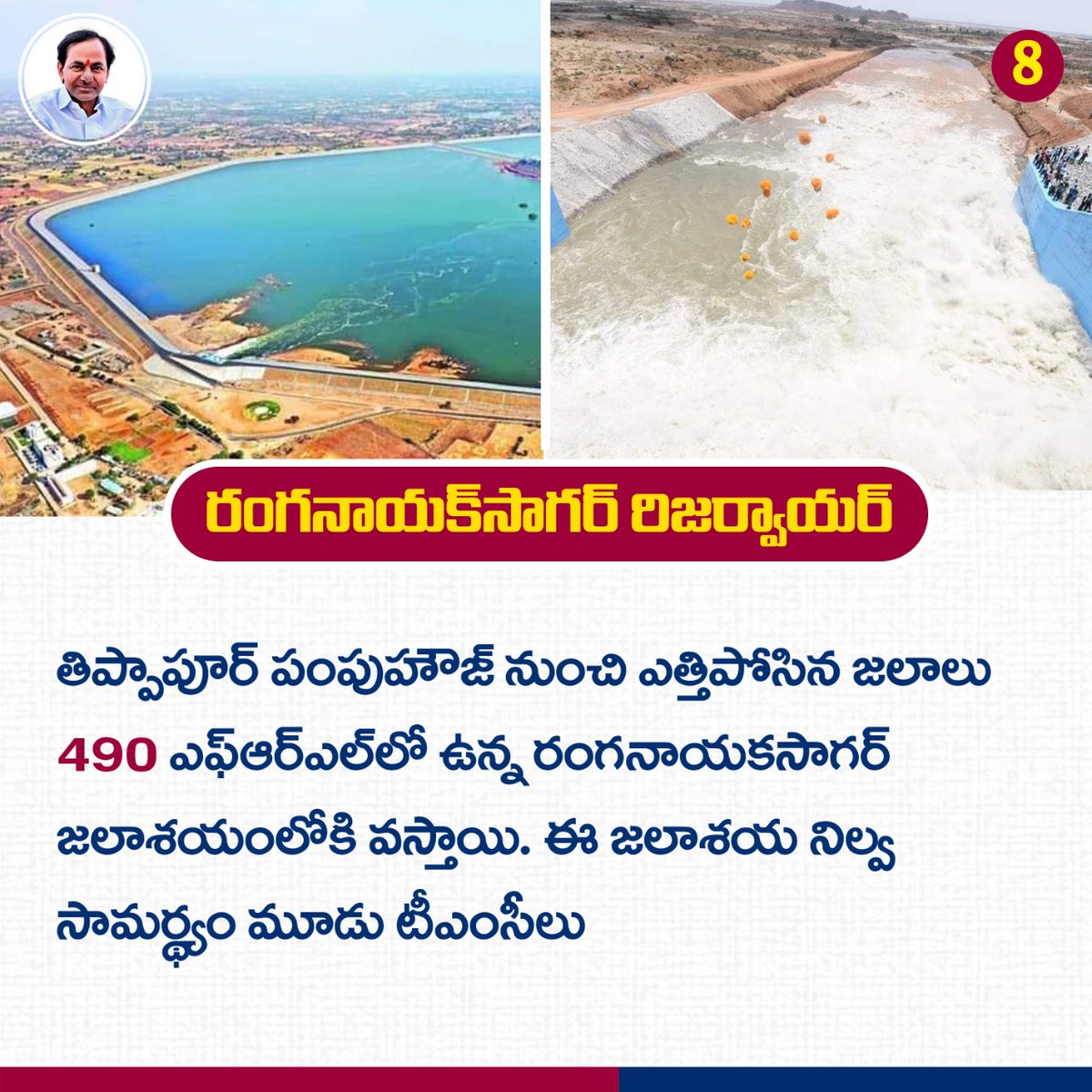

Sri Ranganayakasagar Reservoir is at +490FRL with 3.5TMC capacity to provide water to roughly 30K acres land & drinking water too.
SRR, Ananthagiri & Ranganayakasagar r having huge chances to develop in fisheries, tourism & weekend spots due to nearby Hyd city.
#LiftingARiver

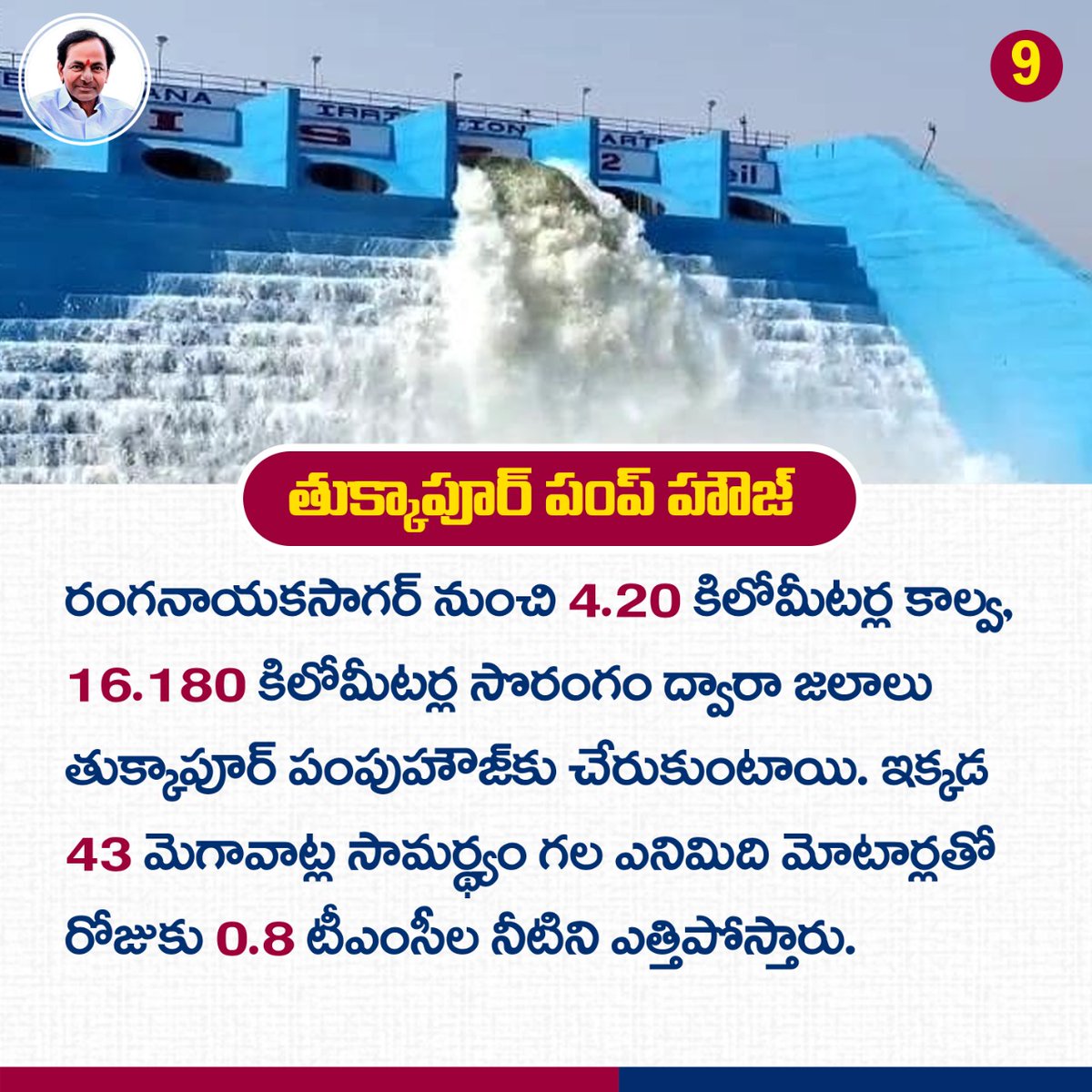

From Ranganayakasagar water will reach via A/C of 4.2KM & Tunnel of 16.18KM Thukkapur Pumphouse. Here we have 8x43MW motors & 0.8TMC lifting capacity per day to lift to reach water into Mallanna sagar
#LiftingARiver

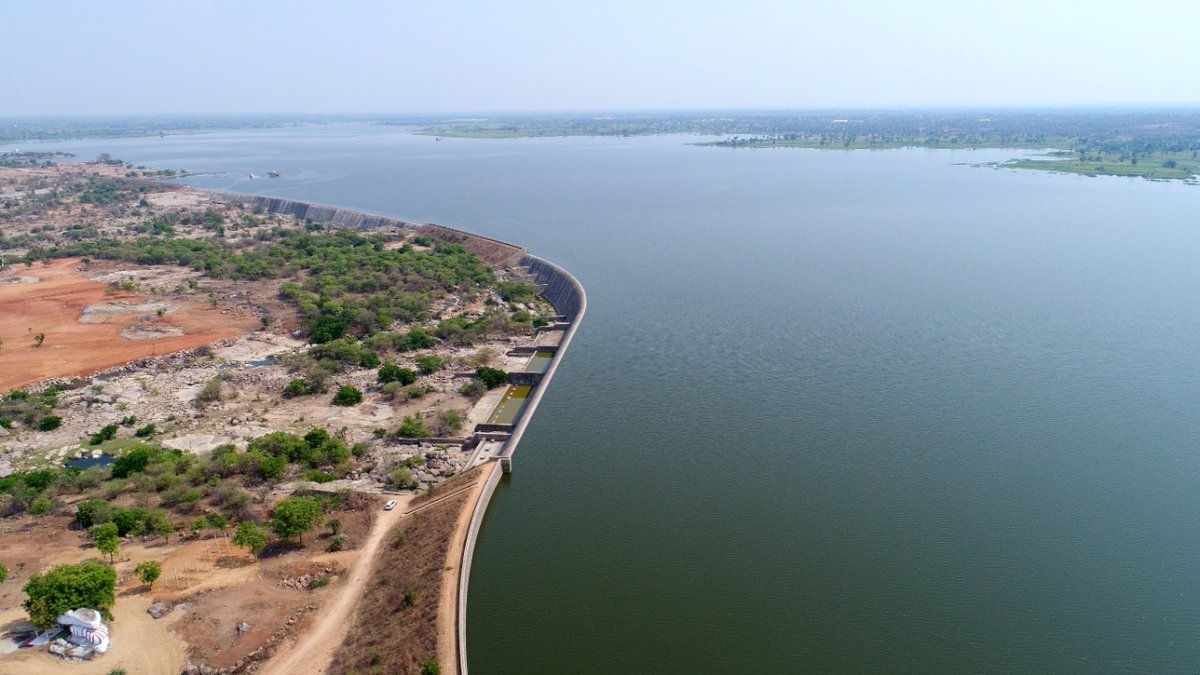

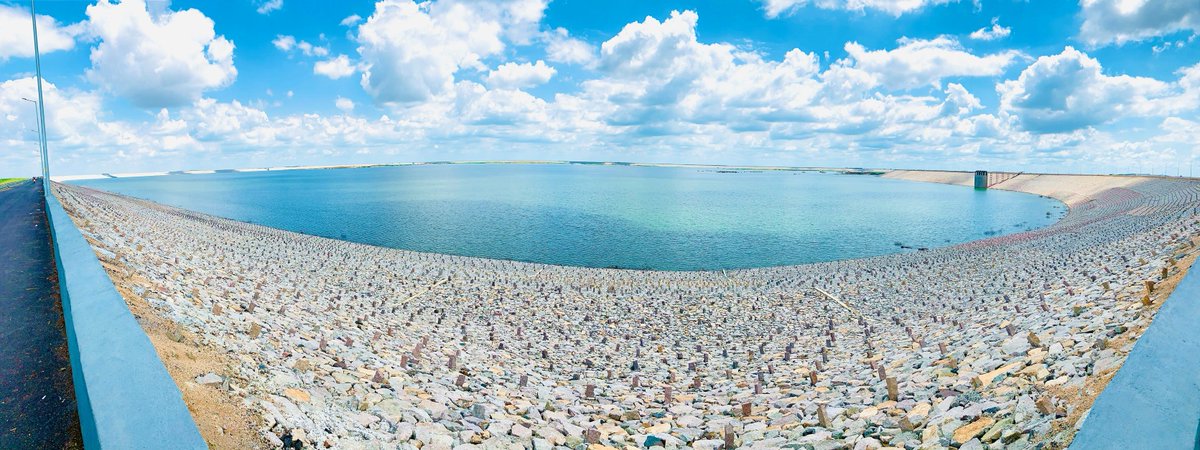

Mallanna Sagar dam at 557.00FRL with 50TMC capacity is aslo act as water bank for entire TS will serve
1.25L acres of agri land
Stabilization of
UMD & several tanks via Kudavelli Vagu with a Gravity canal
Gravity Canals for
Singur dam stabilization under Link 6
#LiftingARiver

Another G/C towards Akkaram PH under Link 4 & Link 5 for Baswapur.

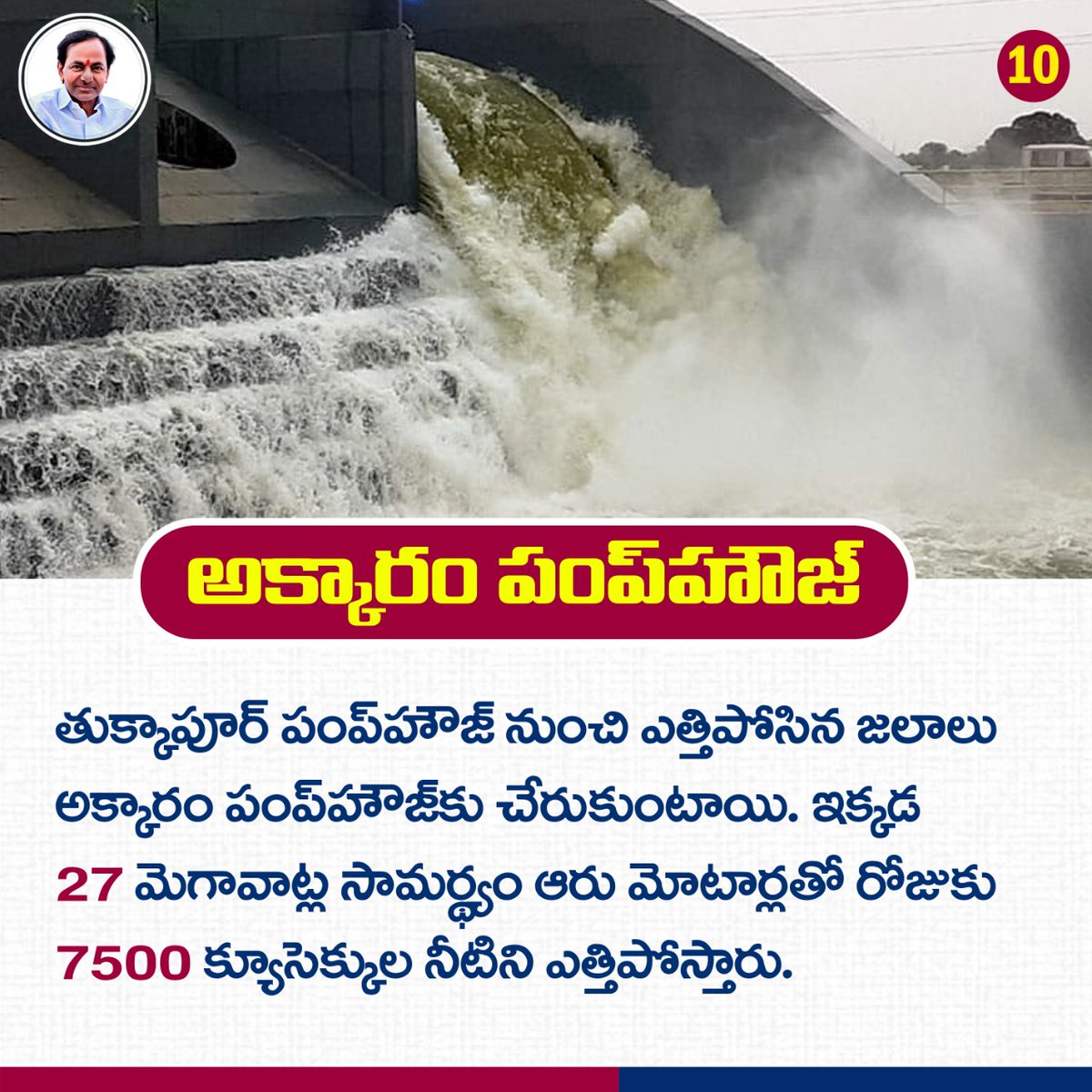

At Akkaram 6x27MW motors with 7500 cusecs lifting capacity per day towards Markook pumphouse.

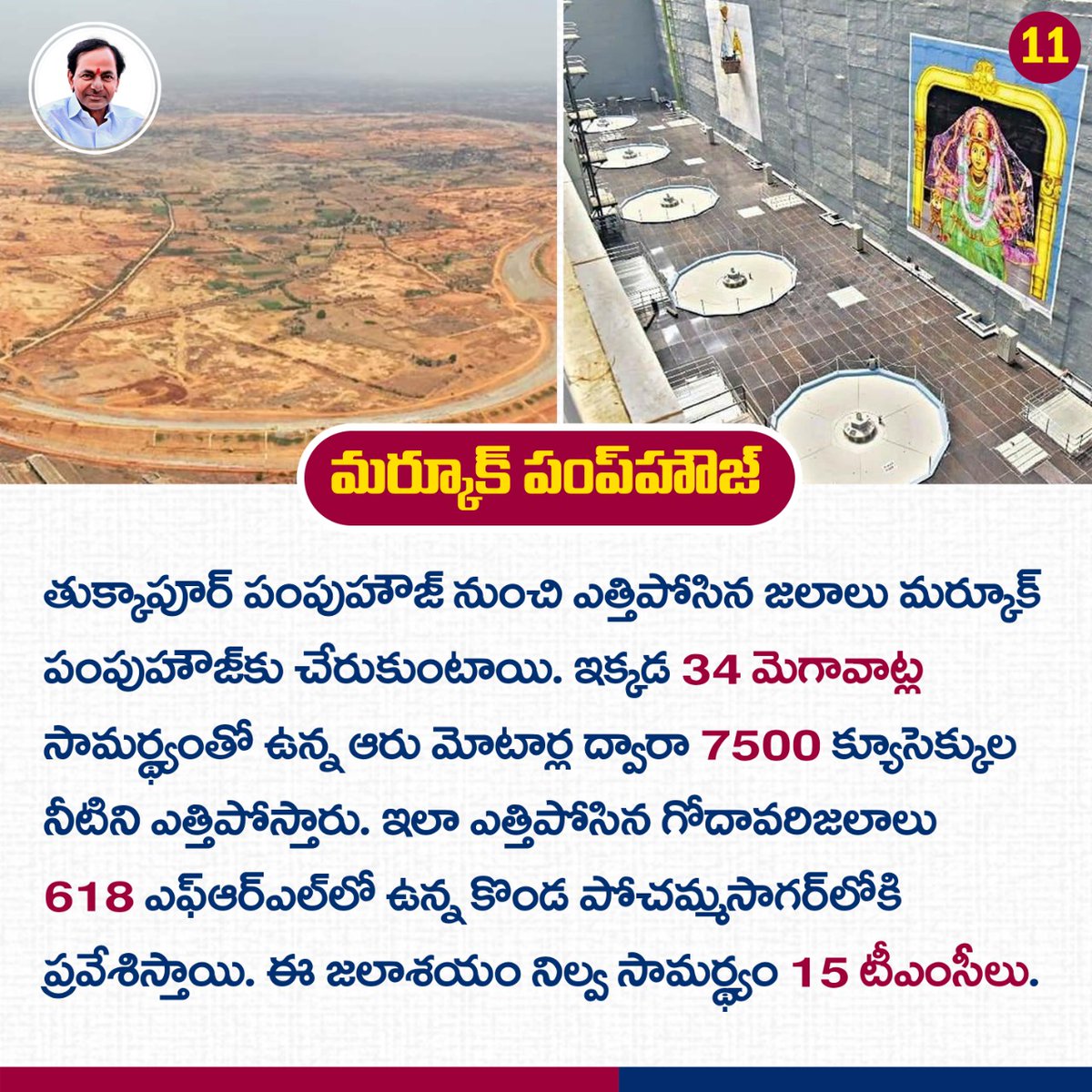

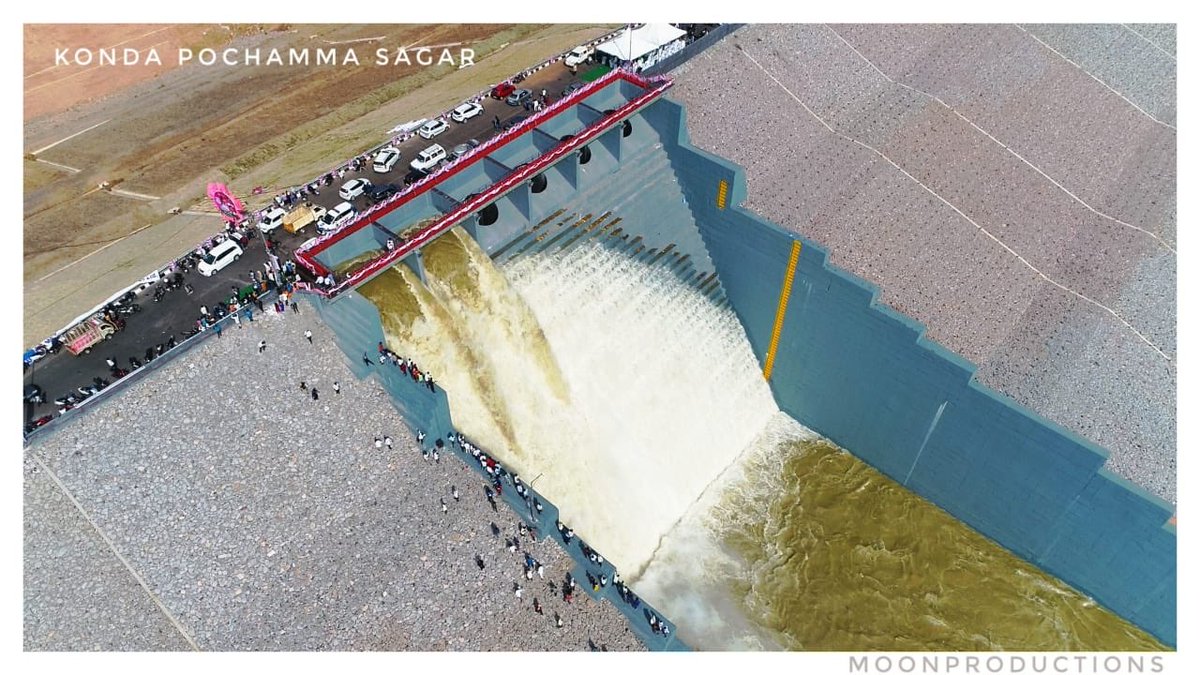

At Markook 6x34MW with 7500 cusecs per day lifting into Kondapochamma sagar with 15TMC & +618FRL
#LiftingARiver

Both Mallanna sagar & Kndapochamma sagar are also huge capacity to develop in tourism wise & as a Holiday spots with boating & paragliding due to nearby distance from Hyd city.
Same time huge increment in ground water.
#LiftingARiver
#KaleshwaramProject

From Kondapochammasagar water will pump into Haldi canal to stabilize the farm lands under tanks attach to this canal to stablize almost 1L acres & reach Nizam Sagar reservoir to stabilize agri land of 1.7L acres under it.
Alongside it's own capacity to give water to 2.85L acres

From this Kondapochamma is also used to stabilize the Shameerpet lake via gravity canal & give drinking water under Mission Bhageeratha to surrounding villages & to Hyd city via dedicated Keshavapur reservoir nearby Keesara.
#KaleshwaramProject
#LiftingARiver

In Link 5 from Mallanna sagar to Basvapur reservoir nearby Yadadri temple to give water to Aleru & Bhuvanagiri constituencies. This Basvapur is also become future holiday spot.
Another end Keshavapur is also.
