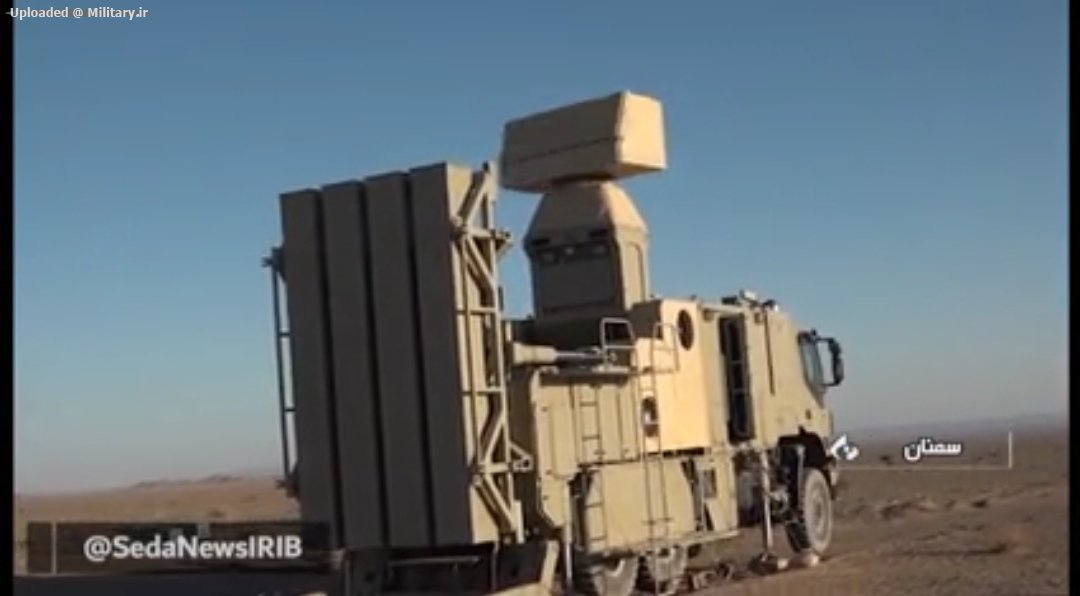

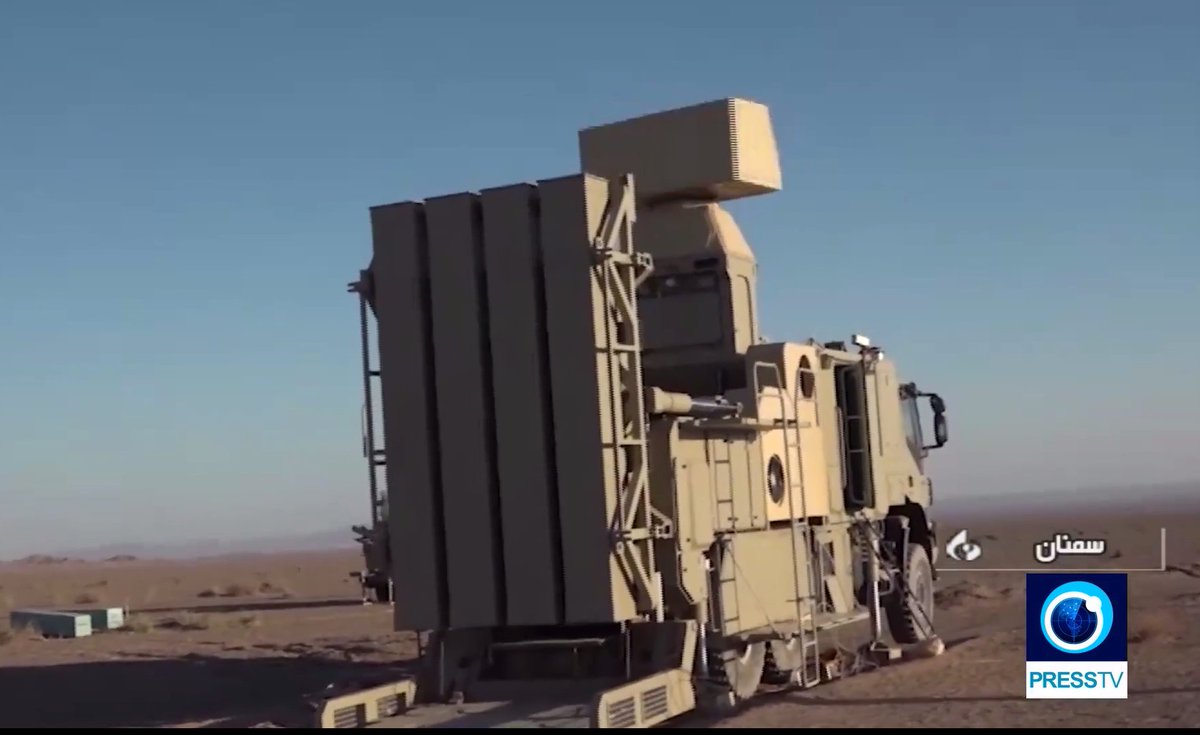

"Iranian Morpheus" shown before the Russian one

Chinese tried it with the FM-3000, but needed to spread it on two vehicles

What makes it special?
➡️ Multirole X-band AESA, multiple engagement
➡️ Omni directional missile launch (unlike Tor)
➡️ Less moving parts than rotating Tor
You may ask whats the deal about a Morpheus-like system?

➡️ More continuous operation (protection)
➡️ Due to higher reliability lower energy demand
➡️ Due to less moving parts (not rotating turret), distributed RF energy source (TRMs)
➡️ Just one multi-role AESA radar
Now you may say the new Iranian SAM system uses a rotating radar and hence can't work in such a Morpheus/"Sleep" stand-by mode.

Answer: A battery of four could very well work like the Morpheus, each electronically scanning a 90° sector (but yet unconfirmed, too few information)

• • •

Missing some Tweet in this thread? You can try to force a refresh

Keep Current with Patarames

Patarames Profile picture

Stay in touch and get notified when new unrolls are available from this author!

Read all threads

This Thread may be Removed Anytime!


Twitter may remove this content at anytime! Save it as PDF for later use!

Try unrolling a thread yourself!

how to unroll video
  1. Follow @ThreadReaderApp to mention us!

  2. From a Twitter thread mention us with a keyword "unroll"
@threadreaderapp unroll

Practice here first or read more on our help page!

More from @Pataramesh

11 Jun 20
So how can we quantify Salman's performance?

In the retweeted tweet I did a tech. based estimate

However due to the graph from the launch we can work with hard numbers

Here a step by step recipe, with the result of 8% empty mass at low l/d ratio: An impressive performance

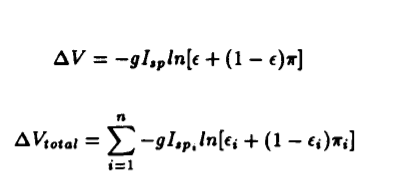

In my latest blogpost I show how the calculation for modelling a missile is done: Its no rocketscience...
