What's that ?
The raw scanner data for armadillo.
Can we reconstruct the armadillo from it ?

Step 1: Filter outliers

Step 2: smooth a bit

Step 3: Co3Ne reconstruction
(Surface reconstruction by computing restricted Voronoi cells in parallel, Dobrina Boltcheva and Bruno Lévy, Computer Aided Design - hal.inria.fr/hal-01596553/)

Step 4: Remesh with Voronoi Linear Parallel Enumeration

Step 5: texture atlas with ABF++ (hal.inria.fr/inria-00105689)

Step 6: bake normals from highres mesh using AABB

The normal map

Last but not least: #geogram up to date
github.com/BrunoLevy/geog…
The built-in geobox program has all these functionalities.
Geogram, a career-long reproducible science experience !

Ooohhh, there is also this one !

Since Co3Ne uses the original points, it can reconstruct details I did not see before in the "official" reconstructions !

Try it "at home" !
graphics.stanford.edu/data/3Dscanrep/

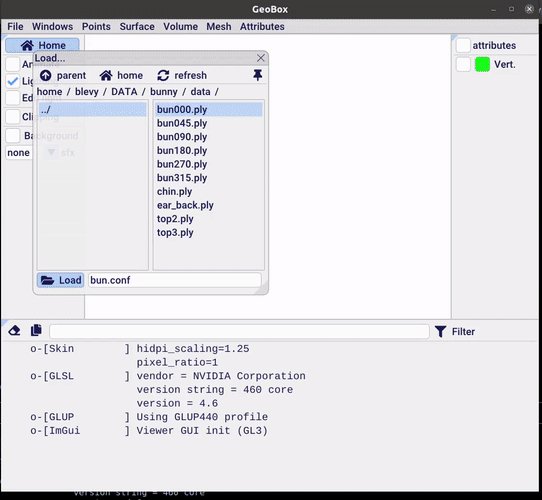

#geogram / geobox can now directly load ".conf" files
github.com/BrunoLevy/geog…
