Super easy explain of physiologic Hepatic Pulsed Wave Doppler waveform.

🧵1/
#doppler #radiology #pocus #vexus #hemodinamics #butterflyiq @ButterflyNetInc @hepocus
2/
After appropriate technique to get PWD of suprahepatic Veins.
Look for the 4 classic waves of the tetraphasic spectrum of the hepatic veins (a,S,v,D).
3/

Most of the flow in the hepatic veins is hepatofugal (towards heart).
4/

The spectrum is phasic and predominantly anterograde (towards heart).
5/ Waves Meaning.

a: Atrial contraction. It's retrograde.
6/

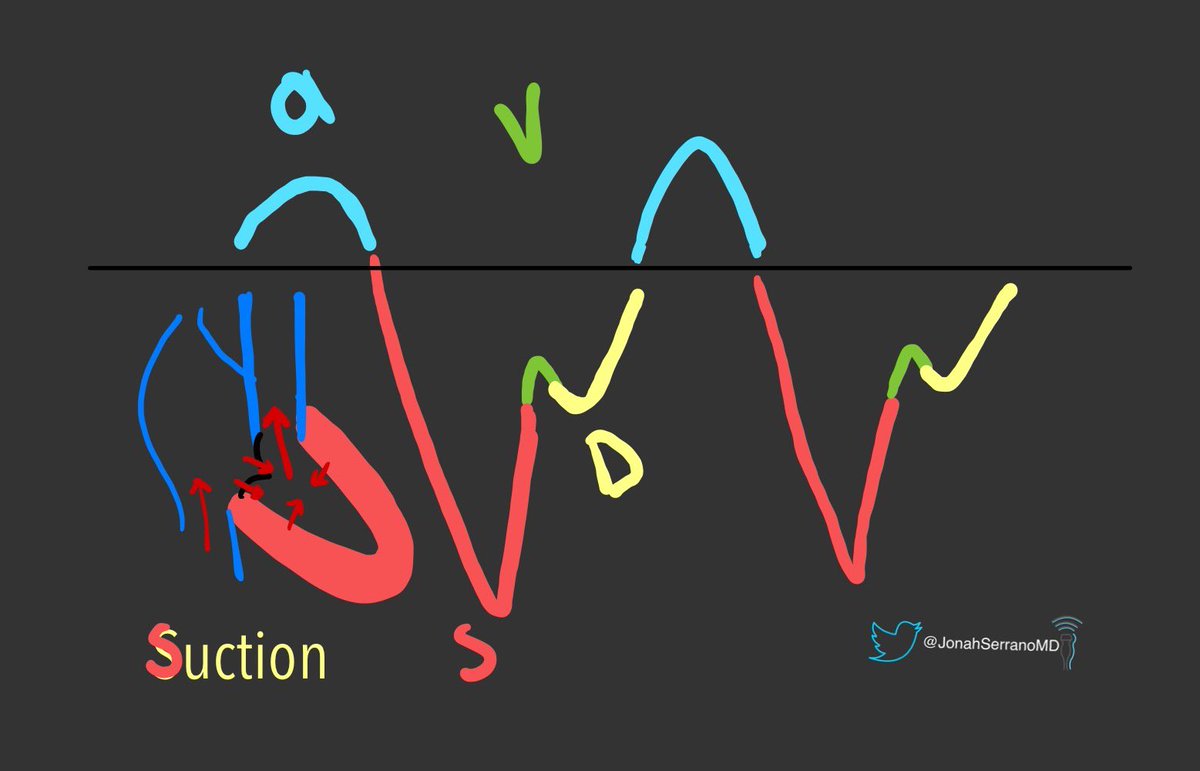

S: Systole causes a suction effect in the right atrium. Most anterograde wave of the cycle.
7/

v: Peak represents the opening of the tricuspid valve and the transition from systole to diastole.
8/

D: Rapid ventricular filling.
9/

Now we can link it to the EKG trace.
10/
RT:)
Resource:

• • •
