PSX on FPGA, update #16 :

GTE hardware implementation 86% complete.
Registers 100%, microcode 86%, data path and other mostly complete.

patreon.com/posts/39562211

#fpga #psx #MiSTerFPGA PSX on FPGA, update #17 :
Now 95% done. RTPS / RTPT pass Amidog's test suite.

Remains :
- Only MVMVA instruction. (its two variants)
- Slow down instructions that takes less cycle than original timing.
- Faster DPCT (17 cycle instead of 18).

As long as the computer is not asking back the intent for any ambiguous definition, automatic code generation from natural languages are doomed.

https://twitter.com/GabrielG439/status/1279178769949798400

Computer also need to define data structure AND algorithm.
"Hi, I want a link list of name and price".
Ok, can the list be empty ? Do you want fast parsing, fast insertion ? Computer should even be able to refactor and switch to different data structure based on code run.

--- PSX on FPGA ---
Update #11 : New post about PSX FPGA (Visible to everybody)
I think you'll like it.

patreon.com/posts/37038491

Stay safe.

Please like / RT for project awareness as usual.
#fpga #psx #MiSTerFPGA Seems I found my next bug !
(Sending GPU command from Avocado PSX emulator feeding my GPU)

Little test with Twitter.

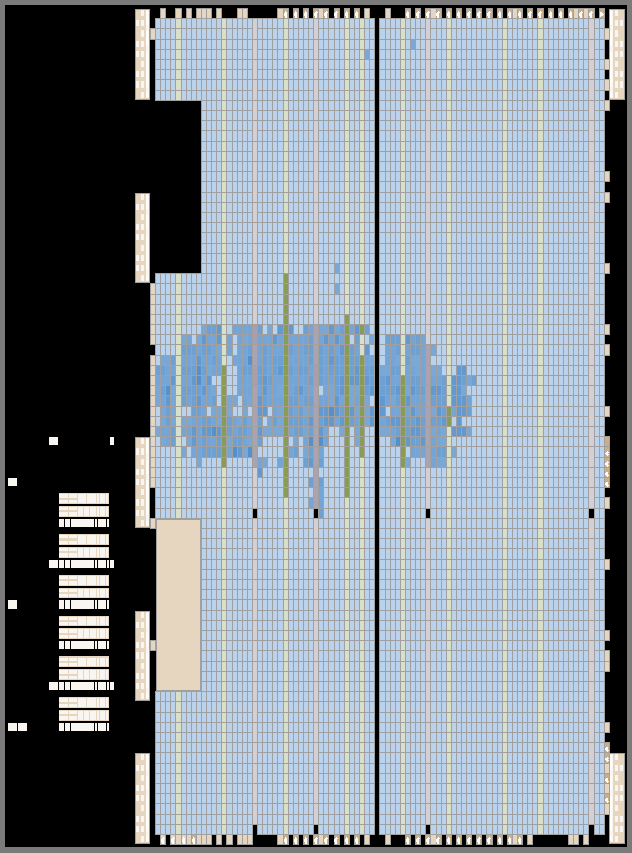

The image is 6000x6000 pixels. This is the design of my chip as of tonight. Not complete still... You can see all the logic gates and all the things that goes in.

Some stuff is not well shown : a single adder or multiplier is also shown as a single box.

Happy 25th birthday to the Playstation 1.

And happy birth to my patreon for the PSX FPGA Project :
patreon.com/laxer3a

Here is the appetizer...
#misterfpga #playstation1 #fpga This is a simulation of the hardware GPU, each frame is 50 clock cycle. See my patreon post ;-)

PSX has a thing like a mask bit in the buffer you render to.
It is like a stencil buffer of 1 bit in OpenGL. Except that the stencil write value can be decided by the texture.

In the PSX, it means that you need to READ the buffer before writing to it... wasting bandwidth,not... It seems obvious from the benchmark (made by Avocado's emu author) that it is using a trick somehow. Most likely the VRAM / SGRAM.

What I did is to implement a STENCIL CACHE (ST$) in FPGA.
The idea is to cache the status of all the bit 15 for all the VRAM for all 16 bit values.

I did not tweet much about my project.

I have been spending roughly 7+ month free time on making the PSX in FPGA. (All chips except CPU)

Today, I finally did plug all the parts of my PSX's GPU implementation together. The goal is to work at 33.8 Mhz like the original.
My design is most likely completely different internally.

I have a double pixel pipeline (should be able to push 2 pix / clk) even textured.
Arch. support for burst handled but for now only a fake memory bus for verilator debug.

Interesting approach from Apple for Rasterization Rate Maps (RRM) vs NVidia's Variable Rate Shading (VRS).
From 13"15':
developer.apple.com/videos/play/te…
NVidia's stuff :
developer.nvidia.com/vrworks/graphi…

Here is my understanding (just from docs/talk) : In the case of NVidia VRS, we saves on shader compute operations (and tex read).
But do not save on target buffer bandwidth read/write. (= even if we compute 1 pixel, we write 4 pixels to the target buffer)

On mobile, Apple probably decided that bandwidth was MORE critical...

Is a C++ revolution starting ????

https://twitter.com/zeuxcg/status/1078224978456268800

Finally release my demo at TDF 2018 :

Video part 1 :

Chip register doc (dev doc with TODO, ignore, audio is not complete)
drive.google.com/open?id=1cMQ7f… Second Part :

Found an old article of mine for dithering in FPGA.
Increase the displayed color depth count using 1bit temporal dithering :
ja.scribd.com/document/49604… A possible VHDL Implementation :
ja.scribd.com/doc/4960550/di…

Changed mostly NOTHING (see previous post). Rebuild. Timing Noise gone 95%.

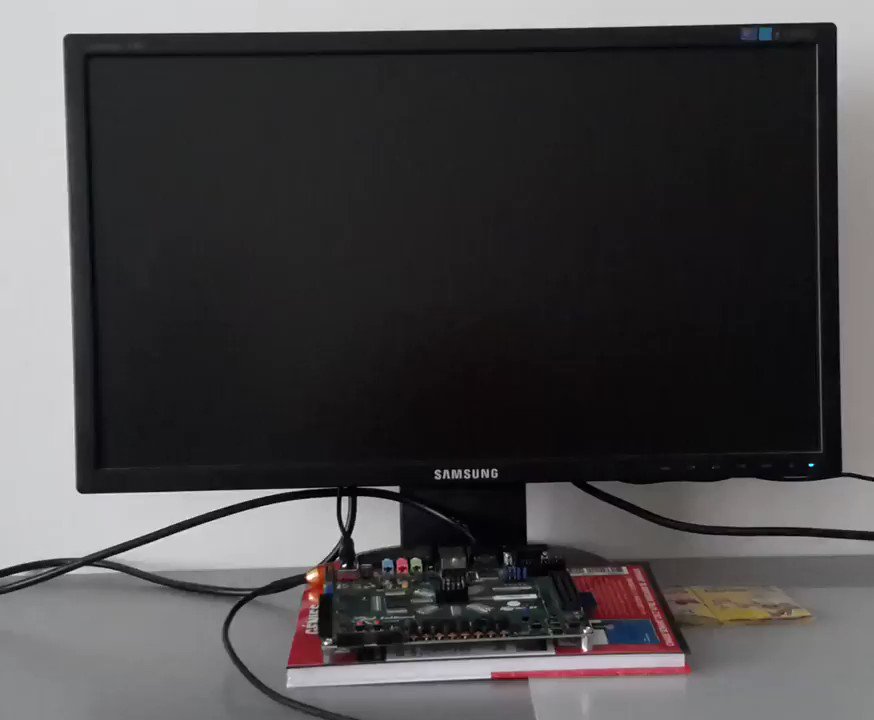

Hummm... Overly arrogant about 100Mhz clock + 55 Mhz pixel clock Note : glitch inside image are most likely a D-Cache issue with CPU write. Would not worry much.
Still have wobbling...
