Widespread daisy-chaining will change hardware forever. Most peripherals connect back to a mainboard that must know the number of peripherals in advance, and everything must travel back all the way. Daisychaining fixes that.

🧵of daisychainable protocols:
Quick review in case you think daisy-chain is something to do with flowers: The daisychaining pattern is to connect many devices together not by connecting each to a central hub, but by connecting each to the previous one, somewhat like the links in a chain.
First and foremost: power. This one is easy, but also easy to forget. You can power any number of devices in the same line. So long as they use the same voltage, and you have enough amperage, daisychaining power is the way to go. What for you ask? I'm glad you did.
i2c is the obvious well-known example. Many sensors and actuators availabe on the market. Low-speed and short-distance? i2c is probably what you need. (or with HS I2C, go up to 3.4mb/s) i2c-bus.org
Before we move on, the qwiic system deserves a mention: it streamlines i2c and power into a simple, daisy-chainable connector, with quite a few peripherals available by SparkFun: sparkfun.com/qwiic
Many people don't know that SPI has a daisy-chainable mode: maximintegrated.com/en/design/tech…
The automotive world of course knows all this, because it's wired everything up through CAN bus. en.wikipedia.org/wiki/CAN_bus
Ok fine, that's all well and good, but did you know Thunderbolt is daisy-chainable?

(if you heard that USB4 will include thunderbolt, that's true, but not the daisychaining part AFAICT 😡) anandtech.com/show/10248/thu…
Allright, you're hip with the wires, you knew all of that. But did you know you can daisychain Ethernet?

Check mate, mate!

dxu3qlulsm4jd.cloudfront.net/sites/www.volt…
I think the musicians in the group will stab me if I don't mention MIDI. An incredible invention that is behind synthesizers everywhere, and so much more: en.wikipedia.org/wiki/MIDI
What about storage? Have no fear, SCSI, and also FireWire(!) have got your back:

en.wikipedia.org/wiki/SCSI
smallbusiness.chron.com/connect-multip…
z

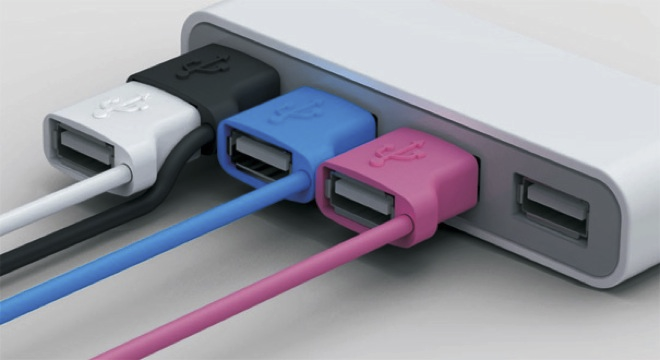

The dream, however, still unfulfilled: daisy-chainable USB without extra components. Until then, we'll have to make do with some nifty setups that hide a hub inside the connector: wired.com/2010/07/daisy-…
That said, I'm getting a bit of inspiration with all these protocols in one place: Could we bootstrap USB into becoming daisychainable by passing an i2c bus through the "alt" wires of the usb-c connector, so that the master can tell peripherals if they should be on or off?
In other news, the debugging standard JTAG apparently is all over daisychaining. No idea what this is for, maybe something cool? en.wikipedia.org/wiki/JTAG
Honorable mention: m5stack, because it looks super cool, and is all about chainin' daisies, I mean modules: m5stack.com
What am I missing? Any other protocols you know of? I'm investigating this for some next-gen balena hardware stuff, so your assistance may end up making a difference. Thanks!

• • •
