Random tech pictures from @ScarbsTech archive #USGP 2015

Nuts... 🥜🥜🥜

Timing beacon

Uprights and hubs

Fluids....

DRS, Splitter support, serrated wing flap and cooling ducts

Radiator and intercooler/plenum pipes

• • •

Missing some Tweet in this thread? You can try to force a refresh

This Thread may be Removed Anytime!

Twitter may remove this content at anytime! Save it as PDF for later use!

More from @ScarbsTech

Craig Scarborough

@ScarbsTech

22 Oct

A thread about #F1 trick rear suspension.
Teams have been using a trick set up called "collapsible rear heave springs". This boosts top speed and has been a trick used knowingly by all teams for years.

At speed increases, downforce increases the load on the suspension, thereby compressing it. Compress too much and the airflow under the car stalls losing drag/downforce. There comes a point that the car has enough downforce even with a stalled underfloor, so teams exploit this.

As the rear compresses, the rear heave gas spring resists the force to keep the rear end propped up. At a predetermined speed, the load on the gas spring opens a valve, collapsing the rear to lower it and stall it.

Read 5 tweets

Craig Scarborough

@ScarbsTech

17 Oct

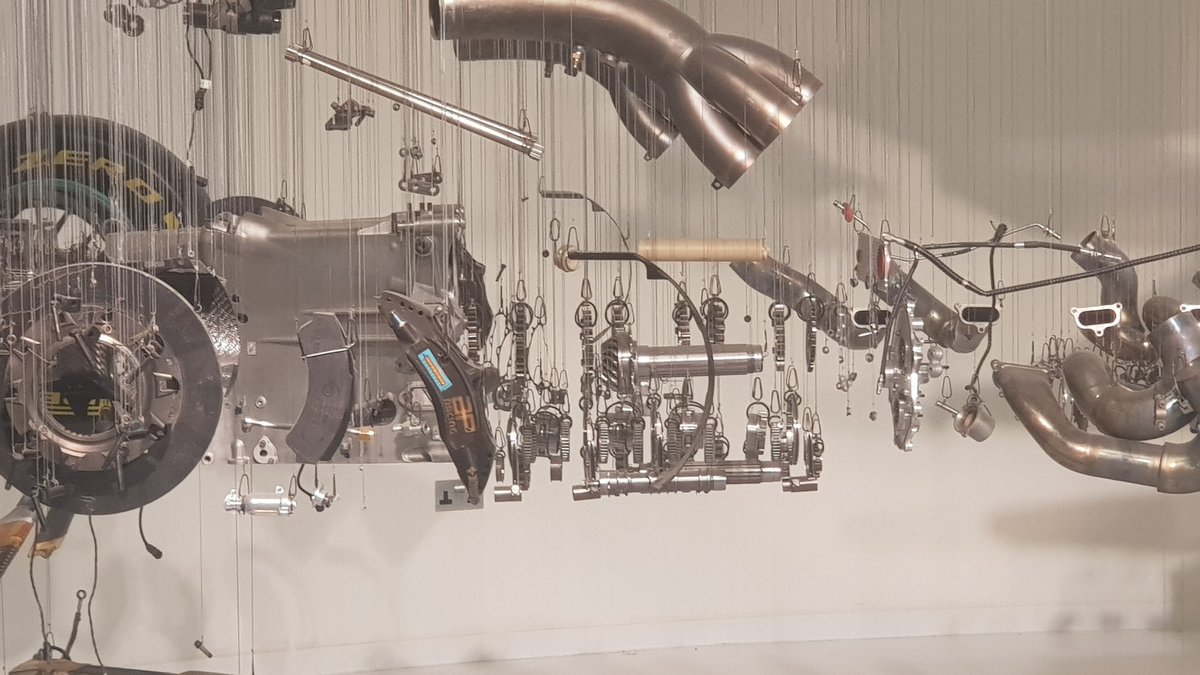

Here's an overview of the hanging #F1 car, installed at Mercedes Benz world in Surrey, UK. (Entry is free!)

Cockpit, pedals and steering details

Differential and gearbox

Read 7 tweets

Craig Scarborough

@ScarbsTech

15 Oct

@MercedesBenzUK

Friday fun, a few weeks back I visited @MercedesBenzUK world at Brooklands. There's a load of F1, FE and historical Merc stuff there.
100% recommended
This is a deep dive on a W06
