Sorry everyone, long overdue, but its time for a new MEV thread

Today we look at the Flashbots auction and the searchers that were able to game it using a super clever exploit in how we priced and merged bundles

Let's go 👇🏻🧵

For our journey today you will need a deep knowledge of Flashbots bundles

Bundles are groups of transactions executed in the order they are provided. Either the entire bundle is executed, or none of it is

That allows users to express transaction preferences very granularly

For some time we could only support a single bundle per block, but recently Flashbots introduced the ability to merge independent bundles!

Here's a thread on that release

https://twitter.com/bertcmiller/status/1396961882121121799

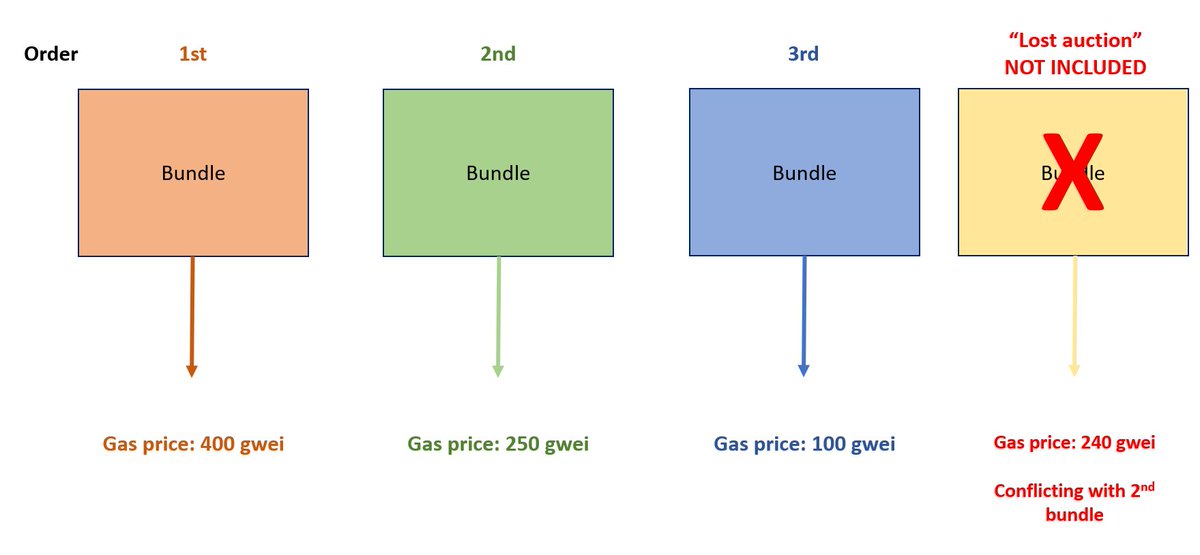

Every block there are a huge number of bundles. How do we decide what goes on chain and in what order?

First each bundle is simulated individually on top of the latest block to find out what the bundle's expected gas price is.

Then bundles are sorted by their expected gas price from highest to lowest.

If two bundles conflict then the bundle with a higher gas price is included. The other bundle is discarded.

Somewhere in the last two tweets was a slight gap in logic that searchers were able to find and exploit.

Did you catch it?

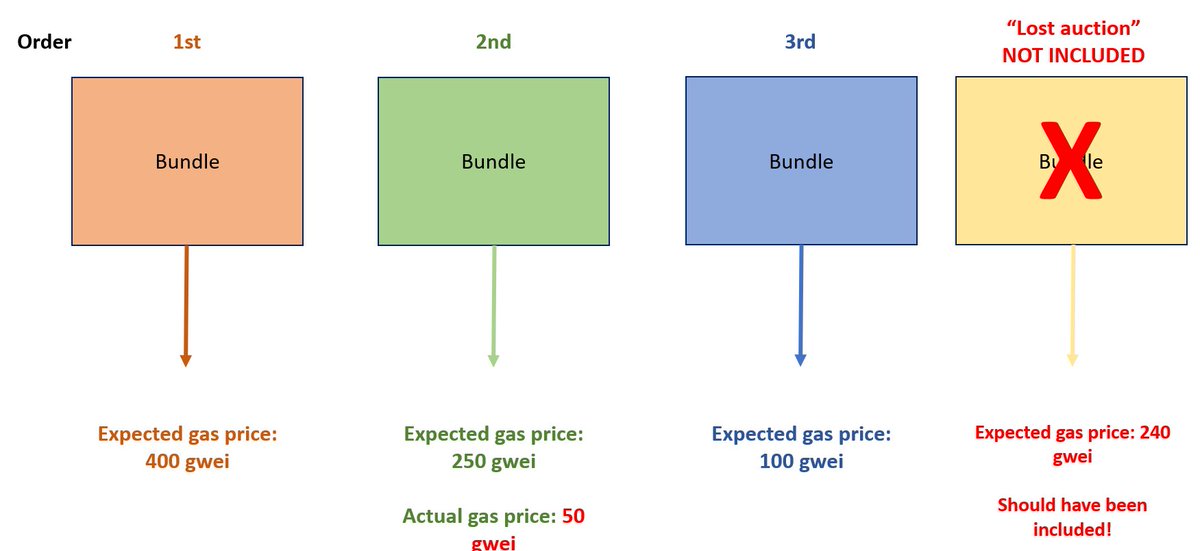

Bundles are sorted according to their simulated gas price at the top of a block

But with merging some bundles weren't actually at the top of the block! They are behind other bundles

The gap: there was no check ensuring that bundles have the same gas price before & after merging

Bundles can pay tx fees via smart contracts. Thus, if a bundle could tell it was merged behind another bundle then it could dynamically reduce its fees to lower its gas price!

Miners would sort bundles expecting one gas price, but find a different gas price when they were mined

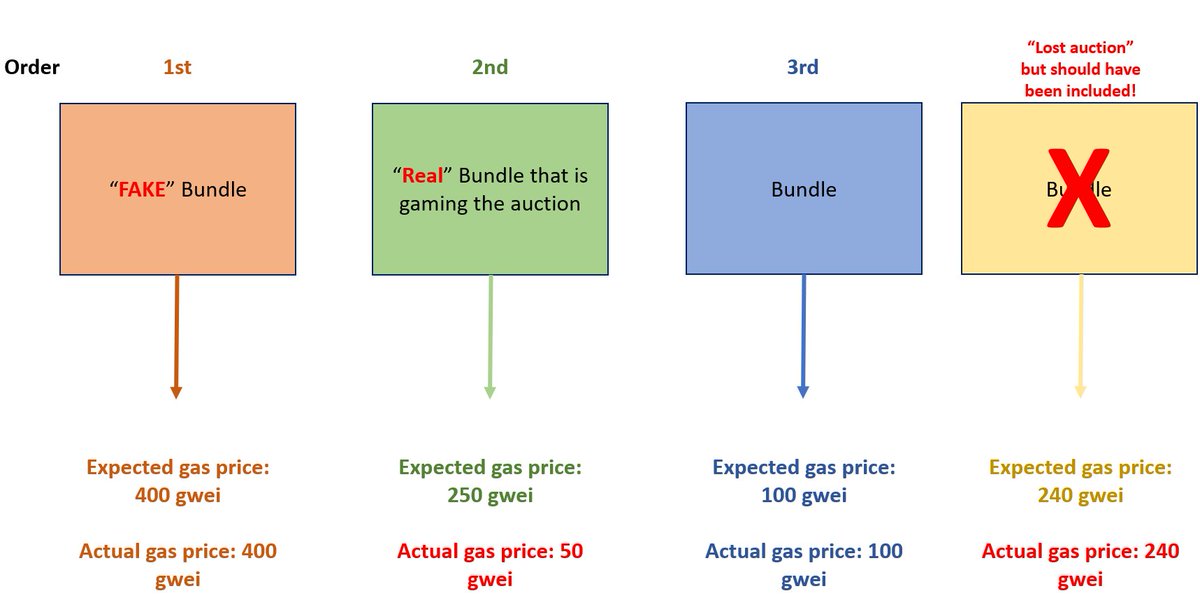

Here's what that looked like in practice

The green bundle looked like it would beat the yellow bundle, but actually it ended up paying way less!

The miner and the yellow bundle's author lost out on revenue while the green bundle's author profited at their expense

How was this done?

There's no way for a transaction to check where it is in a block natively, so searchers needed to get clever.

Searchers would send a "fake" bundle in parallel to their "real" bundle. The fake bundle had a high gas price & was designed to very likely be the 1st bundle in the block.

The "fake" bundle would cost searchers a bit of ETH to send, that was *the point*

If the "fake" bundle had landed 1st in a block it would spend a bit of the searcher's ETH

Then in the "real" bundle searchers could check if their balance of ETH had decreased any in that block!

If so they knew their "real" bundle had been merged behind the "fake" one!

With this knowledge that it had been merged behind the "fake" bundle, the "real" bundle could safely decrease its payment to the miner, thus gaming the auction

The fix for this was simple: check to make sure that bundles pay no less than we expect after being merged.

The MEV ecosystem is hypercompetitive. Searchers will find and use anything they can to gain an edge.

Uncle bandit attacks, tricking other searchers' simulations, and now this show that the reach of searchers goes beyond what is on-chain

Where will searchers find an edge next?
