1/ Everybody told me they liked the last thread about simple effects in Pinni, so why not another one?

Customizable transition shaders in less than 4 lines 🧵:
#gamedev #tutorial #shader #hlsl #madewithunity

2/ Once again starting from a basic fragment shader. This will work in ANY engine, but we're using GLSL for simplicity.

Here's our base texture:

3/ What's the goal of this shader?

1. We want to black out the screen up to a certain point
2. That point should depend on the progress of the transition

Let's map the path of the transition in black and white. We can get a value based on each UV's distance from the center.

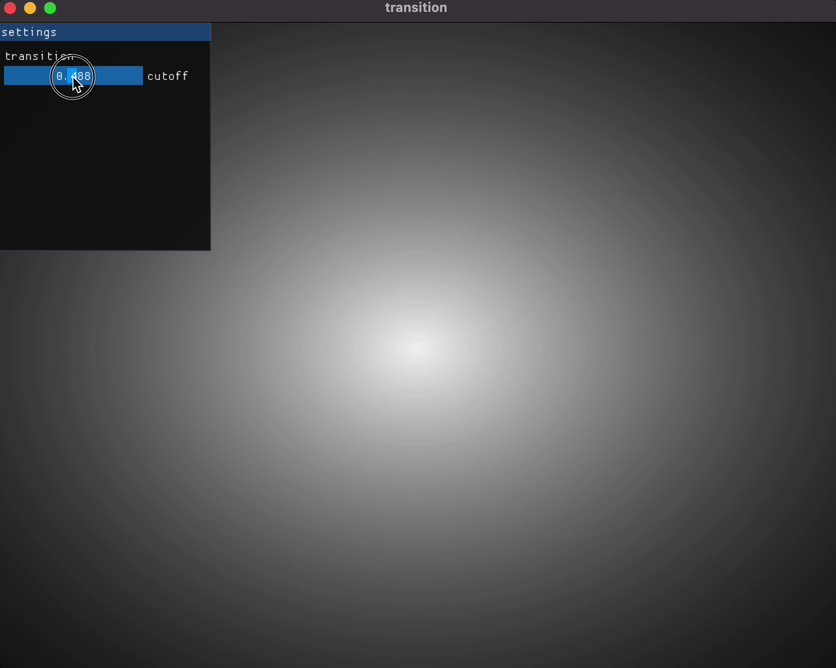

/4 Now let's add a uniform called `cutoff`, and use that to push the map values by +/- 1.0 in either direction.

You can already see where the effect's going; but just wait until you see what one extra line can do!

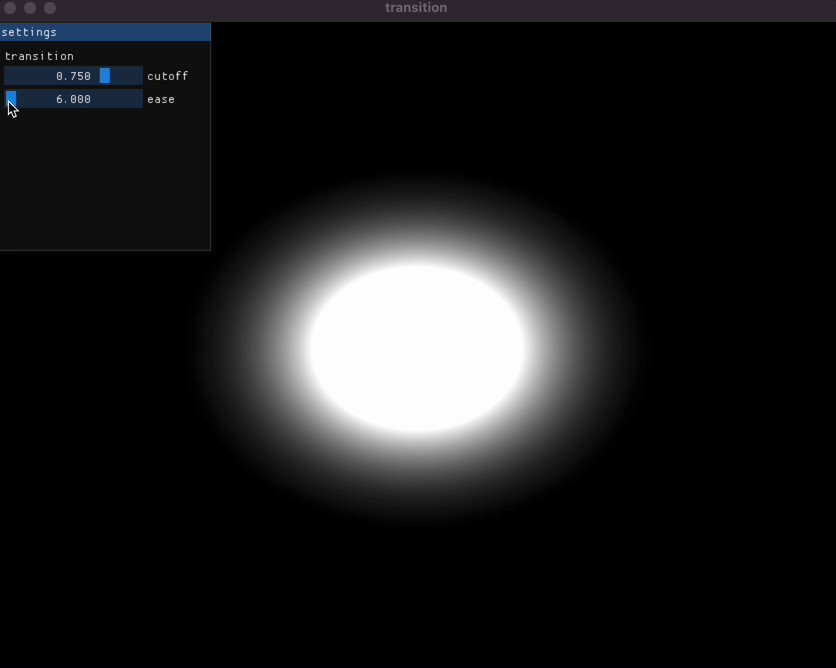

5/ We're going to add one more uniform called `ease` that will control the edges of our circle.

Multiply our old output by ease to get a controlled line quality.

6/ Here's the code before and after adding the ease uniform.

7/ Now we just need to "mix" between the black and our original texture and we've got the basic effect!

NOTE: in HLSL/Unity you would replace "mix" with "lerp" and "clamp" with "saturate".

8/ So we're done, right?

Well, not really. Simple yes, but customizable no. There's a tiny bit more we need to add.

"But we're already at 4 lines, how could you add more? You lied to me!!"

8/ Rather than generating black and white maps from shader code, Pinni uses textures of gradients.

We can draw any crazy transition effect we want and the shader will animate it!

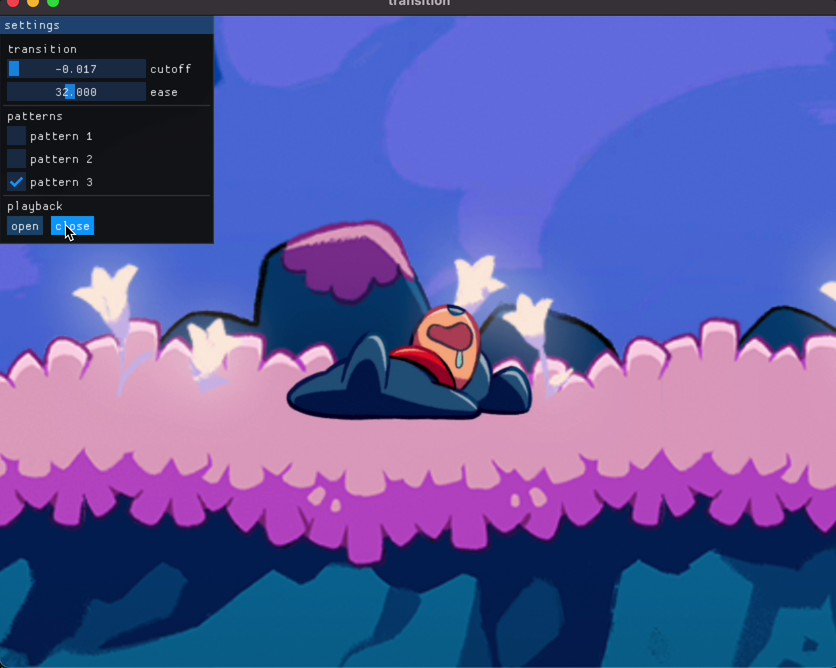

9/ With one simple change and an added uniform called "pattern", we can take textures that look like the images below and turn them into transitions.

BONUS/ Do you want to get REALLY fancy with it?

Replace that "vec4(0.0)" in the mix with whatever color you want. Or, better yet, use a texture for a loading screen!

END ???/ Follow me and wishlist our game on Steam for more stupid simple shaders that look nice :))
