5 Feb, 5 tweets, 3 min read
Renal #POCUS in a #dialysis patient: Looks fine at first glance (thin parenchyma as expected) but fanning anteriorly reveals a large cyst, which would have been missed otherwise. Labeled images and notes in thread 👇
#Nephrology #MedEd #IMPOCUS
Labeled first image #POCUS
Note: peri-renal fat (usually prominent in ESRD patients) can be confused with free fluid.
Labeled second image #POCUS (obtained with phased array probe)
Note: EKG is not needed 😀
CT scan
Brief note on this #POCUS scenario:
nephropocus.com/2021/02/05/a-c…

• • •

Missing some Tweet in this thread? You can try to force a refresh
　

Keep Current with NephroPOCUS

NephroPOCUS Profile picture

Stay in touch and get notified when new unrolls are available from this author!

Read all threads

This Thread may be Removed Anytime!

PDF

Twitter may remove this content at anytime! Save it as PDF for later use!

Try unrolling a thread yourself!

how to unroll video
  1. Follow @ThreadReaderApp to mention us!

  2. From a Twitter thread mention us with a keyword "unroll"
@threadreaderapp unroll

Practice here first or read more on our help page!

More from @NephroP

NephroPOCUS Profile picture
5 Feb
OK #VExUS #POCUS hemodynamicians, welcome back to the case. As promised, here are some follow up images:
@ArgaizR @ThinkingCC @khaycock2 @katiewiskar @Thind888 @MDBeni et al.
Hepatic v. 👇
Looks D-only but could this be S-wave? (or a delayed D? Pt has Afib and predisposed to having smaller S but wondering if there is some S-D fusion here)
Forgot, here is the IVC. Similar to previous.
Read 13 tweets
NephroPOCUS Profile picture
11 Nov 20
#Nephrology consult for worsening creatinine in the context of diuresis in a patient with #heartfailure
Documented weight 3 kg ⬇️ than the previous day. No accurate urine output. Pt feels OK (has some unrelated issue).
Question: over diuresis?
#POCUS #MedEd #VExUS see thread 👇
So, there is decreased LV systolic function and obviously diastolic dysfunction. Bi atrial enlargement. No significant pericardial effusion (there was trace on PLAX).
Next step in the hemodynamic circuit #POCUS assessment?
btw repeat weight was similar.
Next: IVC #POCUS assessment to assess right atrial pressure.
Here it is 👇
Big and plethoric (take it as 15 mmHg in a spontaneously breathing person - we get RVSP of ~41 mmHg based on the above tricuspid gradient)
Read 10 tweets
NephroPOCUS Profile picture
25 Aug 20
#POCUS #IMPOCUS

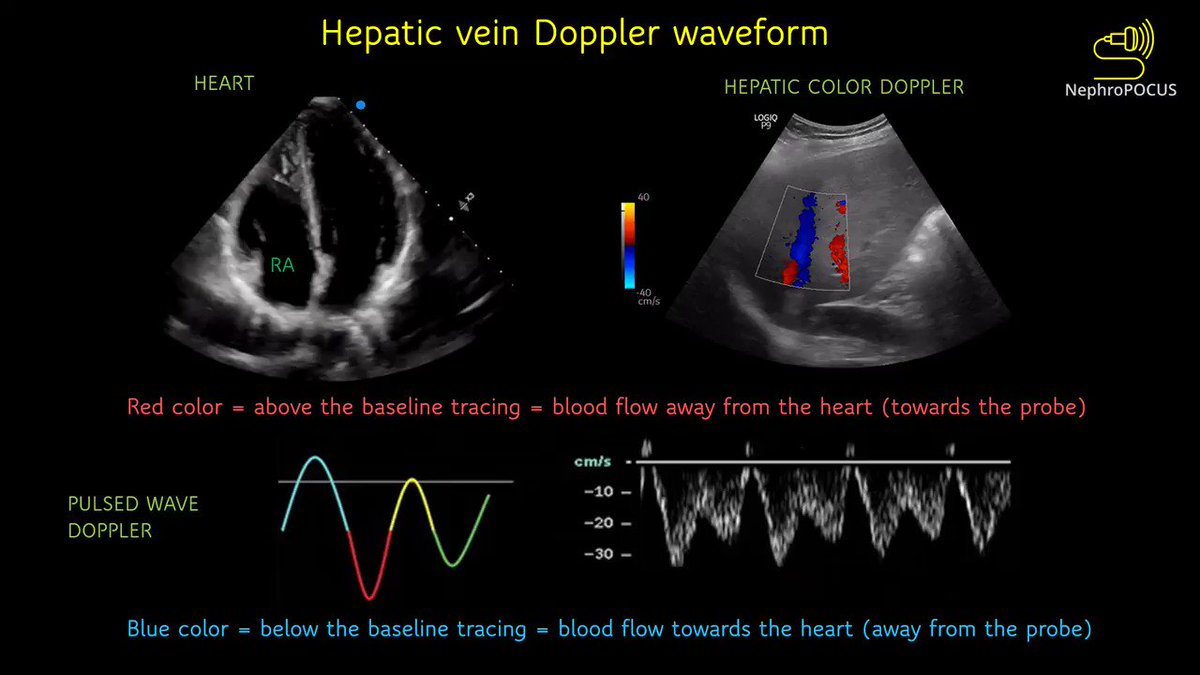

Understanding #VExUS from scratch:
A mini #tweetorial on normal hepatic vein waveform genesis 👇 #MedEd #echofirst

1/ Understanding color and direction
2/ What is S wave? #POCUS
3/ V wave #POCUS
Read 8 tweets
NephroPOCUS Profile picture
18 Aug 20
#POCUS Intra-renal vein Doppler waveform looking exactly like that of hepatic vein!
#VExUS obtained from a #nephrology clinic patient with pulmonary hypertension. #MedEd
Normal hepatic vein waveform #POCUS Image
Portal vein #POCUS in this patient - increased pulsatility. Image
Read 6 tweets
NephroPOCUS Profile picture
11 Jul 20
@Thind888 @FH_Verbrugge @khaycock2 Dear hemodynamic masters, saw a cirrhotic pt with oliguria (relatively preserved Scr) & pulmonary congestion. Based on these findings, suggested norepinephrine (pressors). Agree? any educational input appreciated.
Basically I interpreted as high output cardiac failure with elevated filling pressures leading to pulmonary congestion.
This tracing I believe is right intra-renal 'arterial' with diminished diastolic flow. Correct me if I'm wrong.
Sorry, didn't realize that the scale dropped
Read 4 tweets
NephroPOCUS Profile picture
18 Jun 20
1/ #Nephrology #POCUS case study:
Dr. X is rounding on an ESRD pt who initially presented with dyspnea after missing a dialysis (HD) session; underwent dialysis in the hospital. Pt asymptomatic at the time of exam and lung #ultrasound revealed 👇 Further story in thread #MedEd
2/ Based on the 2-zone lung #POCUS, Dr. X orders for another session of HD. Notably, pt says he is at his 'dry weight' and HD nurse says they could only get 1.5L off during first session. Dr. X doesn't change his/her mind.
Info on various lung scan zones👇
3/ Patient becomes hypotensive during HD and only ~500cc fluid could be removed.
Why can't we get more fluid out of a hypervolemic patient? Dr. X is perplexed and decides to more #POCUS Here is the IVC
Read 16 tweets
