People think a *net energy gain* nuclear fusion experiment is a long way off (as far as the Sun, the nearest fusion reactor). Researching #TheStarBuilders, I discovered extraordinary progress... hold on to your seats for a 🧵on fusion #physics and advances in #fusionenergy! 1/n The Sun, our nearest and de...
What's net energy? It's putting 1 unit of energy into a fusion machine & getting *more* than 1 unit out. Breakeven in energy = same out as was put in. Scientists refer to percentages: 100% for breakeven, >100% for net energy gain. Gain is like a single match lighting a big fire🔥
Why is net energy gain important? It's the first step to developing fusion as a power source. Scientists have been trying since the 1940s, & it’s perhaps the greatest technical challenge humanity has ever taken on. And we *need* cleaner energy.
Now, let’s talk about the advances. Our world in data chart sho...

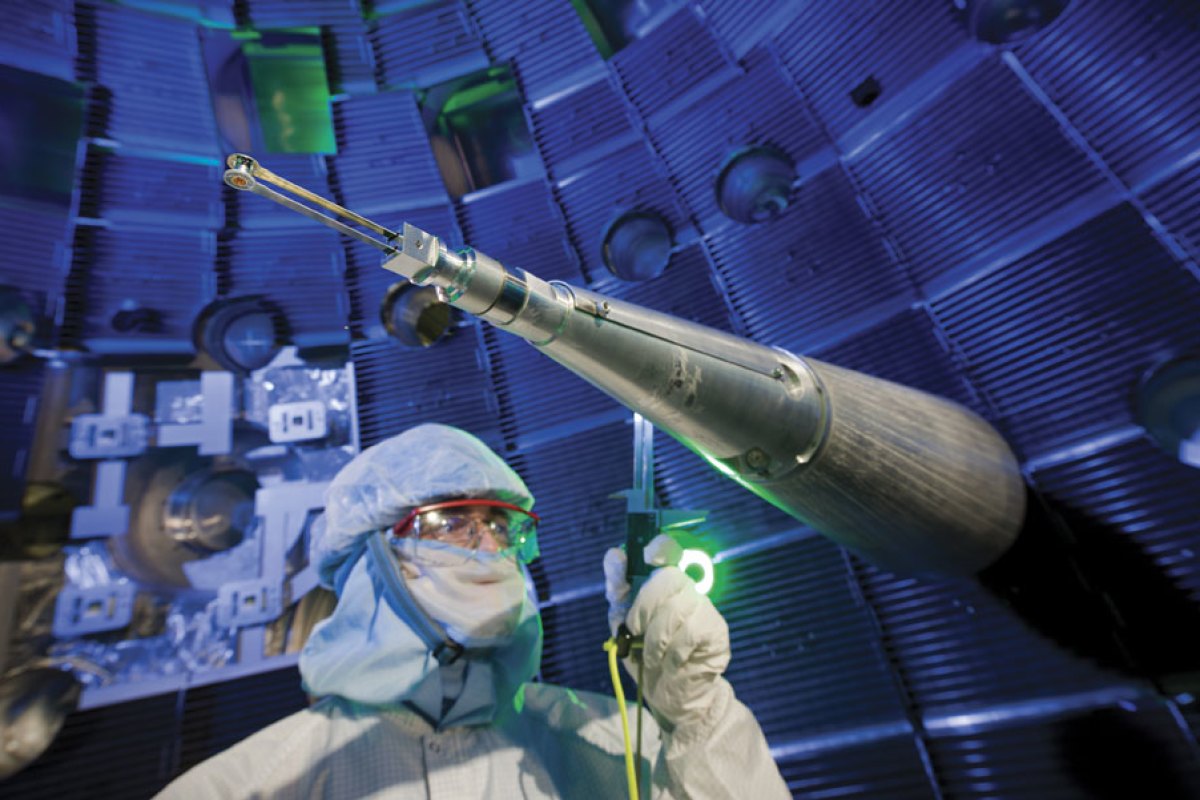

1st, the USA’s laser-based fusion machine (@LLnL) achieved a 60x increase in energy between 2011 & 2018, reaching 3% of breakeven. IMPORTANT: at that rate *they are not very many improvements away from breakeven in energy*. With a bit of finessing, they might just get there first A scientist inspects the ar...
If finessing doesn’t work, they may only need to add a bit of extra juice to the laser. That raises energy in, yes, but it’s likely to raise energy out even more, because laser fusion is like using a match to light a fire; eventually it catches and lots of energy comes out.
Next:

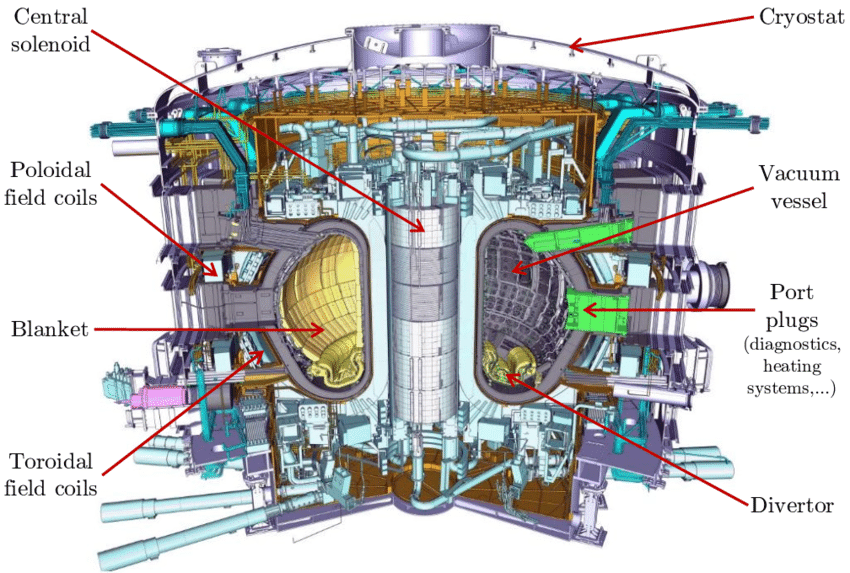

ITER is a magnetic fusion experiment run by a large group of countries, coming 2025. It has the size, scale, & tech to wallop its fuel to 150million degrees! 'Proper' fusion fuel experiments won’t happen till 2035, but expect this behemoth to smash the 100% barrier when they do. Main inner components of th...

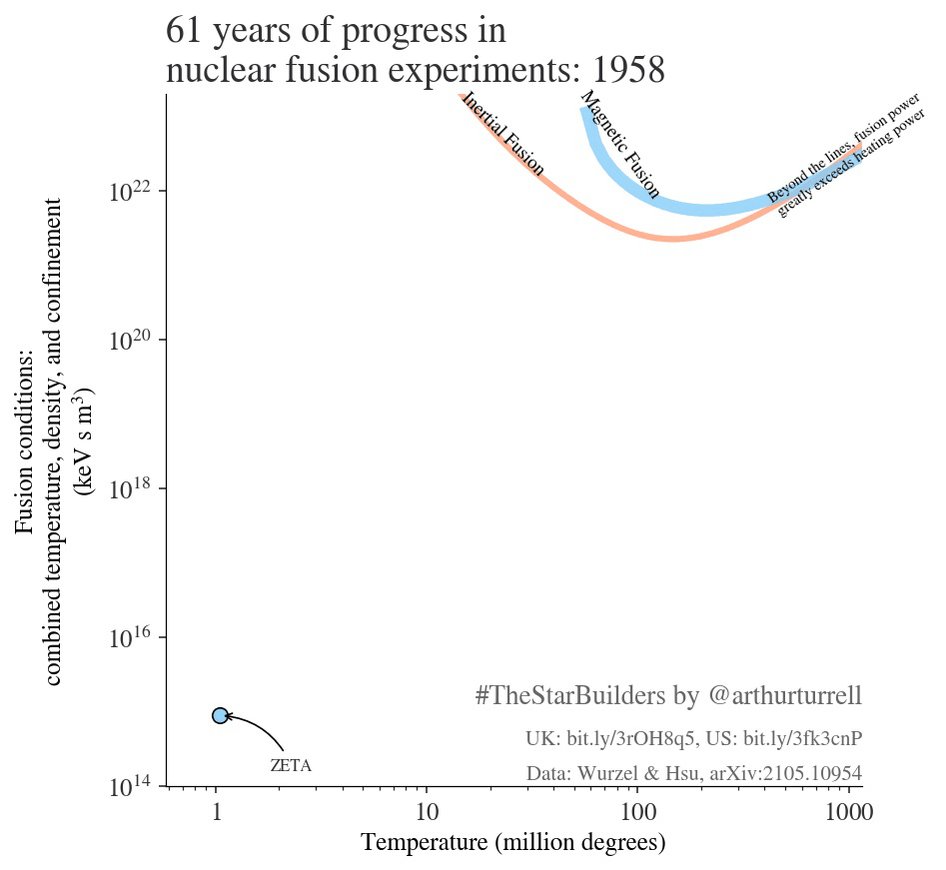

3rd, we’ve come so far and, extrapolating the trends, net energy gain is in sight. This gif shows the progress. Records are broken quite regularly; recently, China’s EAST magnetic fusion machine broke a world record by running with a temperature of 120 million degrees for 101s 🤯

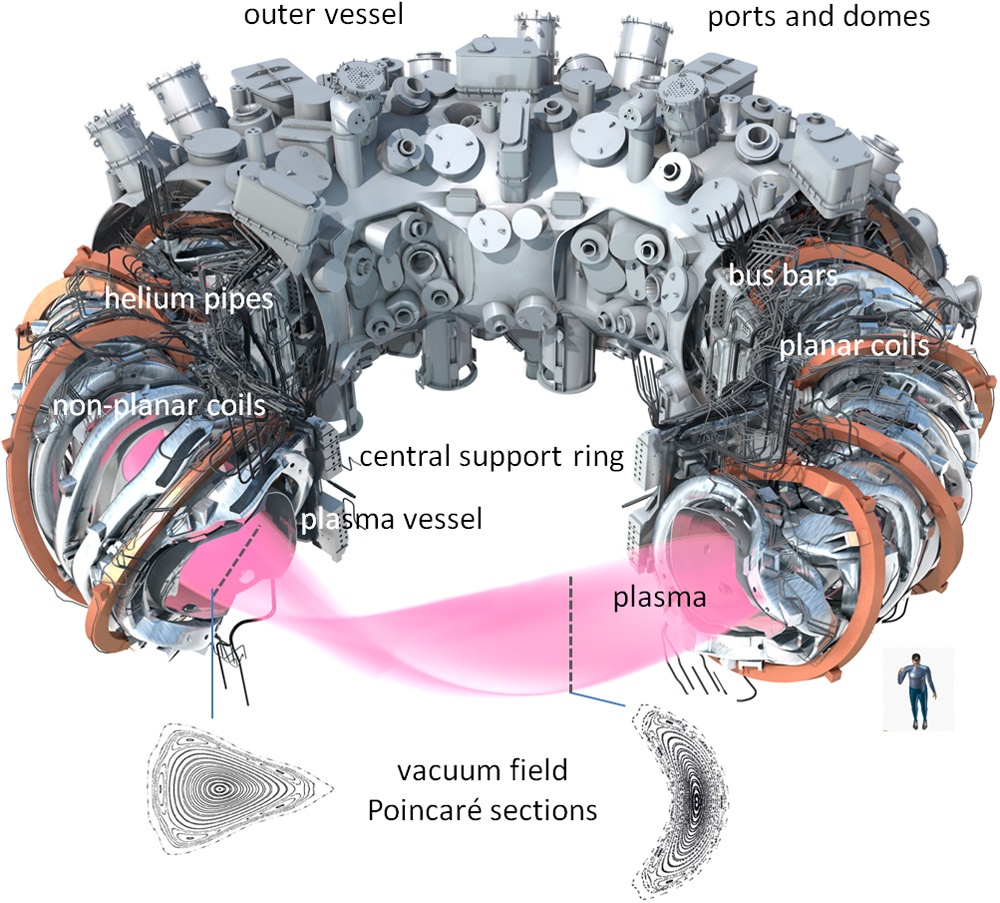

Superconductors, advanced computing, & #machinelearning mean that even old approaches can be improved enormously. A paper in Nature just showed how favourable once-abandoned stellarator technology is: nature.com/articles/s4158…. Clever stats *tripled* energy in a laser experiment! A cut away of the Wendelste...
4th, there is the political will for more fusion, more quickly. In the US, a congressional bipartisan fusion energy caucus, led by @RepDonBeyer, has been set up. The US National Academies (@theNASEM) have argued for more effort on fusion: nationalacademies.org/our-work/a-str… An online meeting of the co...
5th, a private fusion industry has appeared, with ~$2 billion invested according to recently formed @Fusion_Industry association. The entrepreneurs are taking risks on different approaches that might offer short cuts. @CFS_energy was just profiled in NYT: nytimes.com/2021/08/10/tec… Commonwealth Fusion Systems...
CFS are hardly the only ones. There's @FLFusion, @TokamakEnergy, @Helion_Energy, @GeneralFusion, @TAE, and more! The private sector is showing a real interest in nuclear fusion. A shot of the ST40, Tokamak...
So there are *very* good reasons to be optimistic about #nuclear fusion, even if commercialisation is a huge technical challenge. There is enormous progress and a demonstration of net energy gain is closer than you think!

Read more in #TheStarBuilders, simonandschuster.com/books/The-Star…

• • •
