So I’ve spent this evening touring BT Dial House in Manchester. It’s a huge telephone exchange, and brings telephony and Internet access to Manchester. Wanna see some photos and nerd out with me? A thread ... #internet #telephony #infrastructure
This is just one of the marine diesel generators that live in the lowest basement. The site has its own dual redundant HV feed, and operate their own HV/LV transformer kit. They take ~600 litres of oil, and are regularly tested.
To power those, they need a load of fuel. There’s a tank like this for each generator, and they hold enough red diesel for 8 hours. An additional huge set of tanks sit behind which receive fuel deliveries from a tanker connection outside the building.

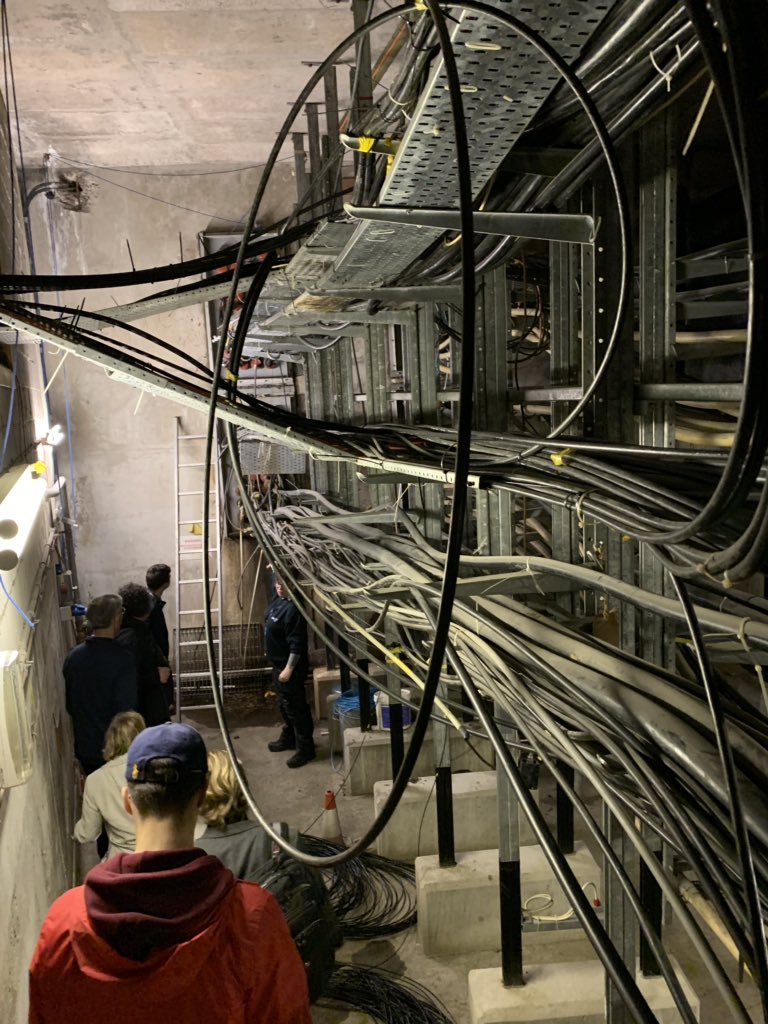

This is where the copper telephone cables and fibre enter the site, from street level. There’s a mix of 1000-pair cables that are pressurised with air to keep out moisture, and fibre cables. They once had a cable tunnel fire and only detected it when fire emerged from the tunnel.
Up a floor. Now those copper cable pairs enter the MDF, a huge frame where the pairs are terminated, connecting to the voice line cards on the next floor above. The frame is split into a distribution side and an exchange side.
Everything is powered by DC power, not AC. Uninterruptible power supplies keep the power grid up, whilst the generators can take up to 5 minutes to start, sync, and take the load. Everything is monitored and tickets are automatically raised, should a fault occur.
These line cards are what generates the dial tone, and interface between the analogue copper cables and the digital processing cards. They listen for DTMF tones from your telephone handset, and decode those to the digits you dialled. Lookup tables decide where to route calls.
Now we’re on to the modern IP network, known as 21CN. These yellow fibre cables range from 100Mbps to 10Gbps. Another rack holds an Alcatel Lucent router that handles 50% of Manchester’s IP traffic. The other 50% is handled in a rack twenty feet away.
And finally, these are the CDN nodes for some very big well known Internet providers. Think video streaming and other high bandwidth users. They install their kit and have direct access to the IP routers downstairs. This reduces the transit cost to transport streaming media.
I love being a Software Engineer, but there’s something so satisfying about physical infrastructure - especially hidden infrastructure that people take for granted. I’ve got some more detailed notes, perhaps I’ll throw a blog post together sometime soon.
