It's the perfect morning for a permafrost twitter-tour!

So what is permafrost? Permafrost is frozen ground that remains in a frozen state for multiple years. But it's way more complicated than that. You can be walking on permafrost & not even know it. Image: C.Buddle, McGill
Here's where it gets complicated. Permafrost is buried under an active layer that freezes/thaws each year. To study permafrost, we have to get deep! This means we can't easily use satellites to help us study permafrost. But we're working on that. Right @NASAEarth @NASA_ABoVE?
Far north, thick permafrost is found everywhere (continuous). We call this climate-driven permafrost. Further south, permafrost is thinner & patchy. We think of this as ecosystem-protected permafrost. What's on the surface matters, like my beloved peat (aka permafrost blanket)!
Permafrost or frozen ground can be made up of a lot of things - frozen rock, sand, soil, etc. often w/ pockets of ice mixed in. If frozen rock thaws, not much changes. But if the ground ice in permafrost melts, that's where things get crazy.
A main message is that the fate of permafrost carbon depends on ground ice. Where ground ice is low, thaw means drier soils & deeper rooting zone -> happy plants. But where ground ice is high, thaw means wetter soils, unstable land, & abrupt change. See: nature.com/articles/d4158…
So what does ground ice look like? When we take a permafrost core from the surface of a field site, we often drill into ice lenses. They can look like this. Image: Miriam Jones @USGS
But here is what ground ice can look in profile form. This image shows a cliff of ground ice! Massive segregated ice exposed in a retrogressive thaw slump in a High Arctic environment [on the Fosheim Peninsula, Ellesmere Island]. Photo credit Toni Lewkowicz.
Check out this ice-rich Yedoma permafrost with huge ice wedges. The ground ice forms a massive ice wall on the coast of the Dmitri-Laptev-Strait in NE Siberia. Person for scale! Image by Guido Grosse.
We can map areas that are less prone to abrupt permafrost thaw, Here is an image of carbon-poor soils in a mountainous permafrost landscape in eastern Greenland with limited segregated ice or signs of thermokarst. Gradual thaw likely to dominate here. Photo by Gustaf Hugelius
And vice versa, we can map areas that are likely to experience abrupt thaw, such as this coastal exposure of ice-rich Yedoma permafrost on the Baldwin Peninsula in NW Alaska. Image by Guido Gross and check out Jens Strauss hiding in the photo for scale!
All of this information led us to focus a synthesis study on abrupt permafrost thaw. This was a study I led with @DavidOlefeldt, @thermokarst, @cdkoven @CarolynG_22 @tedschuur et al. as part of the Permafrost Carbon Network. Check us out at permafrostcarbon.org
What do we know? We know that gradual permafrost thaw affects cm of permafrost over decades. Abrupt thaw affects meters of soil/sediment in months to years. Check out this wild video showing a thaw-induced landslide in action.
After watching the video above, it's easy to understand how abrupt permafrost thaw can have huge consequences for water quality, fishing grounds, and river travel. Check out this image of a thaw slump affecting waters in the Northwest Territories, Canada. Image by @CarolynG_22

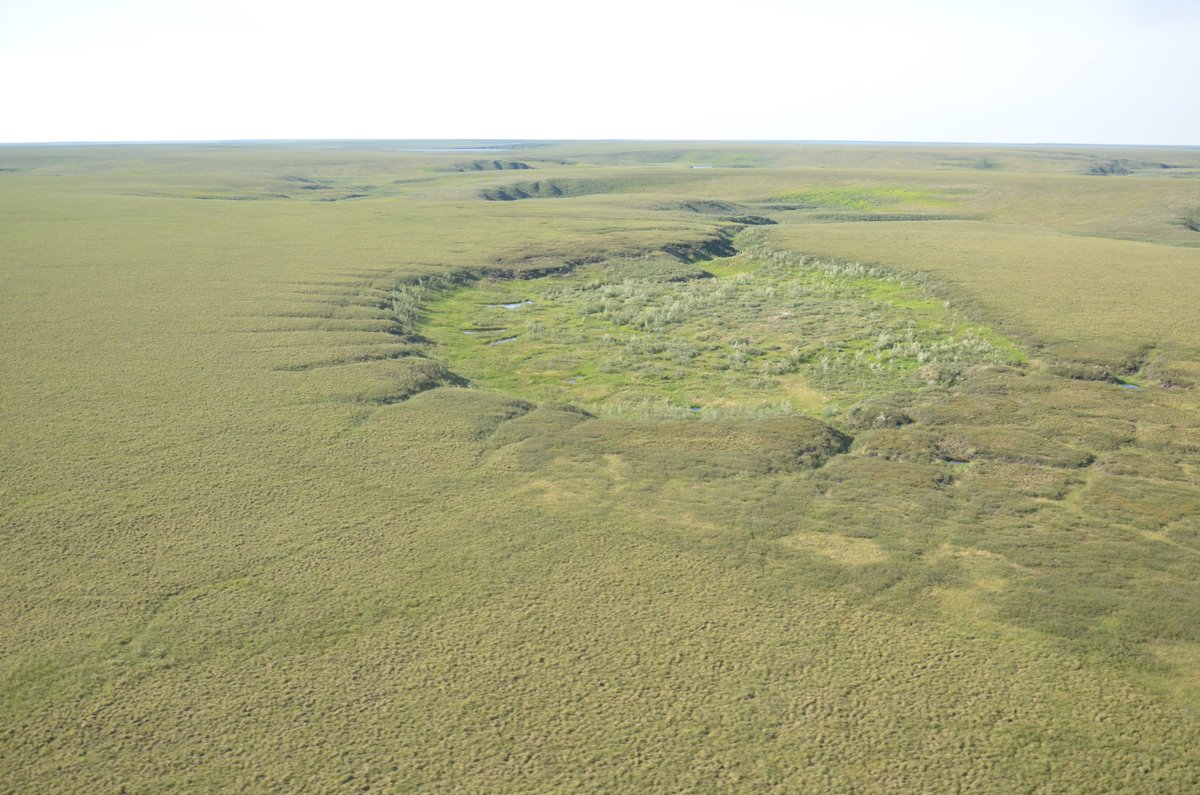

In hills & mountains, abrupt thaw means landslides & erosion. L top- gully in N Alaska (@thermokarst); L bottom- detachment slide on Ellesmere Isle 🇨🇦 (T. Lewkowicz). R top- thaw slump on Herschel Isle 🇨🇦 (G. Hugelius); R bottom- thaw slump near Mackenzie River NWT (@CarolynG_22)
Check out this video of a mega-slump in the Peel Plateau of the Northwest Territories 🇨🇦. These are HUGE features created by abrupt thaw and mass movement of soil/sediment, and you can literally see the erosion in action in this video.
This video is a time lapse compiled by the @GNWT_ITI (NTGS). Watch how the mud/debris flows speed up over time, eventually breaching & draining the lake. Rumour is that this thaw slump was discovered through local Indigenous knowledge, helping scientists!
In flat poorly drained areas, abrupt thaw creates lakes or wetlands. I ❤️ peat, so let's start with thaw wetlands! Permafrost peatlands are dry enough to support forests. The trees might be stunted & old, but they are survivors. I think black spruce should be 🇨🇦 national tree!
Here is what happens to our field sites when permafrost thaws in these peatlands. Lots of thaw in ice-rich permafrost means surface subsidence, drunken forests (trees tipping over) and eventually death of the trees. We call these features "collapse scar wetlands".
Look at what I just found @NASA_ABoVE @NASA! This shows some nice shots of drunken forests, subsidence with abrupt thaw, and an overview of what NASA's newest northern campaign is hoping to achieve.

And here is what abrupt permafrost thaw does to wetland regions from a bird's eye view. Large patches of relatively dry permafrost peatland become scarred by these very wet thaw features, which ultimately join together and influence water flows at larger scales
Collapse scar wetlands are warm, wet produce a lot of methane. Methane is a stronger greenhouse gas than CO2, so we need to understand how permafrost C is released as CO2 vs methane. However, these wetlands become home to mosses that grow quickly & take carbon up from the air.
Personal rant If you think I am enthusiastic about peat, wait until you see me talk about Sphagnum moss! Back to permafrost.....

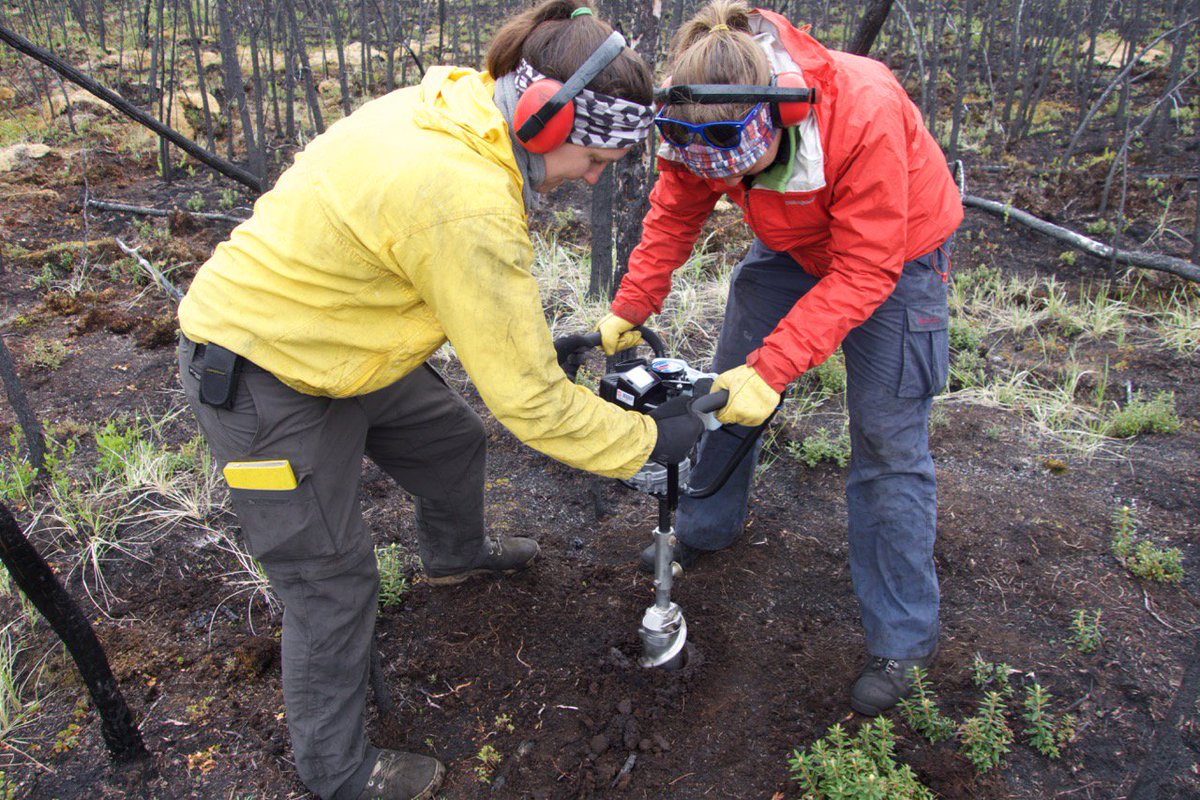

@forestecogrp and I are working on a number of issues related to 🔥 and permafrost thaw in the Northwest Territories. Here is a video of us doing some field detective work in a collapse scar wetland.
Lots left to learn in these ecosystems. But we know this - lichens love to grow in permafrost peatlands & caribou love to eat lichens. So permafrost thaw is ☹️ news for lichens, caribou, & country foods that sustain northern communities. Image: @ge_d_timmons @NWF_Research

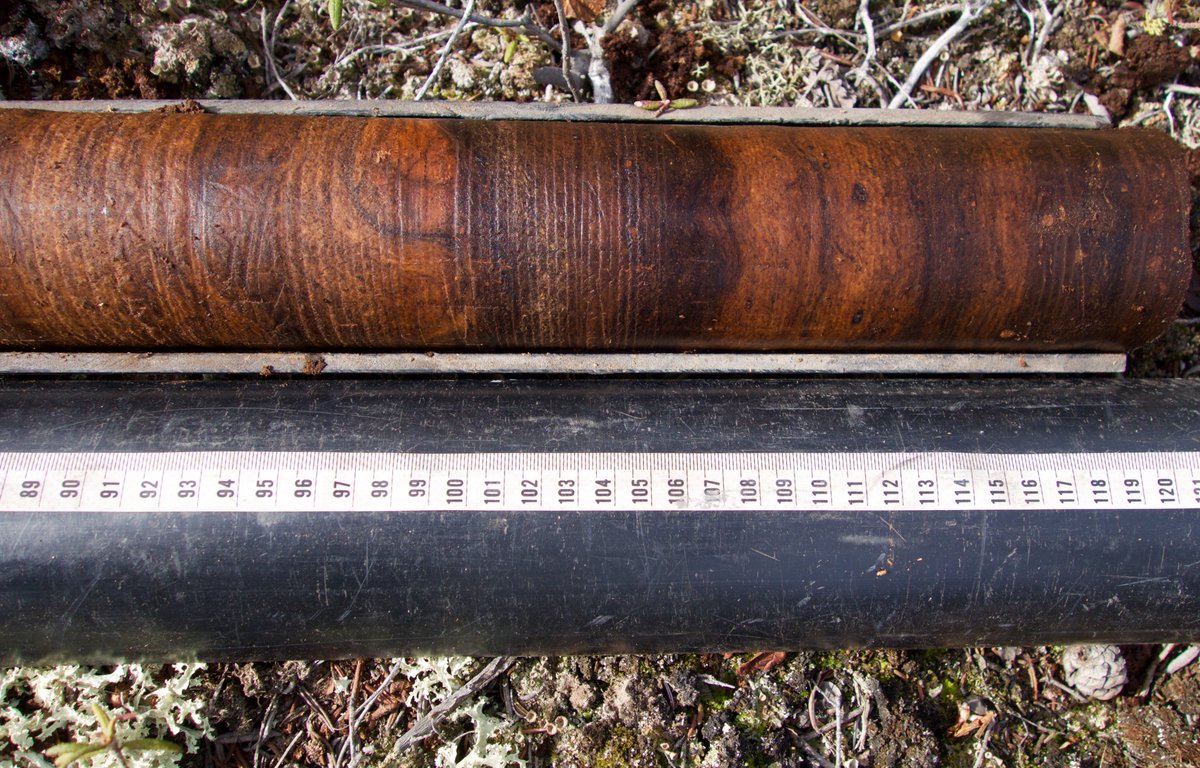

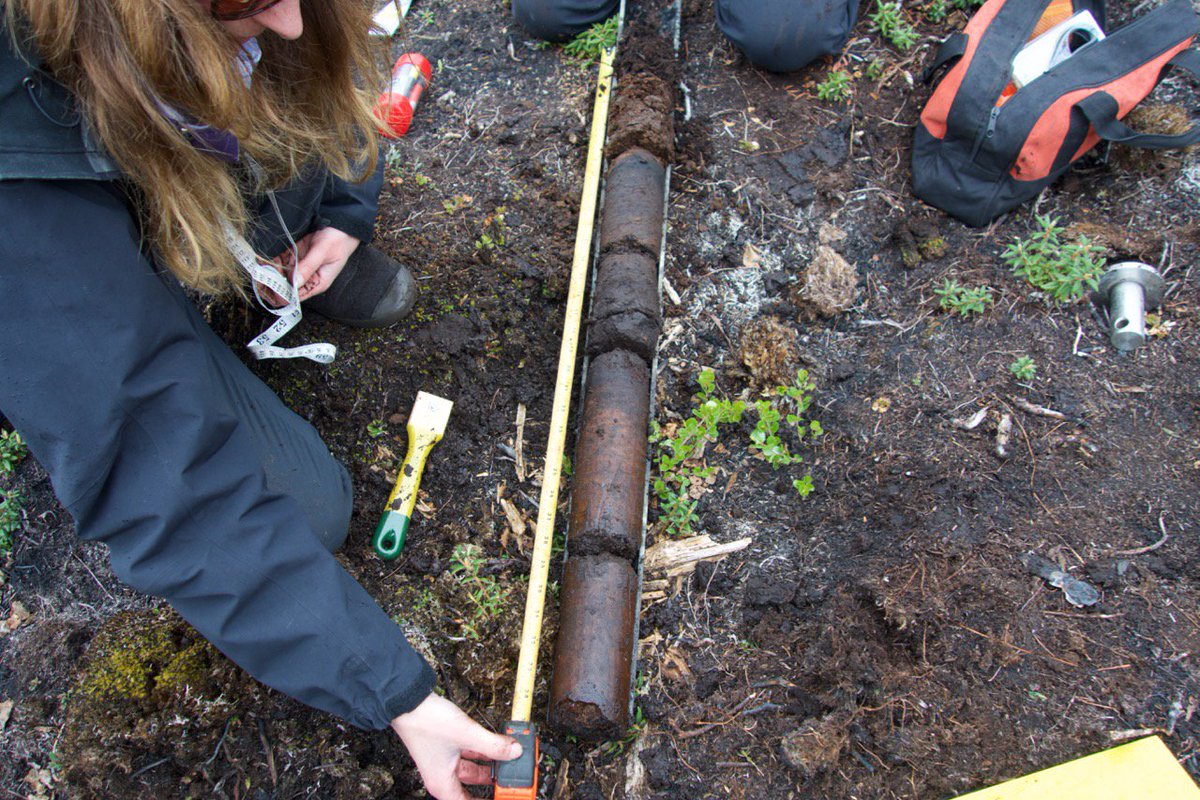

Last comment- it's really fun to sample permafrost peatlands! Look at those beautiful samples. They are largely derived from wood, again reflecting the forested history. Sampling in collapse scar wetlands is really really tough. One part peat sampling, equal parts limnology.
Next - onto abrupt thaw that forms thaw lakes. I intentionally saved this for last, and only because these are the systems that have up until now received the most scientific attention in terms of permafrost carbon release. Image: @DavidOlefeldt
Thaw lakes form similar to thaw wetlands, in flat regions with poor soil drainage. Thaw lakes can become wetlands over time! This is an image of a thaw lake forming in peat-rich soils, and in a decade or so this surely will be covered by wetland plants. Image: Britta Sannel
This raises an important point. We can't project carbon release from permafrost thaw unless we account for ecological succession, including loss with initial disturbance but also ecosystem recovery over time. We did this here: nature.com/articles/d4158…
Thaw lakes are the dominant outcome of abrupt thaw in flat areas with lots of mineral soils. This includes Yedoma regions, which are very carbon rich! Image of growing thermokarst lakes on the Seward Penninsula by Guido Grosse
Thaw lakes are hotspots of permafrost carbon release. This is bad news for climate in two key ways. First, we are talking about the release of old carbon. Carbon that the atmosphere has not seen in millennia. In contrast, 🔥 releases largely modern carbon.
Second bad news for climate. Thaw lakes release mostly methane. It's produced at depth, and bubbles to the surface and into air. As mentioned above, methane is more powerful as a greenhouse gas than CO2. Image of methane bubbles trapped in ice: Katey Walter Anthony @uafairbanks
OK, thaw lake researchers have their own fun.... Check it out!
Thaw lakes remain large sources of methane for 100's of years, but they eventually drain. Drained thaw lakes look like this one west of the Colville River Delta, Alaska. Image: Ben Jones, @uafairbanks
And drained thaw lake basins eventually are colonized by new plants! And that can lead to the accumulation of a new peat layer, taking carbon out of the air. Image from the Yedoma region near Oumalik, Alaska; Ben Jones.
At a bigger scale, there are many Arctic regions that are mosaics of new thaw lakes, old thaw lakes, and drained thaw lake basins. Look at this amazing landscape south of Utqiaġvik Alaska.
Our study confirms that thaw lakes are an important source of permafrost C release as methane. Surprising however is that hillslope abrupt thaw features are a large source of CO2. All types of abrupt thaw eventually stabilize and start to reaccumulate carbon, at least for now.
This thread has focused on the issues we needed to address in our recent paper. But permafrost is important to so much more. The built environment? Google "permafrost thaw and infrastructure damage". Roads, homes, energy, waste containment. All vulnerable with thaw.
You never know what we will find buried in permafrost, and what we can learn as a result. Check out this amazing compilation of ice age animals preserved in permafrost.
As permafrost thaws, land once considered forever stable is changing. Traplines, culturally important areas, gathering places - all used for generations - are being disturbed, destroyed, or can no longer be reached.
Permafrost thaw is a critical local issue because it affects communities. It is an important regional issue because it is affecting northern governments, and it is an important national issue because it affects 🇨🇦 identity. Permafrost affects most of 🇨🇦, and binds it together.
The incredible 🇨🇦 diplomat Sheila Watt-Cloutier titled her book, "The Right to be Cold". This right underpins all northern ways of life. Without frozen ground, the Arctic will lose its identify as we know it. View this must read here: penguinrandomhouse.ca/books/417373/t…
While many know how important permafrost is to a variety of issues, it's a challenge because so few people live near permafrost. It is easy to think of the Arctic as worlds away. I hope this thread is helpful - please talk about permafrost to your friends and loved ones!
